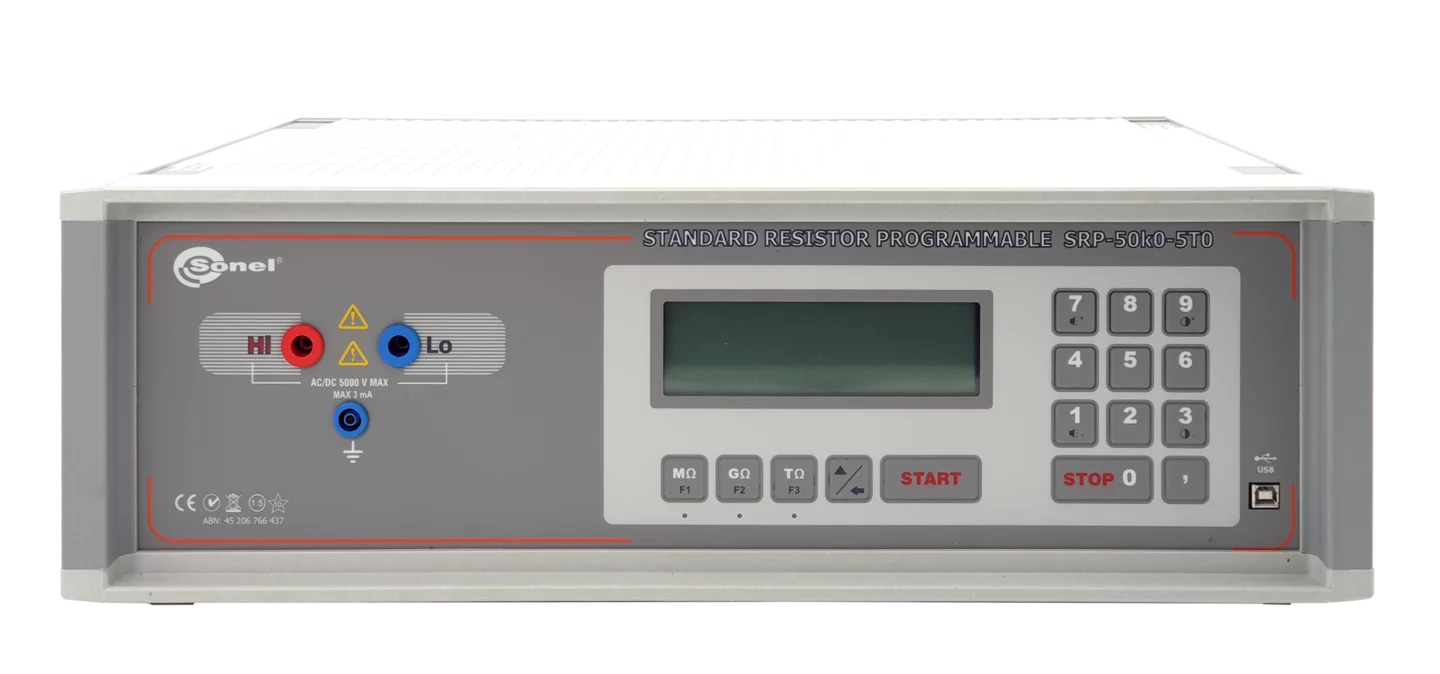

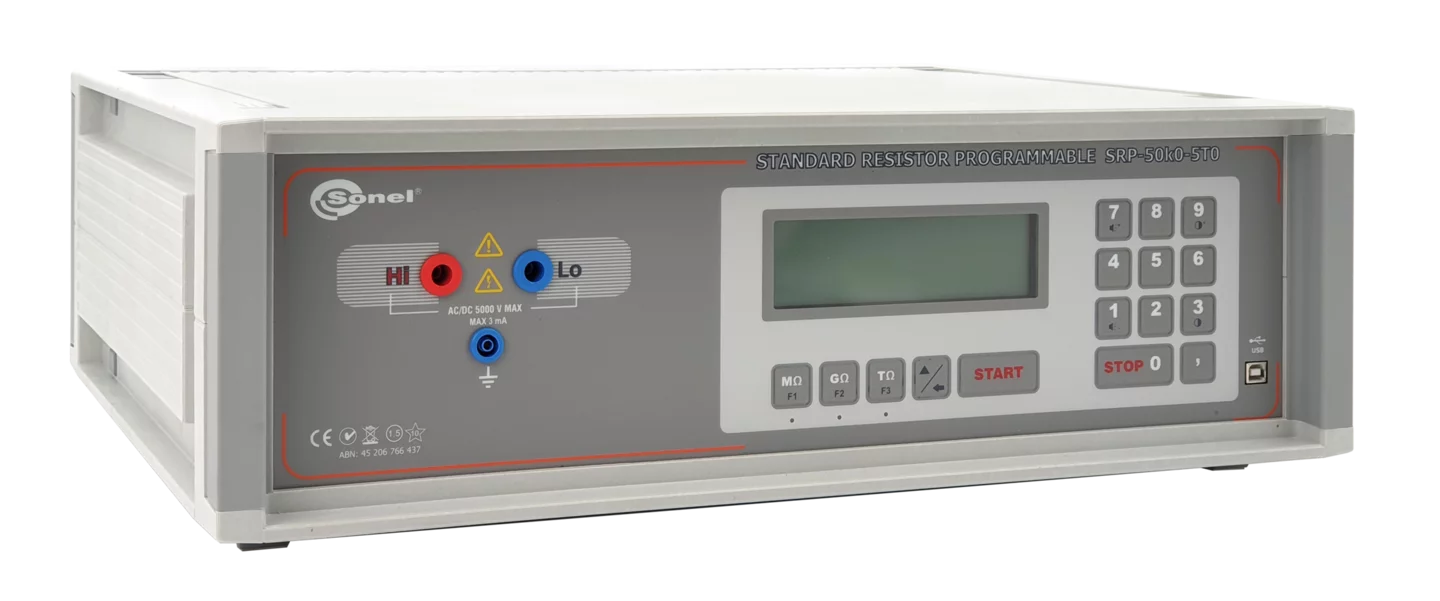

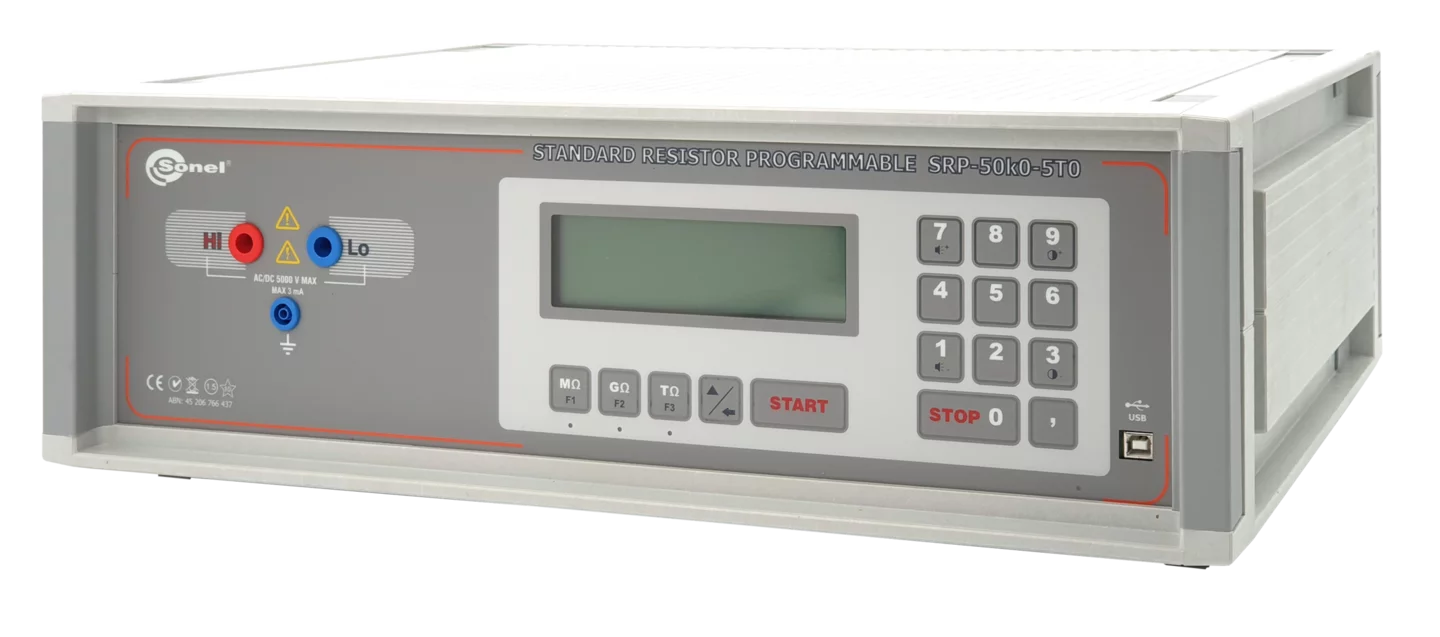

SRP-50k0-5T0
Standard programmable resistor
Index cat. WMGBSRP50K05T0
ean 5907624005440
The SRP-50k0-5T0 standard programmable resistor is a source of high resistances used as standard equipment for calibration and testing of analog and digital insulation resistance meters.
The resistance obtained thanks to this resistor can be kept for a long time under external direct voltage up to 5000 V.
The required resistance is set by the user by means of the standard resistor’s keypad and PC application SRP Control Software. Setting of the required value is automatic thanks to commutation of a precision resistance matrix. The control processor calculates the required combination of resistors providing the proper precision of the resultant resistance.
SRP calibration software
The SRP Control Software application serves for inter-operation between SRP-50k0-5T0 resistance calibrator and a computer. The calibrator connects to a computer via USB port.
The application is easy to use and a useful tool in the process of testing devices by means of a calibrator.
Capabilities of the application:
| Measurement functions | Display range | Resolution | Accuracy |
|---|---|---|---|
| Resistance | 50 kΩ...5.0000 TΩ | from 0.05 MΩ | 1.5% s.v. |
s.v.- set value
Other technical specifications:
