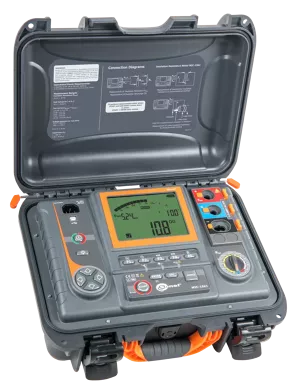

MIC-15K1
Insulation Quality Analyzer
Index cat. WMGBMIC15K1
Ingress protection: IP 67
Measurement category: CAT IV 1000 V
Data transmission: USB, bluetooth
Display: monochrome, backlit, segmented
₹13,75,455.00
Available
Delivery: up to 36 days
0
Login
Insulation resistance meters
34 products
Filters
Price
Charging
Cooperation with wireless keyboard
Data transmission
Display
Ingress protection
Measurement category
Memory
Mobile app
Power supply
34 products

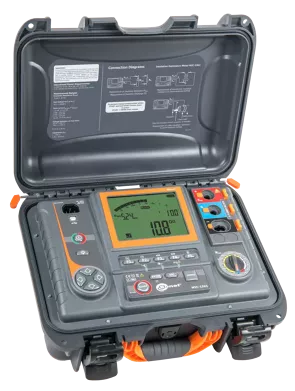

MIC-15K1
Insulation Quality Analyzer
Index cat. WMGBMIC15K15
Ingress protection: IP 67
Measurement category: CAT IV 1000 V
Data transmission: USB, bluetooth
Display: monochrome, backlit, segmented
₹14,24,024.00
Available
Delivery: up to 36 days
MIC-10K1
Insulation Resistance Meter
Index cat. WMGBMIC10K105
Ingress protection: IP 67
Measurement category: CAT III 1000 V, CAT IV 600 V
Data transmission: USB, bluetooth
Display: graphic, monochrome, backlit
₹9,20,825.00
Available
Delivery: up to 6 days
MIC-10K1
Insulation Resistance Meter
Index cat. WMGBMIC10K115
Ingress protection: IP 67
Measurement category: CAT III 1000 V, CAT IV 600 V
Data transmission: USB, bluetooth
Display: graphic, monochrome, backlit
₹10,34,317.00
Available
Delivery: up to 13 days

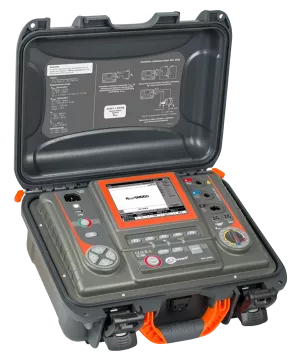

MIC-5050
Insulation Resistance Meter
Index cat. WMGBMIC5050
Ingress protection: IP 67
Measurement category: CAT III 1000 V, CAT IV 600 V
Data transmission: USB, bluetooth
Display: graphic, monochrome, backlit
₹6,96,648.00
Available
Delivery: up to 6 days
MIC-5050 5M
Insulation Resistance Meter
Index cat. WMGBMIC50505M
Ingress protection: IP 67
Measurement category: CAT III 1000 V, CAT IV 600 V
Data transmission: USB, bluetooth
Display: graphic, monochrome, backlit
₹7,52,486.00
Available
Delivery: up to 13 days
MIC-5050 15M
Insulation Resistance Meter
Index cat. WMGBMIC505015M
Insulation resistance measurement: up to 20 TΩ,
- measurement voltage any in the range of: 50...5000 V (50...1000 V at 10 V and 1...5 kV at 25 V),
- continuous indication of measured insulation resistance or leakage current,
- automatic discharge of measured object capacitance voltage after the end of insulation resistance measurement,
- acoustic signaling of 5 seconds intervals to facilitate capturing time characteristics,
- adjustable measuring time to 99'59'’,
- metered T1, T2 and T3 test times for measuring one or two absorption coefficients from the range of 1…600 s,
- polarization index (PI), absorption coefficients Ab1, Ab2 and dielectric absorption ratio (DAR) measurement,
- indication of actual test voltage during measurement,
- 1.2 mA, 3 mA and 6 mA+/-15% test current,
- insulation resistance measurement using two- or three-wire method,
- measurements with test leads up to 20 m...
- protection against measuring live objects,
- automatic measurement of multiple core cables with the additional AutoISO-5000 adapter
- measurement of capacitance during the measurement of RISO.
- measurement of temperature (with additional probe - WASONT1),
- step voltage insulation resistance measurement (SV),
- Dielectric Discharge calculation (DD),
- location of damage (burnout),
Digital filters function for measurements in high noise environment.
Measurement of leakage current during insulation resistance testing.
DC and AC voltage measurement in the range of 0...1500 V.
Drawing graphs on the display during measurement.
Innovative memory with possibility of description of: measurement points, facilities, names of customers.
Operating with mini Bluetooth keyboard (option).
Graphic LCD 5,6'’ backlit.
Keyboard backlit.
Power supply from main power line or battery packs.
Built-in fast charger.
The instruments meet the requirements of the EN 61557 standard.
Ingress protection: IP 67
Measurement category: CAT III 1000 V, CAT IV 600 V
Data transmission: USB, bluetooth
Display: graphic, monochrome, backlit
₹8,94,228.00
Available
Delivery: up to 13 days
MIC-5050 20M
Insulation Resistance Meter
Index cat. WMGBMIC505020M
Insulation resistance measurement: up to 20 TΩ,
- measurement voltage any in the range of: 50...5000 V (50...1000 V at 10 V and 1...5 kV at 25 V),
- continuous indication of measured insulation resistance or leakage current,
- automatic discharge of measured object capacitance voltage after the end of insulation resistance measurement,
- acoustic signaling of 5 seconds intervals to facilitate capturing time characteristics,
- adjustable measuring time to 99'59'’,
- metered T1, T2 and T3 test times for measuring one or two absorption coefficients from the range of 1…600 s,
- polarization index (PI), absorption coefficients Ab1, Ab2 and dielectric absorption ratio (DAR) measurement,
- indication of actual test voltage during measurement,
- 1.2 mA, 3 mA and 6 mA+/-15% test current,
- insulation resistance measurement using two- or three-wire method,
- measurements with test leads up to 20 m...
- protection against measuring live objects,
- automatic measurement of multiple core cables with the additional AutoISO-5000 adapter
- measurement of capacitance during the measurement of RISO.
- measurement of temperature (with additional probe - WASONT1),
- step voltage insulation resistance measurement (SV),
- Dielectric Discharge calculation (DD),
- location of damage (burnout),
Digital filters function for measurements in high noise environment.
Measurement of leakage current during insulation resistance testing.
DC and AC voltage measurement in the range of 0...1500 V.
Drawing graphs on the display during measurement.
Innovative memory with possibility of description of: measurement points, facilities, names of customers.
Operating with mini Bluetooth keyboard (option).
Graphic LCD 5,6'’ backlit.
Keyboard backlit.
Power supply from main power line or battery packs.
Built-in fast charger.
The instruments meet the requirements of the EN 61557 standard.
Ingress protection: IP 67
Measurement category: CAT III 1000 V, CAT IV 600 V
Data transmission: USB, bluetooth
Display: graphic, monochrome, backlit
₹10,01,608.00
Available
Delivery: up to 13 days

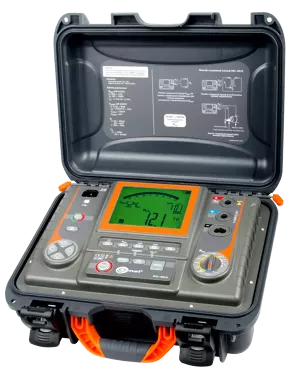

MIC-5010 5M
Insulation resistance meter
Index cat. WMGBMIC50105M
Ingress protection: IP 67
Measurement category: CAT III 1000 V, CAT IV 600 V
Data transmission: USB, bluetooth
Display: monochrome, backlit, segmented
₹5,73,740.00
Available
Delivery: up to 6 days
MIC-5010 10M
Insulation resistance meter
Index cat. WMGBMIC501010M
Ingress protection: IP 67
Measurement category: CAT III 1000 V, CAT IV 600 V
Data transmission: USB, bluetooth
Display: monochrome, backlit, segmented
₹6,31,229.00
Available
Delivery: up to 6 days
Insulation resistance meters
Electric power services that take care of the proper condition of electrical insulating materials require tools that enable a comprehensive diagnosis of such objects as, for example, single- and multi-core cables, transformers, motors, generators, capacitors, switches, etc. insulation resistance. In this category, we have a wide selection of meters with various parameters that are necessary even for simple electrical works.Sonel insulation resistance meters
Sonel insulation resistance meters are appreciated among specialists in the power industry due to their numerous functions, multiple measurement options and effective operation even at high noise levels. Thanks to their excellent immunity to interference, the most advanced Sonel meters work well even when working in the vicinity of high voltage transmission lines.
The meters developed by Sonel are equipped with a number of functions, thanks to which they fully meet the needs of the electrical industry. These well-thought-out devices offer many measurement possibilities, including the measurement of insulation resistance using the two- and three-wire method, measurement of direct and alternating voltages in a wide range, as well as the measurement of insulation resistance using the RampTest method. Due to the low power consumption, the meters enable long-term and uninterrupted operation.
Numerous applications of Sonel professional insulation meters
Depending on the model, professional Sonel insulation resistance meters are used, among others, in measuring insulation resistance in domestic and industrial installations, in devices, pre-insulated pipes, motors and generators, in capacitors, as well as in many other power facilities. Their reliable work is appreciated, among others, by installers of telecommunications and electricity networks, representatives of maintenance services, people testing engines, cables and street lighting, as well as installers and maintenance of photovoltaic installations.Specialized meters with advanced capabilities
The Sonel company has been synonymous with reliability and innovative technologies for many years. Thus, it is a model for competing producers. In order to meet the requirements of its customers, Sonel is constantly working on new solutions and refining its products, adapting them to the needs of the changing market.The Sonel.in store can boast a wide range of Sonel products, intended for real professionals operating in the electrical industry, in the energy sector, in maintenance services or in the industrial sector. See the full Sonel offer available in our store!
