| Parameter | Description |
|---|---|
| Ingress protection | IP65 |
| Power supply | Li-ion 3.6 V 6.7 Ah rechargeable battery |
| Operating temperature | -10…+50°C |
| Storage temperature | -20…+60°C |
| Nominal temperature | 23 ± 2°C |
| Relative humidity | 20...90% |
0
Login

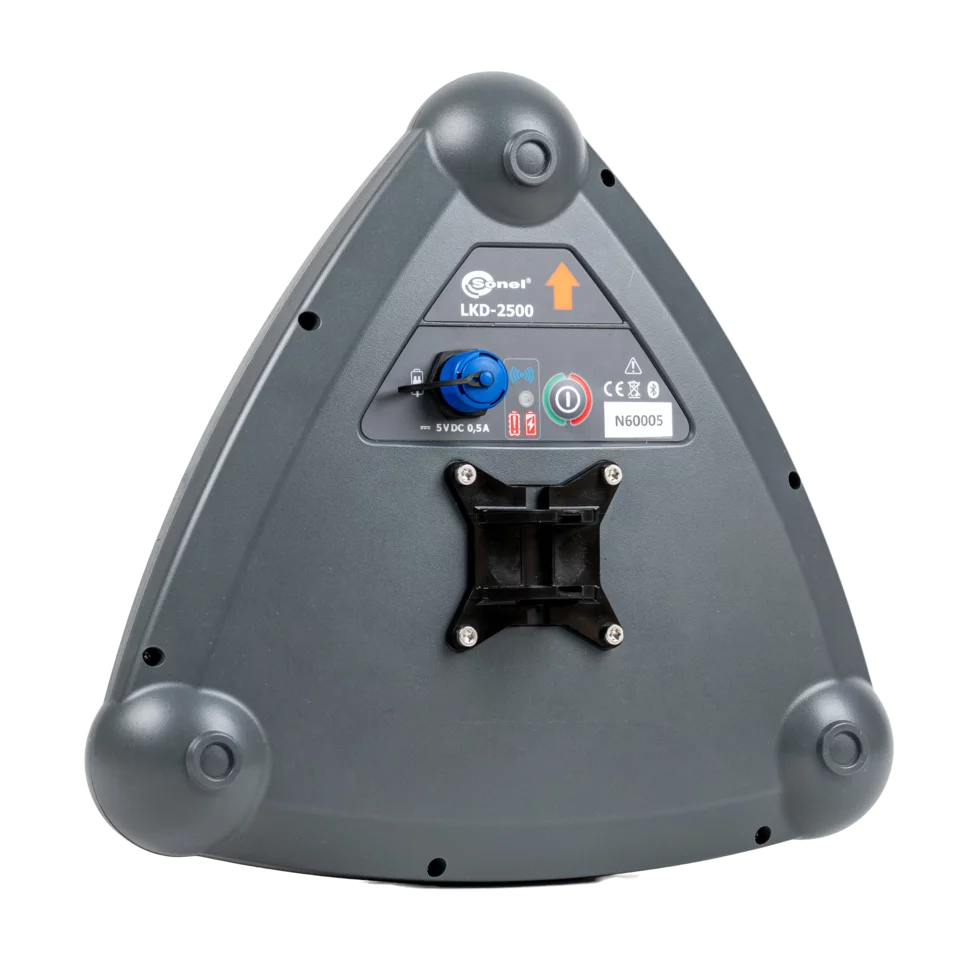

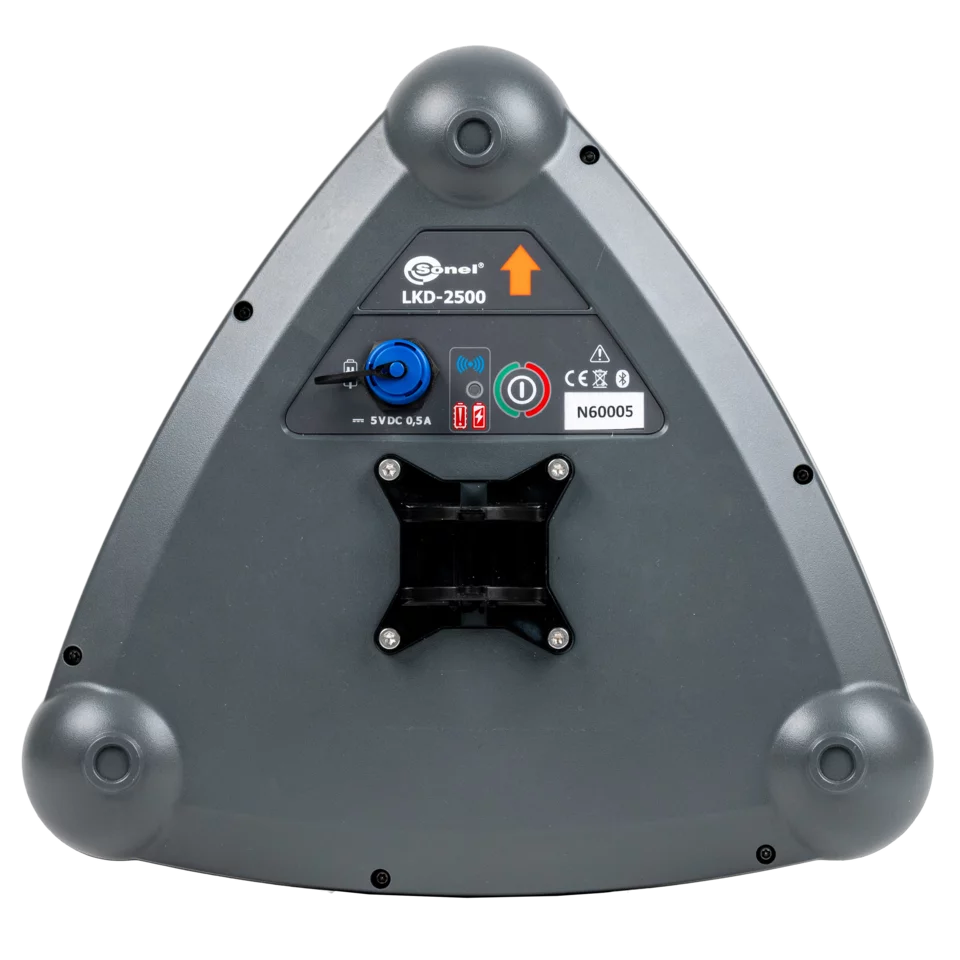

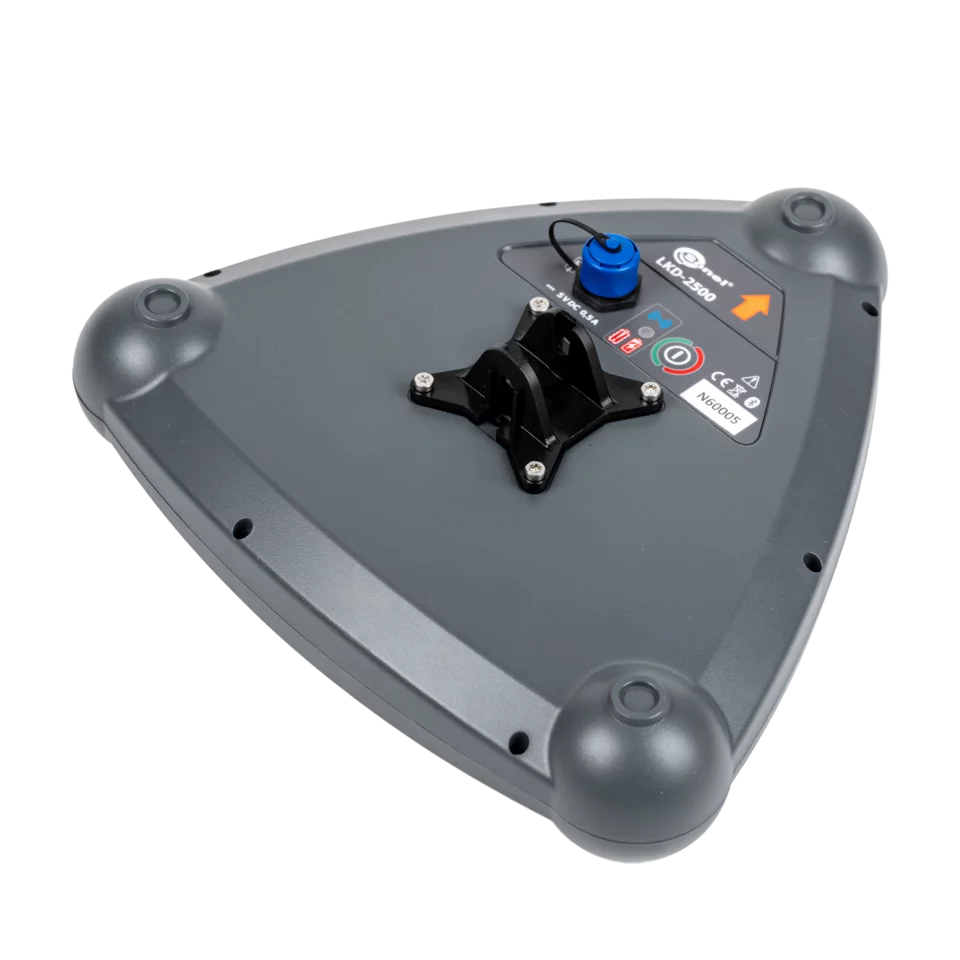

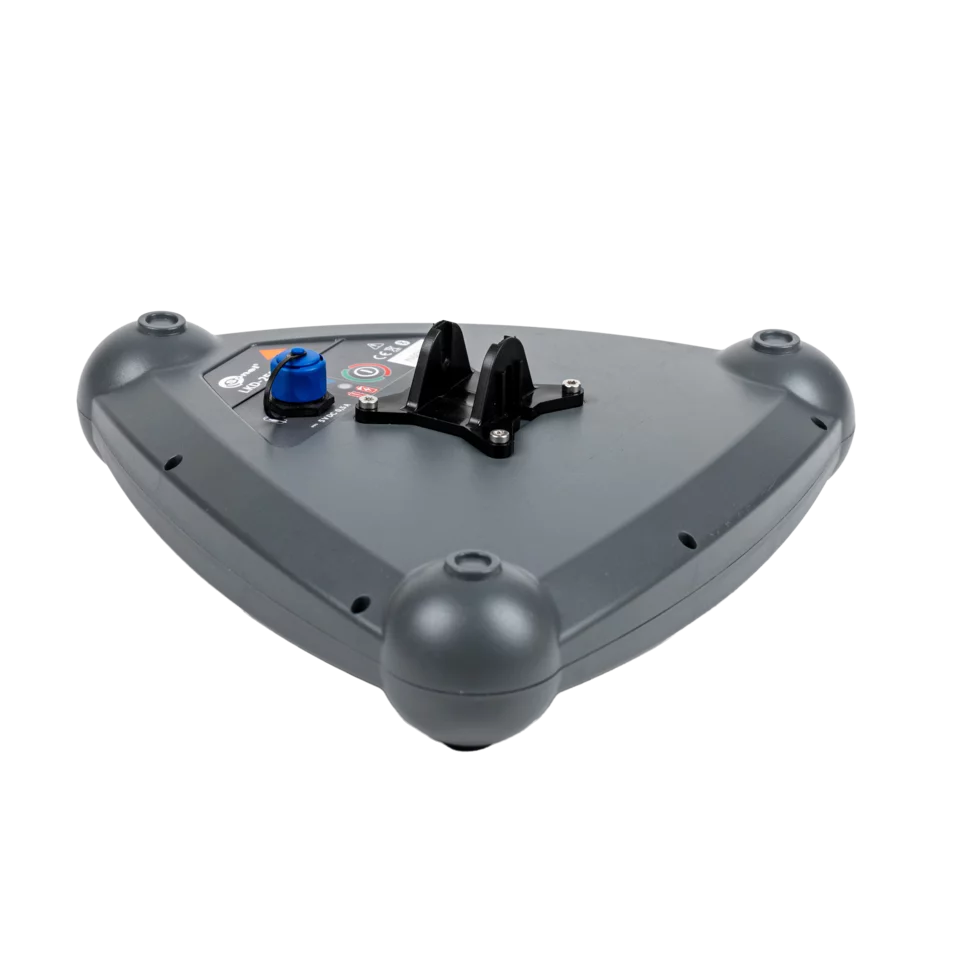

The information about position of the traced object is displayed on the Sonel LKZ Mobile app which is connected with the detector.
The system is capable of operating in passive mode (without the use of the LKN-2500 transmitter) and active mode (with the use of the LKN-2500 transmitter).
- Active mode
- work with LKN-2500 transmitter at the frequencies of 8 kHz, 32 kHz (Signal mode)
- Passive mode – work at the frequencies of:
- 50 Hz, 60 Hz (Power mode)
- 2...65 kHz (Radio mode)
| Parameter | Value |
|---|---|
| Net weight (kg) | 1.1 |
| Package weight (kg) | 1.1 |
| Package width (cm) | 13.5 |
| Package height (cm) | 35 |
| Package length (cm) | 42.5 |
