| Range | Resolution | Accuracy |
|---|---|---|
| 0.0…65.9 A | 0.1 A | ±(2.0% m.v. + 5 digits) |
| 660…2000 A | 1 A | ± (3.0% m.v. + 5 digits) for 660...1000 A ±(5.0% m.v. + 5 digits) for 1000...2000 A |
“m.v.” - measured value
0
Login
Additional accessories
Test lead 2 m black CAT IV 1000 V (banana p...
16 107,00 ₹
Available
Test lead 2 m CAT IV 1000V (banana plugs, f...
16 520,00 ₹
Available
Test lead 2 m CAT IV 1000V (banana plugs, f...
16 107,00 ₹
Available
Test lead 2 m CAT IV 1000 V (banana plugs, ...
16 520,00 ₹
Available
Test lead 2 m CAT IV 1000 V (banana plugs, ...
16 520,00 ₹
Available
Test leads set for CMM (CAT IV, M)
8 260,00 ₹
Available
Test leads set for CMM (CAT IV, S)
8 260,00 ₹
Available
AC-16
Line splitter
16 314,00 ₹
Available
Type K temperature pin probe
8 260,00 ₹
Available
Type K temperature metal probe
8 260,00 ₹
Available
Professional measurements

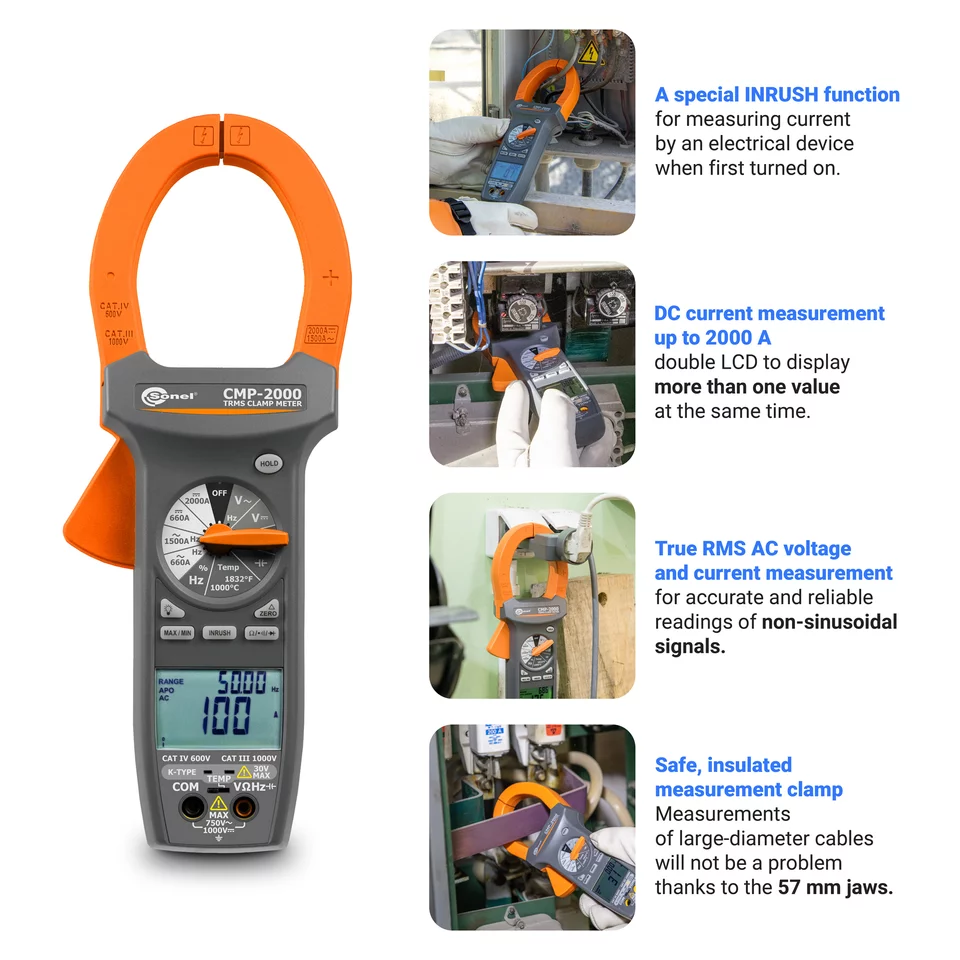

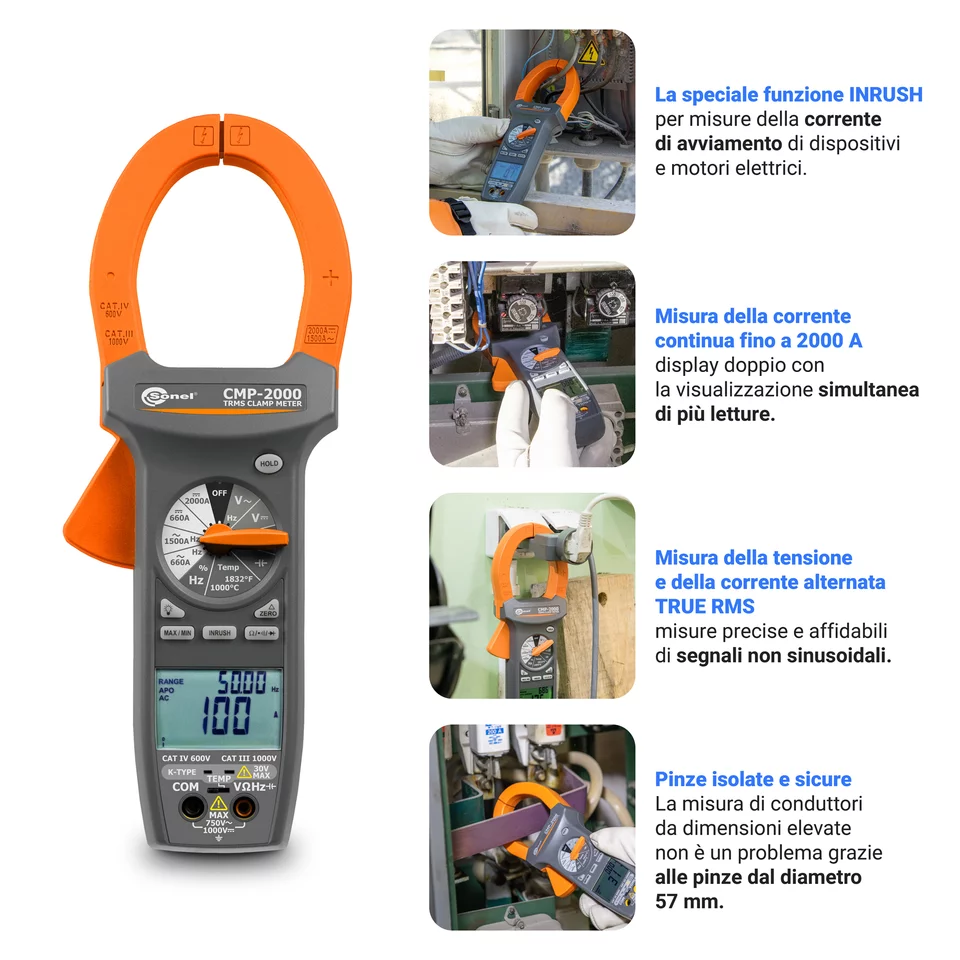

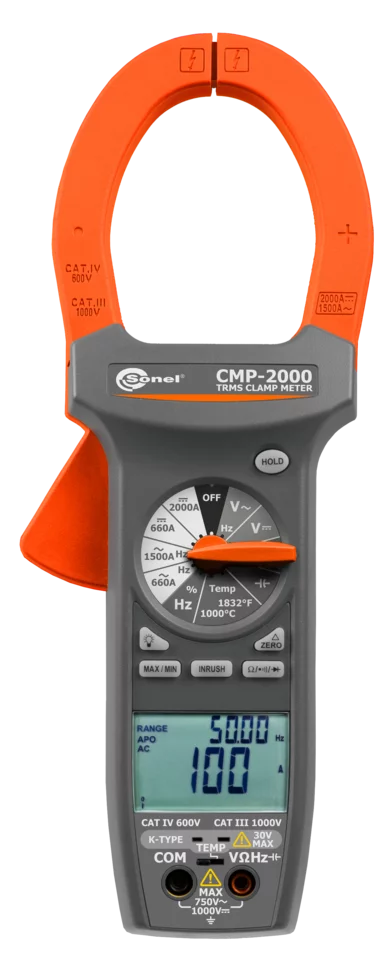

The Sonel CMP-2000 professional clamp meter is a multi-purpose instrument used for measuring high currents up to 2000 A with clamps on wires up to 57 mm in diameter and on bus-wires up to 70 x 18 mm. The special INRUSH function makes it possible to measure the maximum instantaneous value of the current drawn by an electrical device during its start-up.
The CMP-2000 clamp meter is equipped with electronic overload protection for all functions and measuring ranges, thus guaranteeing higher operational safety. The instrument performs well even in hard-to-reach places and significantly improves the testing of specific network parameters. The handy shape further enhances the comfort of using the device. The small dimensions make the meter easy to carry and it does not take up much space in the tool bag. The casing of the device is made in protection class IP20. This well-conceived, cost-effective meter model is an excellent choice for novice users, but its advantages will undoubtedly be recognised by experienced professionals too.
Product features
- INRUSH function for measuring current drawn by an electrical device when first turned on
- True RMS AC voltage and current measurement for accurate and reliable readings of non-sinusoidal signals
- AC current measurement (TRUE RMS) up to 1500 A
- DC current measurement up to 2000 A
- AC voltage measurement (TRUE RMS) up to 750 V
- DC voltage measurement up to 1000 V
- resistance mesurement up to 66 MΩ
- continuity test with acoustic signalling (beeper) for resistance below 30 Ω
- capacitance measurement up to 6,6 mF
- temperature measurement (Fahrenheit and Celsius)
- frequency measurement
- duty cycle measurement
- diode test
Overview

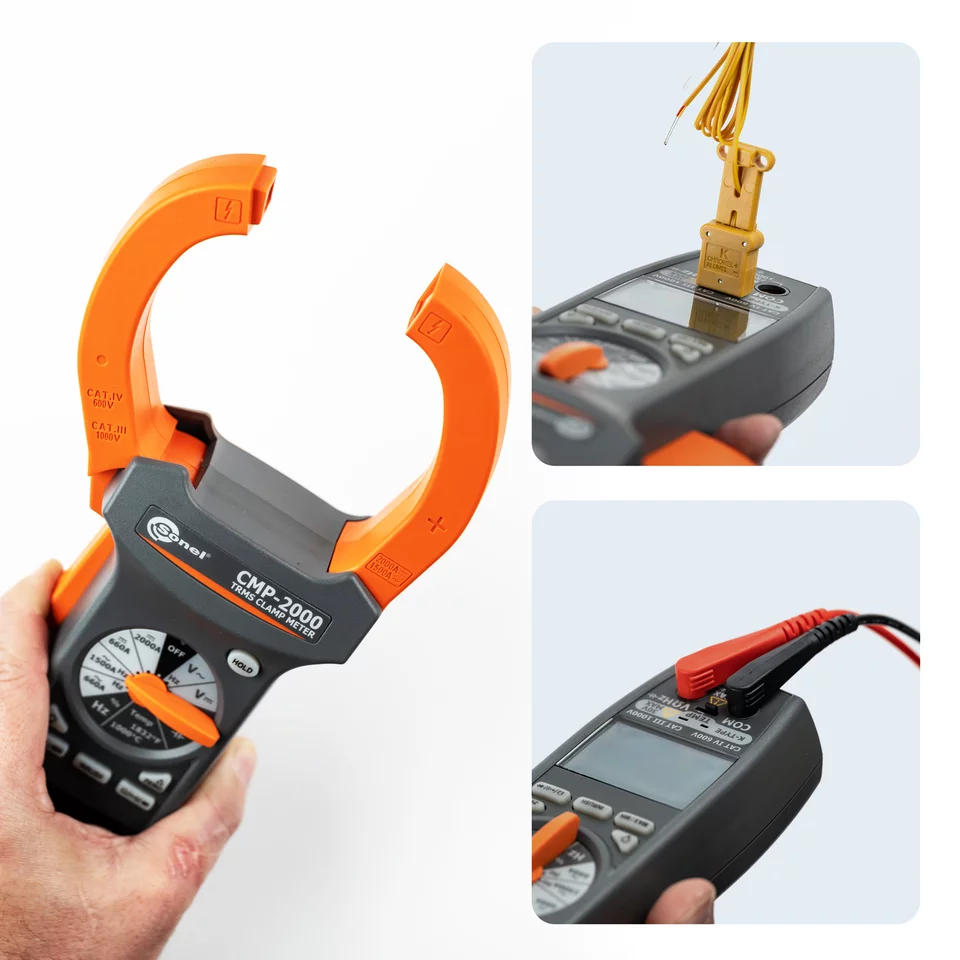

The Sonel CMP-2000 Clamp Meter is designed to work in high current rating up to 2000 A.
A special INRUSH function allows to measure the maximal instantaneous input current drawn by an electrical device when first turned on.
Measurements of large-diameter cables will not be a problem thanks to the 57 mm jaws. CMP-2000 is the best solution for professional electricians.
Special features
- double LCD to display more than one value at the same time
- safe, insulated measurement clamp
- automatic selection of measuring ranges
- HOLD function, allowing for freezing the result on the display
- backlit LCD
- Delta ZERO function, relative measurement mode for direct current - capability of zeroing the instrument at any time and returning to measurement in absolute mode
- holding of minimum and maximum values
- indication of range overflow
- automatic power down after 30 minutes
Faciliating the measurements
The AC-16 adapter expands the application of the clamp meter. With the ratio x1 and x10, 230 V AC of voltage and max 16 A of current, the adapter can be applied with any type of clamp meter.
| Range | Resolution | Accuracy |
|---|---|---|
| 0.000…6.599 V | 0.001 V | ±(0.5% m.v. + 2 digits) |
| 6.60…65.99 V | 0.01 V | ±(0.5% m.v. + 2 digits) |
| 66.0…659.9 V | 0.1 V | ±(0.5% m.v. + 2 digits) |
| 660…1000 V | 1 V | ±(0.5% m.v. + 2 digits) |
| Range | Resolution | Accuracy |
|---|---|---|
| 0.0…659.9 Ω | 0.1 Ω | ±(1.0% m.v. + 5 digits) |
| 0.660…6.599 kΩ | 0.001 kΩ | ±(1.0% m.v. + 5 digits) |
| 6.60…65.99 kΩ | 0.01 kΩ | ±(1.0% m.v. + 5 digits) |
| 66.0…659.9 kΩ | 0.1 kΩ | ±(1.0% m.v. + 5 digits) |
| 0.660…6.599 MΩ | 0.001 MΩ | ±(2.0% m.v. + 5 digits) |
| 6.60…66.00 MΩ | 0.01 MΩ | ±(3.5% m.v. + 5 digits) |
| Range | Resolution | Pulse width | Accuracy |
|---|---|---|---|
| 5…95% | 0.1% | >10 μs | ±(3.0% m.v. + 30 digits) |
- frequency range: 5%...95% (40 Hz...20 kHz)
| Range | Range | Accuracy |
|---|---|---|
| 0.0…659.9 A | 0.1 A | ±(2.0% m.v. + 10 digits) for 50...60 Hz |
| 0.0…659.9 A | 0.1 A | ±(3.0% m.v. + 10 digits) for 61...400 Hz |
| 660…1500 A | 1 A | ±(2.5% m.v. + 10 digits) for 50...60 Hz and 660...1000 A ±(3.5% m.v. + 10 digits) for 61...400 Hz and 660...1000 A ±(5.0% m.v. + 10 digits) for 50...400 Hz and 1000...1500 A |
| Range | Resolution | Accuracy |
|---|---|---|
| 0.000…6.599 V | 0.001 V | ±(1.5% m.v. + 8 digits) for 50...500 Hz |
| 6.60…65.99 V | 0.01 V | ±(1.5% m.v. + 8 digits) for 50...500 Hz |
| 66.0…659.9 V | 0.1 V | ±(1.5% m.v. + 8 digits) for 50...500 Hz |
| 660…750 V | 1 V | ±(1.5% m.v. + 8 digits) for 50...500 Hz |
| Range | Resolution | Accuracy |
|---|---|---|
| 0.0…6.599 nF | 0.001 nF | ±(3.0% m.v. + 30 digits) |
| 6.60…65.99 nF | 0.01 nF | ±(3.0% m.v. + 10 digits) |
| 66.0…659.9 nF | 0.1 nF | ±(3.0% m.v. + 30 digits) |
| 6.660…6.599 μF | 0.001 μF | ±(3.0% m.v. + 10 digits) |
| 6.60…65.99 μF | 0.01 μF | ±(3.0% m.v. + 10 digits) |
| 66.0…659.9 μF | 0.1 μF | ±(3.0% m.v. + 10 digits) |
| 0.660…6.599 mF | 0.001 mF | ±(5% m.v. + 10 digits) |
| Range | Resolution | Accuracy |
|---|---|---|
| 10.00…65.99 Hz | 0.01 Hz | ±(0.1% m.v. + 5 digits) |
| 66.0…659.9 Hz | 0.1 Hz | ±(0.1% m.v. + 5 digits) |
| 0.660…6.599 kHz | 0.001 kHz | ±(0.1% m.v. + 5 digits) |
| 6.60…65.99 kHz | 0.01 kHz | ±(0.1% m.v. + 5 digits) |
| 66.0…659.9 kHz | 0.1 kHz | ±(0.1% m.v. + 5 digits) |
| 0.660…1.000 MHz | 0.001 MHz | ±(0.1% m.v. + 5 digits) |
| Parameter | Value |
|---|---|
| Net weight (kg) | 0.5 |
| Package weight (kg) | 1 |
| Package width (cm) | 8 |
| Package height (cm) | 30 |
| Package length (cm) | 14 |

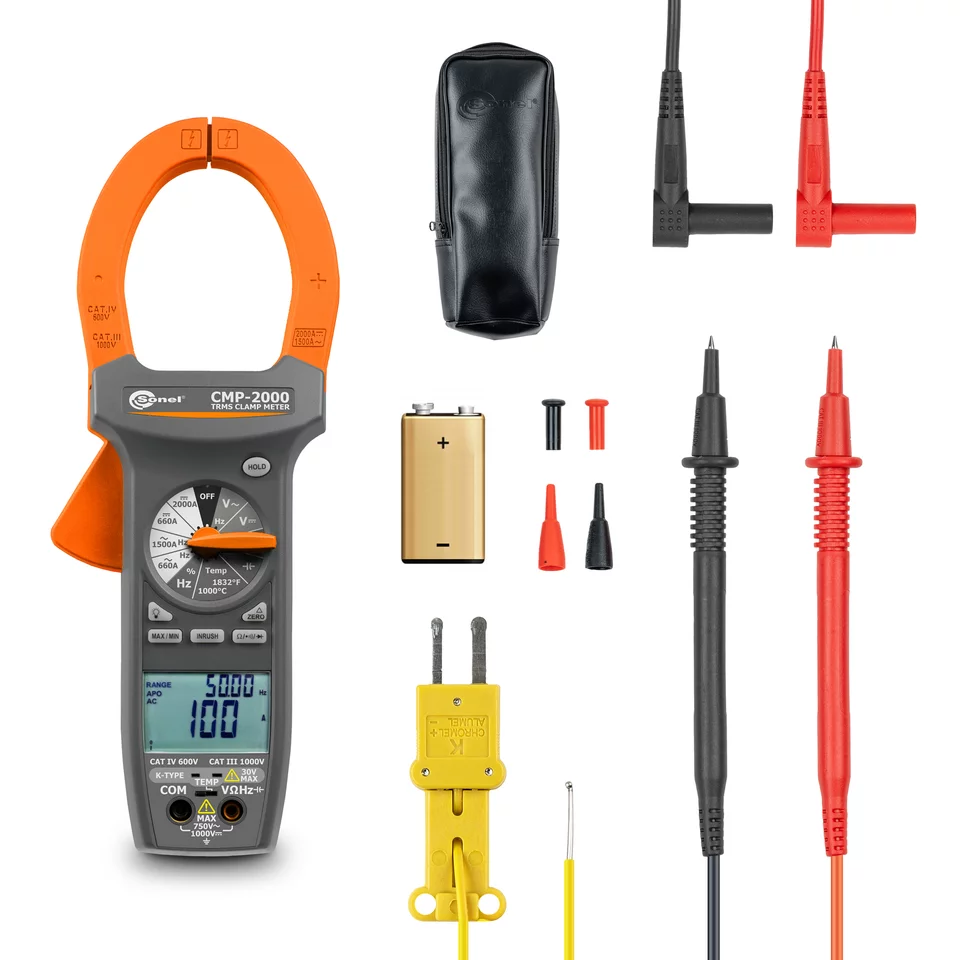

Accessories included with the meter
Additional accessories
Test lead 2 m black CAT IV 1000 V (banana plugs, fused 10 A)
NO. CAT. WAPRZ002BLBBF10
Available
Delivery: up to 6 days
16 107,00 ₹
Test lead 2 m CAT IV 1000V (banana plugs, fused 10 A) red
NO. CAT. WAPRZ002REBBF10
Available
Delivery: up to 6 days
16 520,00 ₹
Test lead 2 m CAT IV 1000V (banana plugs, fused 10 A) blue
NO. CAT. WAPRZ002BUBBF10
Available
Delivery: up to 6 days
16 107,00 ₹
Test lead 2 m CAT IV 1000 V (banana plugs, fused 10 A) green
NO. CAT. WAPRZ002GRBBF10
Available
Delivery: up to 6 days
16 520,00 ₹
Test lead 2 m CAT IV 1000 V (banana plugs, fused 10 A) yellow
NO. CAT. WAPRZ002YEBBF10
Available
Delivery: up to 6 days
16 520,00 ₹
Test leads set for CMM (CAT IV, M)
NO. CAT. WAPRZCMM2
Available
Delivery: up to 6 days
8 260,00 ₹
Test leads set for CMM (CAT IV, S)
NO. CAT. WAPRZCMM1
Available
Delivery: up to 36 days
8 260,00 ₹
AC-16
Line splitter
NO. CAT. WAADAAC16
Available
Delivery: up to 6 days
16 314,00 ₹

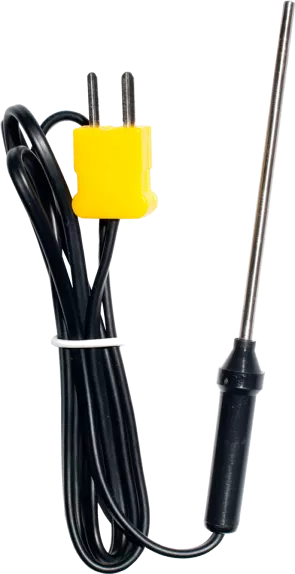

Type K temperature pin probe
