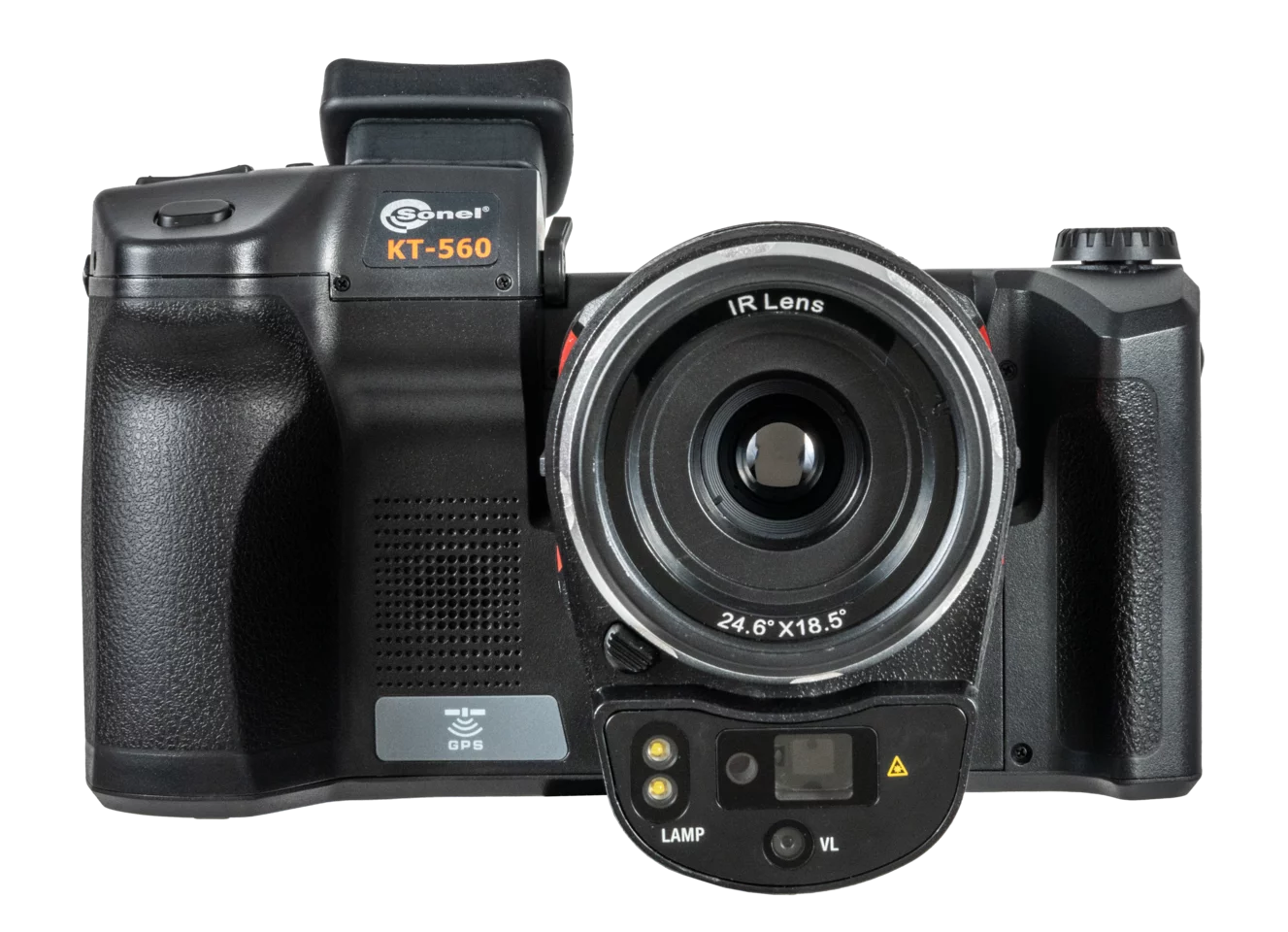

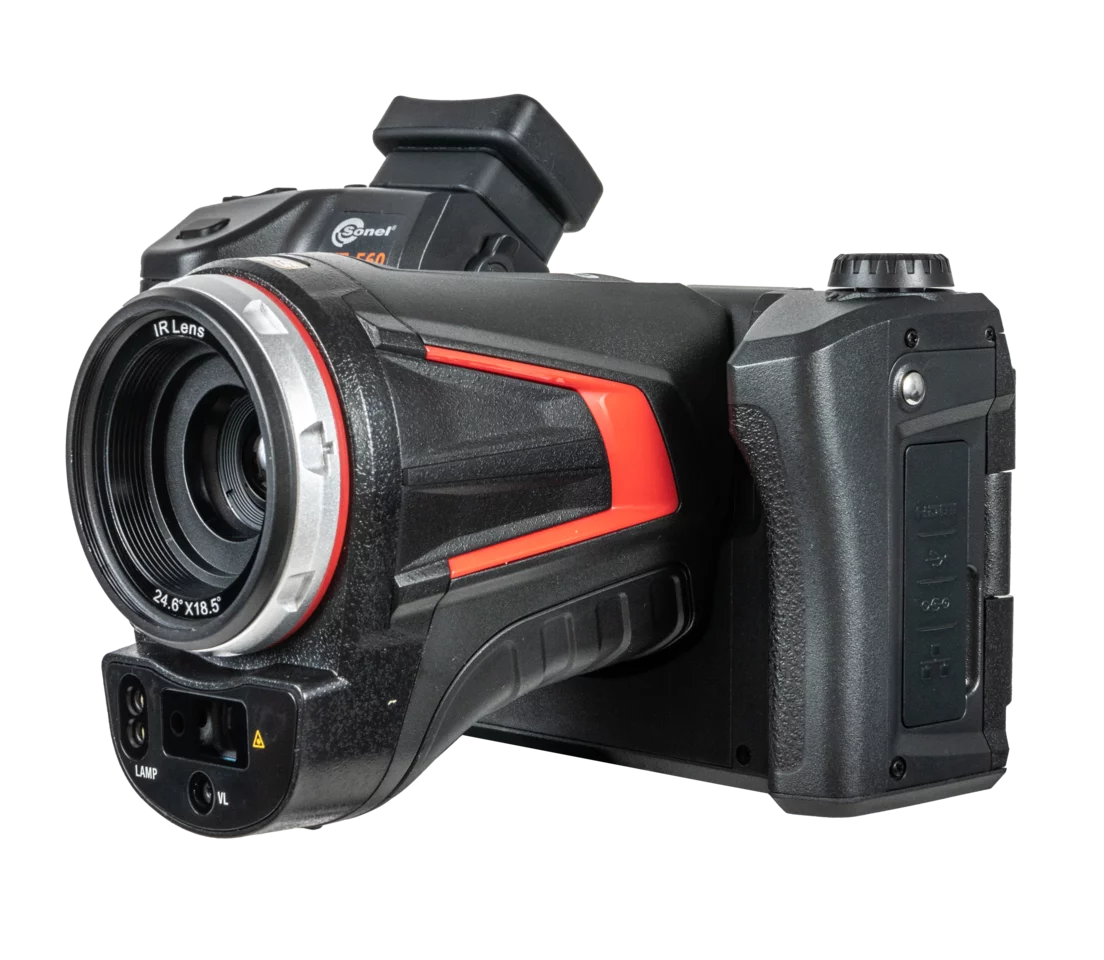

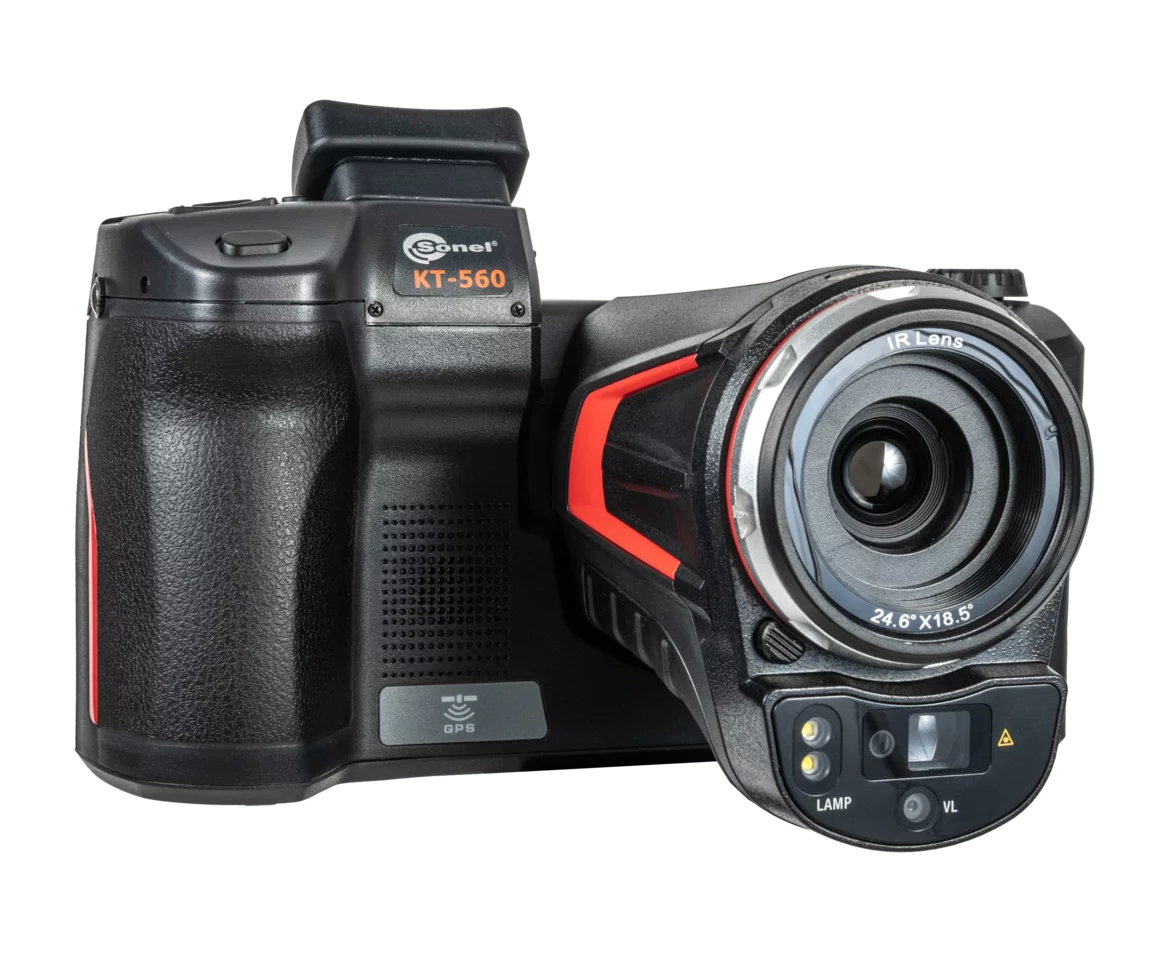

KT-560.1
Thermal imager

Name: Thermal imager
Brand: Sonel
SKU: S49-WMGBKT5601V15
Price: 1884460 INR
Availability: OutOfStock

Index cat. WMGBKT5601V15

ean 5907624004573

Ingress protection: IP 54

Data transmission: Bluetooth, LAN, USB, Wi-Fi

Display: touchscreen, graphic, color, backlit

1 884 460,00 ₹

unavailable

Inquiry for an offer

Wide-angle IR lens 48.1° x 35.9° / 7.78 mm ...

Inquire

High temperature filter (2000°C)

1 127 612,72 ₹

Available

Z-14

External battery charger

128 195,20 ₹

Available

M-11

Carrying case

45 920,88 ₹

Available

Tele IR lens 11.2° x 8.4° / 33 mm for KT-56...

Inquire

Ultra-tele IR lens 7.3° x 5.5° / 50.7 mm fo...

Inquire

HDMI / RCA converter

15 306,96 ₹

Available

Heavyweight for thermography

Behold the highest class of thermal imagers that offers temperature measurements of substantial accuracy. Robustly designed and constructed, they are ideally suited for:

troubleshooting electrical installations, wiring, panels, motors, breakers, transformers, switchgear, and electrical equipment,
monitoring the thermal performance of industrial manufacturing processes,
identifying overheating of mechanical and electro-mechanical components,
inspecting buildings for insulation leaks, energy audits, HVAC/R equipment, water damage, and pests,
locating hidden heat sources (of people, animals, objects) in dark or low-light conditions.

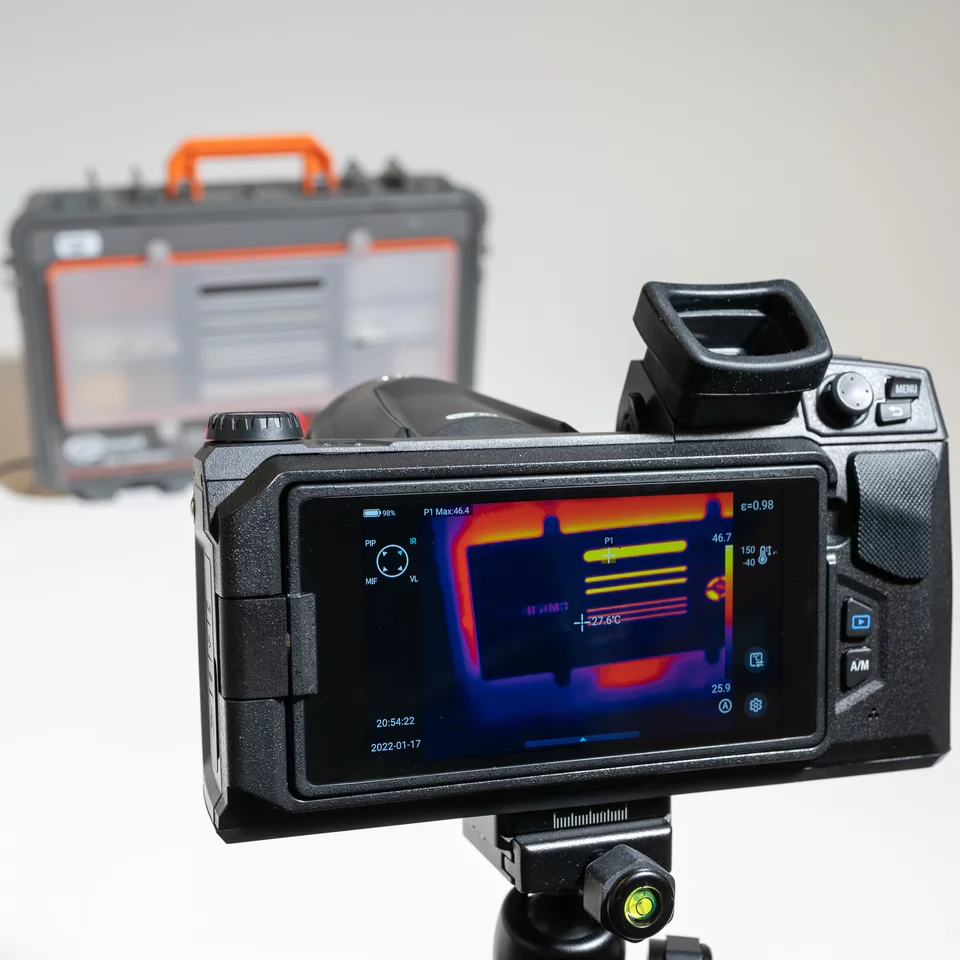

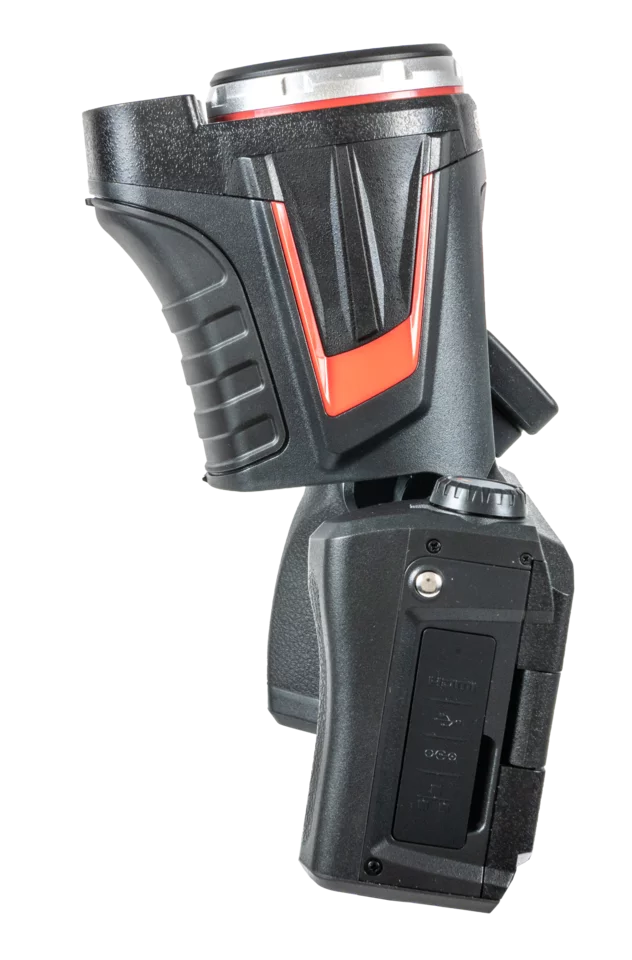

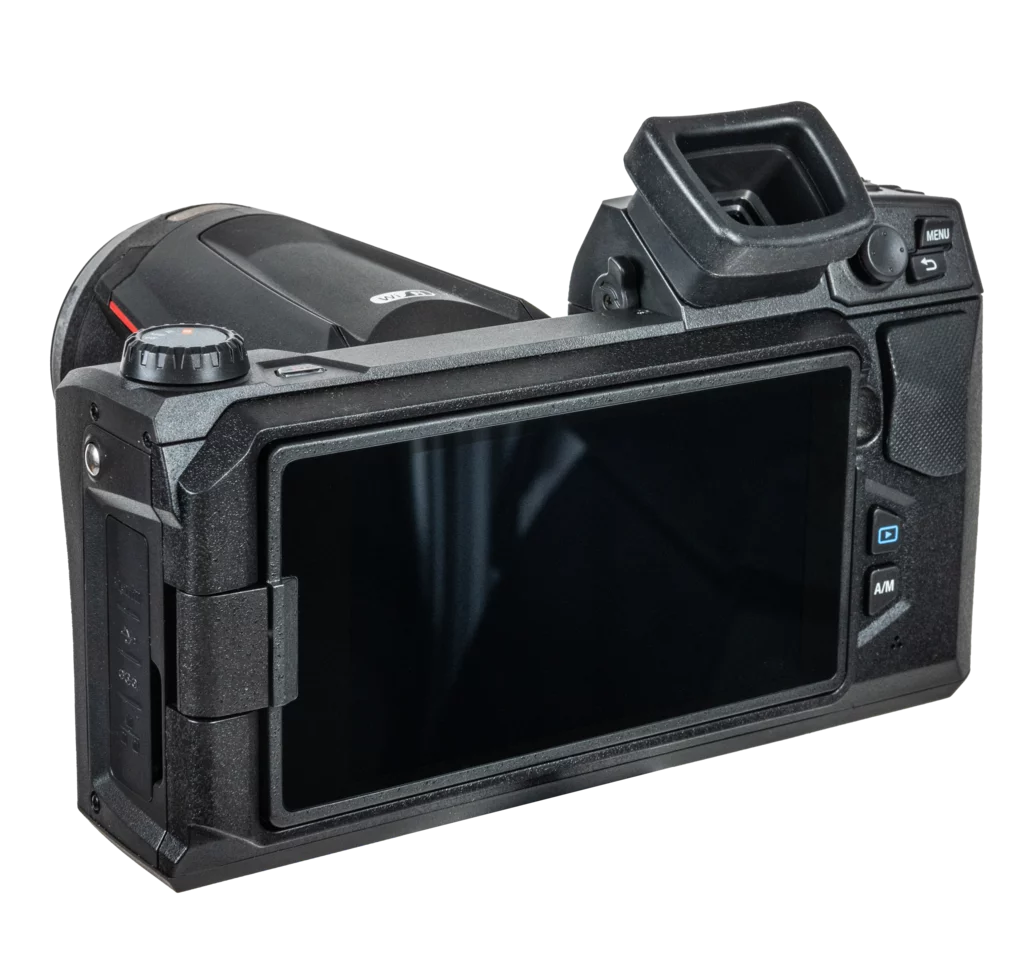

The touchscreen as well as the lens swivel independently to view objects of interest that are difficult to access from any angle. The large number of functions, intuitive handling and excellent ergonomics make the KT-560 imagers perfect for every advanced thermographer.

Features

Image files saved in JPG format (complete image data).
Recording of IR videos (on SD memory card or computer hard disk).
Built-in reports module.
MIF image combining mode.
Extensive image analysis tools.
Built-in camera for capturing images within the visible light spectrum.
Built-in: GPS, digital compass, LED flashlight, laser.pointer, laser rangefinder.
Interfaces: USB type C, Wi-Fi, Gigabit Ethernet, micro HDMI, SD memory card slot, Bluetooth.
Digital zoom.
Interchangeable lenses that do not require calibration by the manufacturer.

Specifications

Parameter	Description
Detector resolution	384 x 288 / 17 μm
Spectral range	7.5~14 μm
Thermal sensitivity	45 mK
Lens (field of view / focal length / instantaneous field of view / min. focus distance)
• standard	24.9° x 18.7° / 15 mm / 1.13 mrad / 0.4 m
• wide angle	48.1° x 35.9° / 7.78 mm / 2.19 mrad / 0.15 m
• telephoto	11.2° x 8.4° / 33 mm / 0.52 mrad / 2 m
• ultra-telephoto	7.3° x 5.5° / 50.7 mm / 0.34 mrad / 4 m
• macro	23.3 mm x 17.5 mm / 67 mm / - / 60.7 μm
• high temp	24.9° x 18.7° / - / - / -
Display	5”, 1280 x 720 high brightness, LCD touchscreen
Viewfinder	1280 x 960 LCOS
Image modes	IR / Visual / Infrafusion MIF / PiP
Digital zoom	1…10
Temperature range	Range 1: -40°C…150°C Range 2: 100°C…800°C Optional: 700°C…2000°C
Accuracy	±2°C or ±2% of reading
Image analysis modes	12 points, 12 lines, 12 areas. Temperature indication: min, max, average. Isotherm. Temperature alarm. Smart stroke.
Palettes	8
Super-resolution	4x, 768 x 576
Panoramic images	-
Emissivity coefficient	Selectable from 0.01 to 1.00
Measurement adjustment	Auto-adjustable distance, relative humidity, ambient temperature (reflected)
File format	JPG
IR image annotations	Additional visual photos, voice, text recognition, text typing
Reports module	PDF reports
Video file format	MP4 (without temp. information), IRGD (including temp. information)
Built-in features	Visual camera 13 MPix, LED flashlight, GPS, laser pointer, laser rangefinder, microphone, speaker, digi-tal compass, light sensor
Wireless communication	Wi-Fi, Bluetooth
Storage	Built-in memory (64 GB), SD card, cloud service
Interface	SD card slot (max. 64 GB), LAN 1 Gb/s, micro HDMI, USB type C (data transfer only), tripod
Power supply	Li-ion battery (4 h of continuous operation), built-in charger, AC adapter 110-230 V, 50/60 Hz
Operating temperature	-15°C…+50°C \| 5°F…122°F
Storage temperature	-40°C…+70°C \| -40°F…+158°F
Humidity	10%...95%
Shock/Vibration	30g 11 ms (IEC 60068-2-27)
Ingress protection	IP54
