PVM-1020 | IRM-1 | MRU-10 | |
---|---|---|---|
Safety and work conditions | |||
Measuring category according to EN 61010 | IV 300 V, III 600 V, II 1000 V DC | - | III 300 V |
Ingress protection | IP65 | IP65 | IP67 |
Dimensions | 228 x 102 x 61 mm | 134 x 79 x 28 mm | 220 x 102 x 61 mm |
Weight | ca. 1.0 kg | ca. 0.2 kg | ca. 0.7 kg |
Memory and communication | |||
Memory of measurement results | 4 059 records | user measurement memory: 999 records recorder: 5000 records |
- |
Data transmission | Bluetooth | USB | - |
Communication with IRM-1 | LoRa | - | - |
Communication with a master meter | - | LoRa | - |
Comprehensive measurements of photovoltaic installations

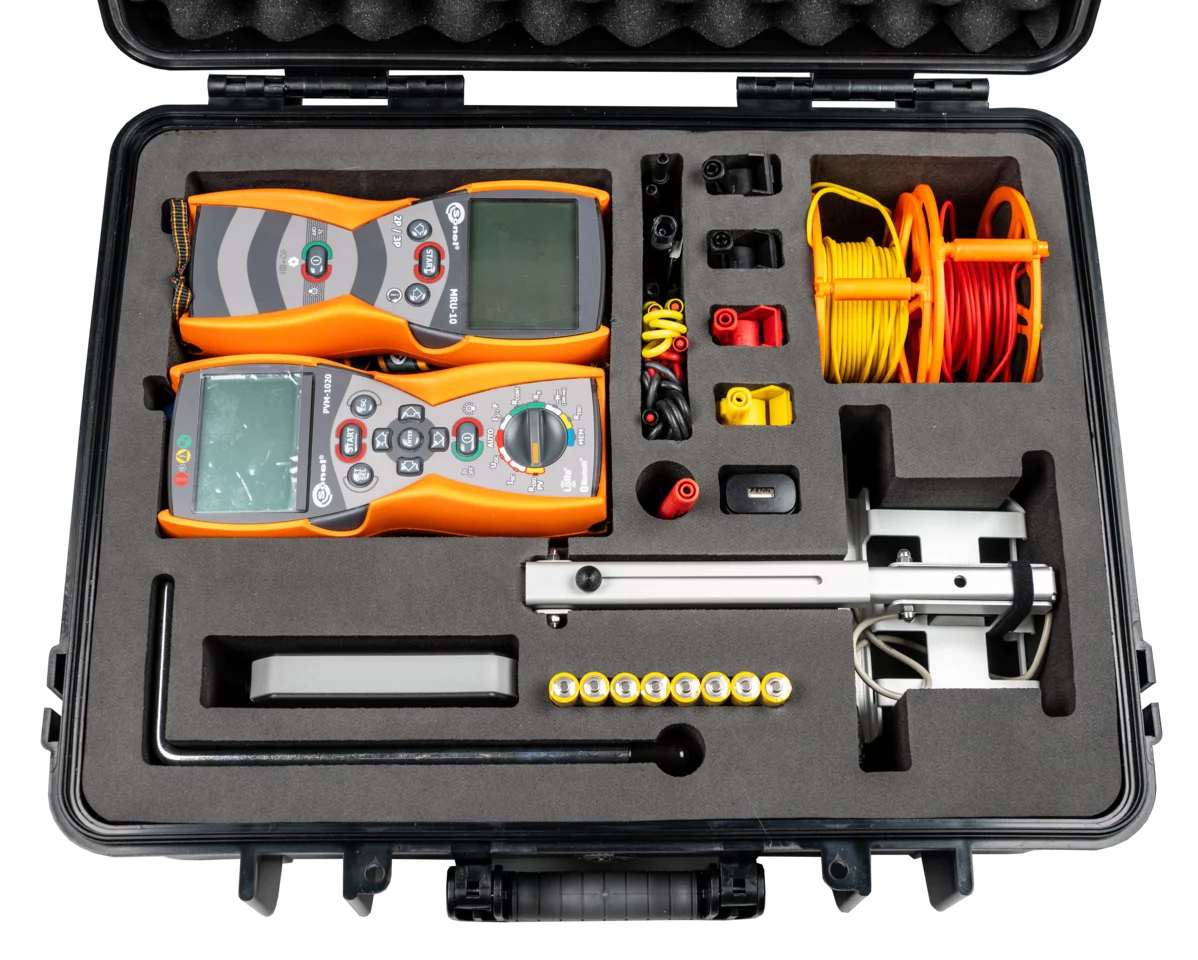

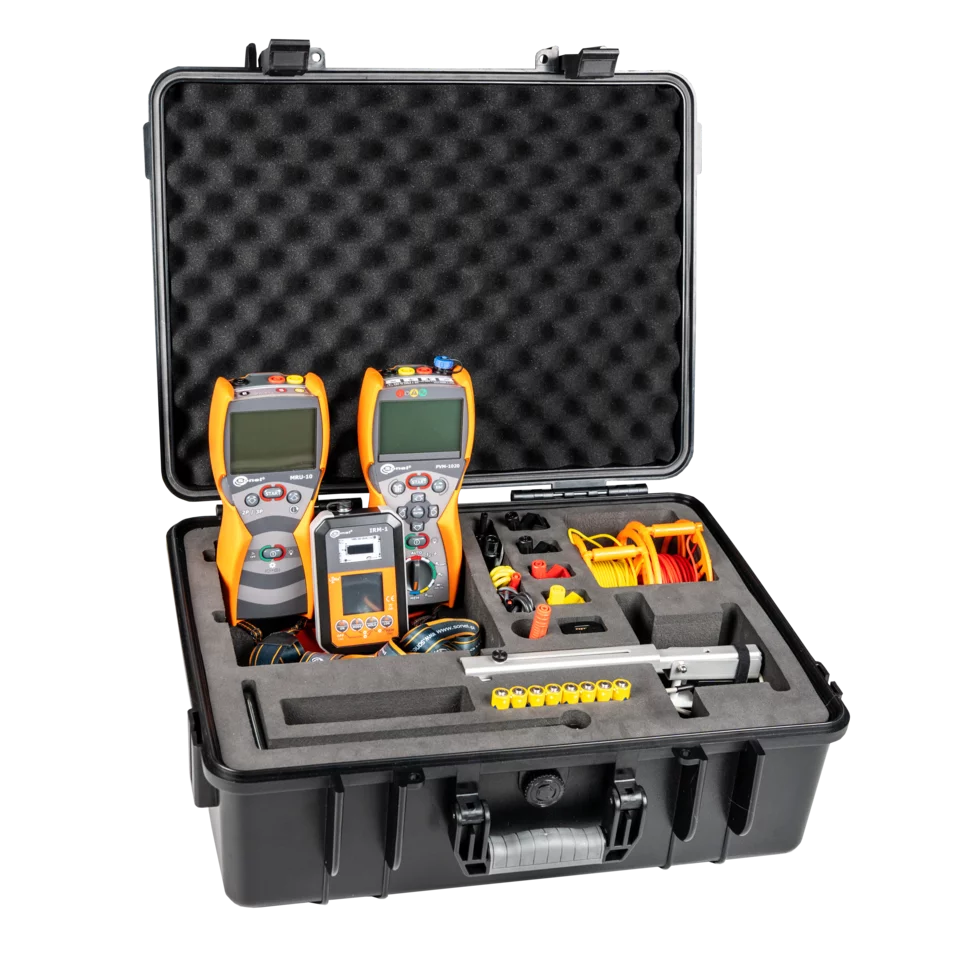

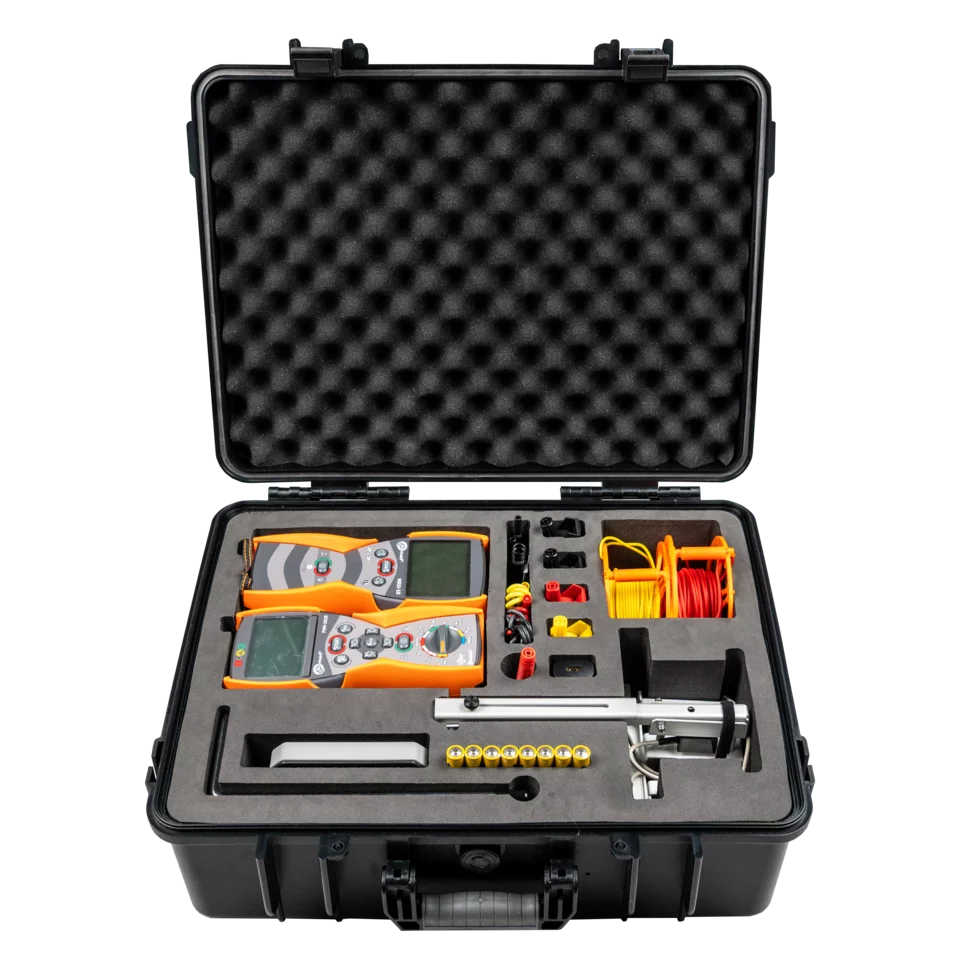

A set of measuring instruments with accessories. The set includes:
- Sonel PVM-1020 photovoltaic meter,
- Sonel IRM-1 solar radiation and temperature meter,
- Sonel MRU-10 earth resistance meter.
Capabilities
- PVM-1020 | It can be used for category 1 measurements according to IEC 62446-1.
- PVM-1020 | It converts measured parameters into STC conditions according to IEC 60891 by cooperation with the IRM-1 solar radiation and temperature meter.
- IRM-1 | Measurement of solar radiation and temperature.
- IRM-1 | The LoRa interface for communication with a master meter – offers a larger range than the Bluetooth technology!
- MRU-10 | Earthing resistance measurements of photovoltaic installations using the 3-pole method.
PVM-1020
Photovoltaic meter
Features
- It can be used for category 1 measurements according to IEC 62446-1.
- AUTO mode for performing a sequence of measurements after one press of the START button.
- It converts measured parameters into STC conditions according to IEC 60891 by cooperation with the IRM-1 solar radiation and temperature meter.
- reSYNC function – automatic completion of results with environmental parameters and their conversion to STC conditions after restoring connection with IRM-1.
- The built-in LoRa radio interface ensures cooperation with the IRM-1 meter over long distances.
- Built-in Bluetooth module for communication with a computer.
- Large measurement memory: 100 objects with 40 cells each.
- Backlit display and buttons.
Measured parameters
- The open circuit voltage of the PV panel or a chain of panels, up to 1000 V DC.
- RMS voltage of the AC network up to 600 V with frequency measurement.
- Short circuit current of a PV panel or chain of panels – up to 20 A DC.
- Insulation resistance of PV panels – measuring voltage of 250, 500 or 1000 V, simultaneous measurement of two values: RISO+ and RISO-.
- Insulation resistance of AC circuits – measuring voltage 250, 500 or 1000 V.
- Resistance of protective conductors and equipotential bonding with ± 200 mA current. Low-current resistance measurement, audible and visual signalling.
- Measurement of PV panels operating current and AC current – all with external clamp.
- AC/DC power Measurement.
- Diode test with 200 mA current, automatic polarity detection. Test of blocking diodes with 1000V DC voltage.
IRM-1
Solar radiation and temperature meter
Features
- Measurement of solar radiation and temperature.
- The LoRa interface for communication with a master meter – offers a larger range than the Bluetooth technology!
- Automatic data synchronization with a master meter with reSYNC function.
- Built-in compass and inclination sensor.
- Built-in recorder that can be used to record solar radiation before constructing PV systems, as well as to measure the shading of existing systems.
- Large measurement memory: 999 cache memory cells and 5000 recorder records available (one-time recording) with the option of overwriting them (continuous recording).
Measured parameters
- Solar radiation intensity (irradiance) in W/m2 or BTU/ft2h.
- PV panel temperature in °C or °F.
- Ambient temperature in °C or °F.
- Inclination angle of panels
- Orientation of the panels with the built-in compass.

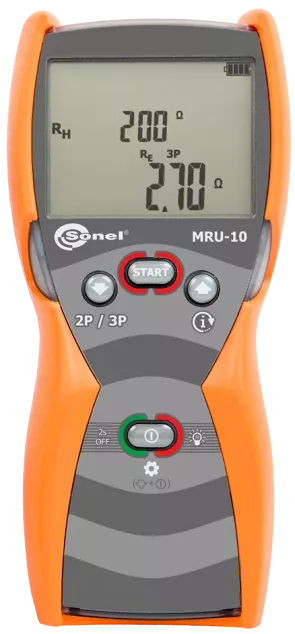

MRU-10
Earth resistance meter
Earthing resistance measurements
- 3-pole method – measurement of earthing systems using auxiliary probes.
- 2-pole method.
Features
- Resistance of auxiliary electrodes RH and RS.
- Measurement of interference voltage to 100 V.
- Indication of battery state.
- Selection of maximum measuring voltage (25 V and 50 V).
- Auto-OFF function.
Parameter | Value |
---|---|
Net weight (kg) | 1.4 |
Package weight (kg) | 9.4 |
Package width (cm) | 53 |
Package height (cm) | 45 |
Package length (cm) | 21 |
Accessories included with the meter
Additional accessories
Sonel Reports Plus
Software that supports creation of documentation
NO. CAT. WAPROREPORTSPLUS
Available
Delivery: up to 6 days
247 800,00 ₹
