Professional meter for photovoltaic installations up to 1500 V

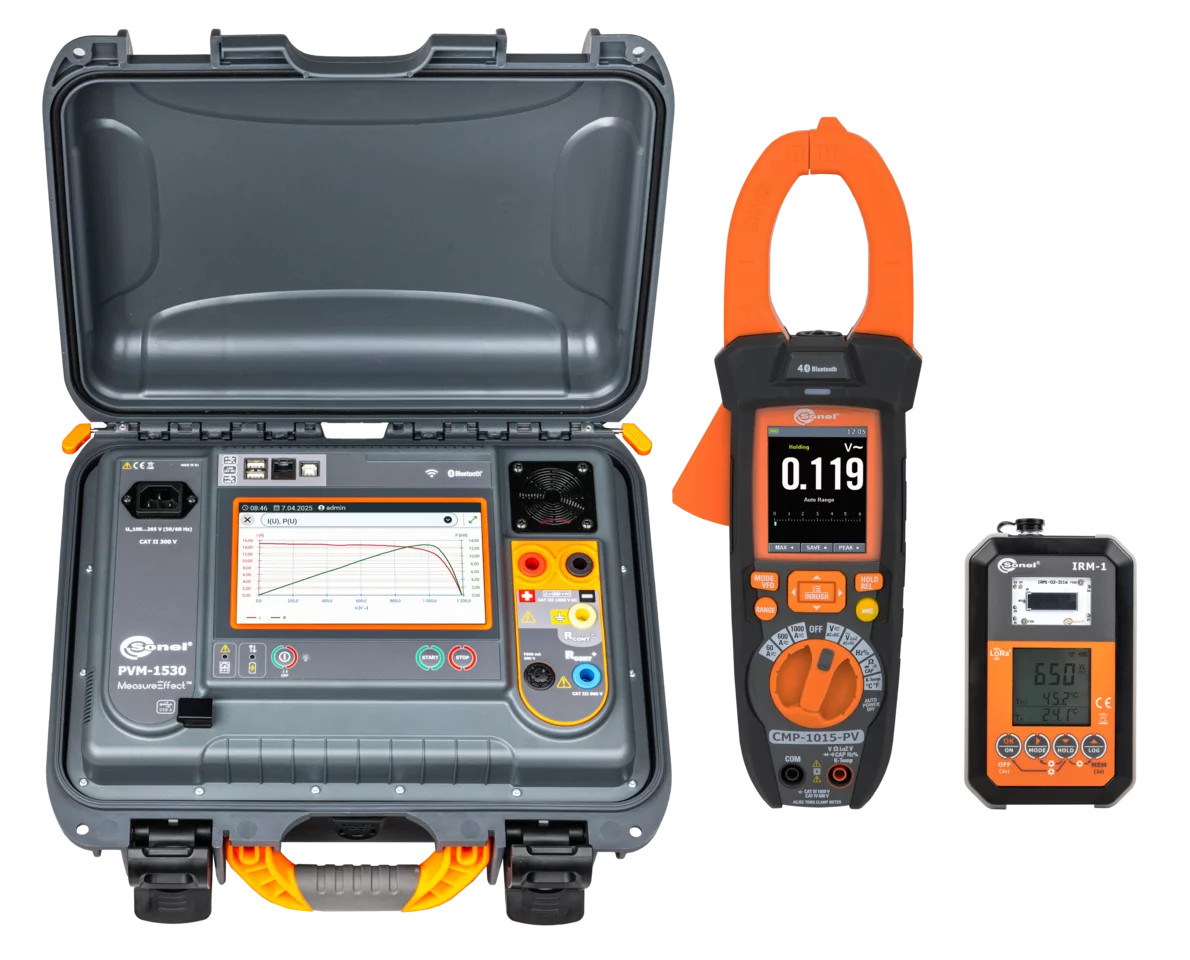

A set of measuring instruments with accessories. The set includes:

  • Sonel PVM-1530 photovoltaic meter,
  • Sonel IRM-1 solar radiation and temperature meter,
  • Sonel CMP-1015-PV digital clamp meter for photovoltaic installations.

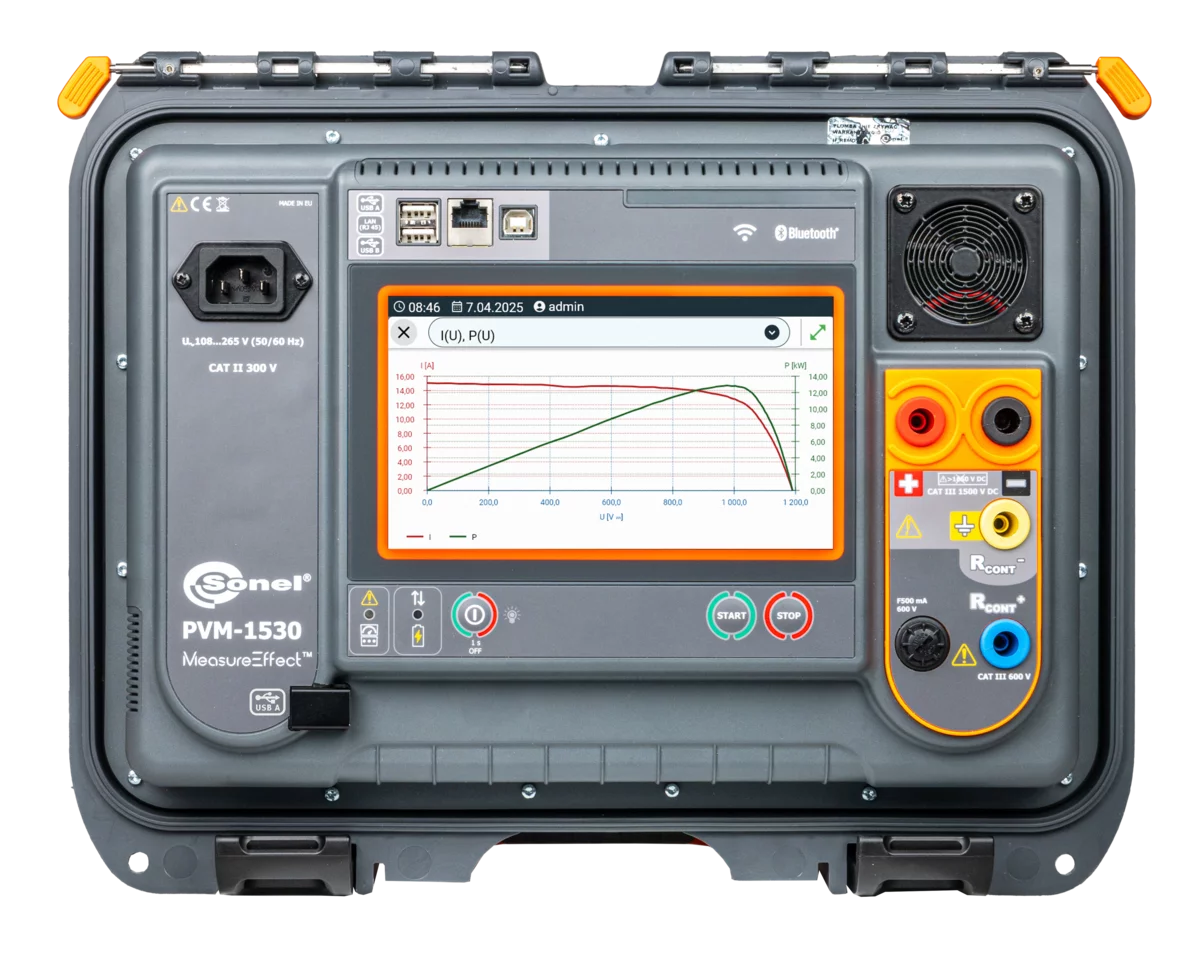

1. PVM-1530 photovoltaic meter

The PVM-1530 is a pioneering meter for photovoltaic installations up to 1500 V with such a substantial number of measurement functions. It can be used for category 1 measurements according to IEC 62446-1. It allows the measurement of the I-U curve for category 2 according to IEC 62446-1. Furthermore, it also converts measured parameters into STC conditions according to IEC 60891. Comprehensive, yet simple to use, it flawlessly performs its tasks in monitoring the safety and efficiency parameters of photovoltaic (PV) installations.

2. IRM-1 solar radiation and temperature meter

IRM-1, small, but indispensable for testing PV systems. By measuring solar radiation values, as well as panel and ambient temperatures, it provides the necessary data to convert the results into STC conditions. A built-in recorder with a memory of 5000 records enables the instrument to be used as a tool in the PV plant design process, as well as to diagnose panel shading problems.

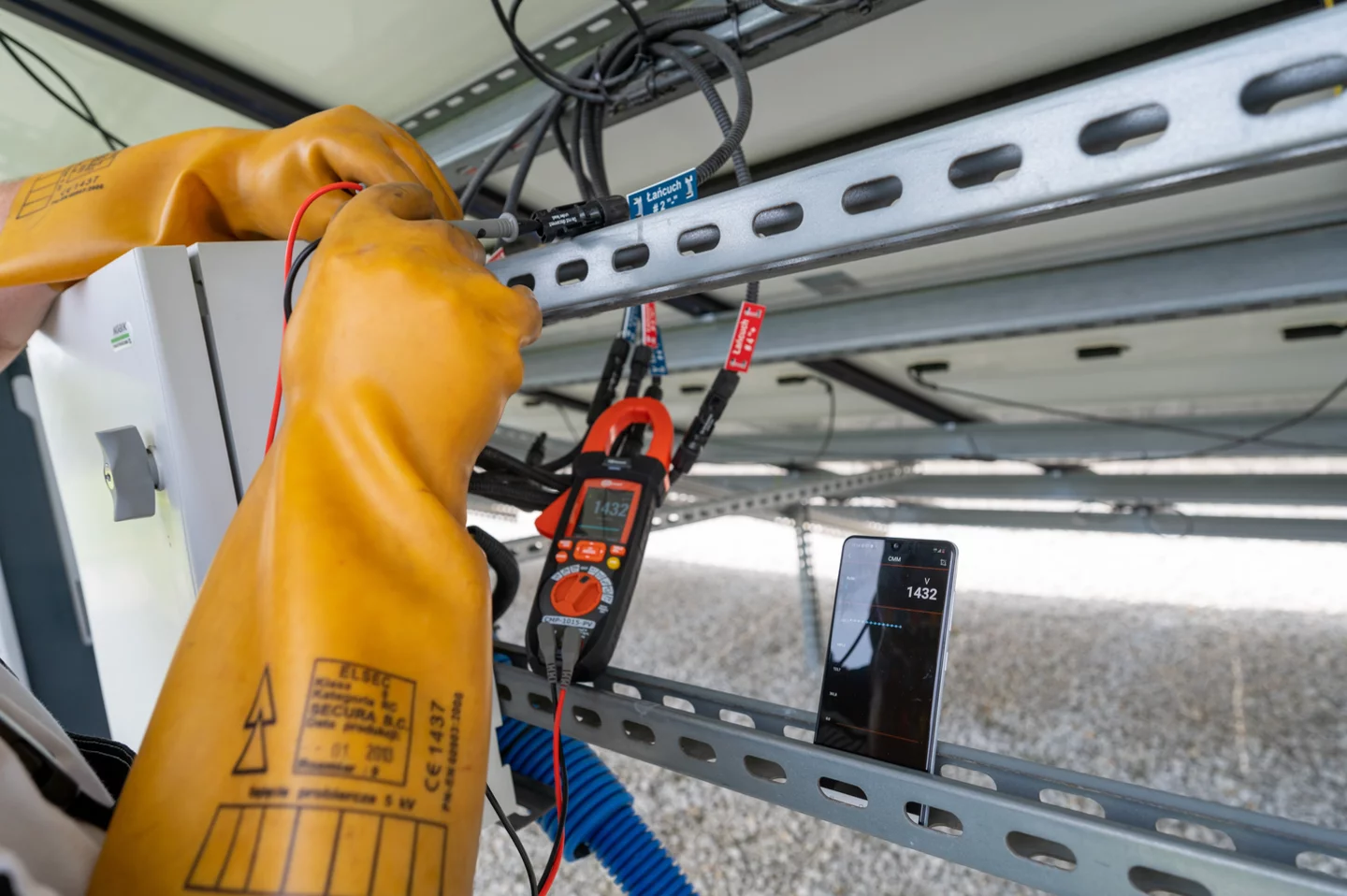

3. CMP-1015-PV digital clamp meter for photovoltaic installations

The device is dedicated to measure DC current and voltage in photovoltaic installations. The device is versatile due to many measurement options. In addition to the basic measurements, the instrument has a recorder with graphs. Working in full sun is not difficult thanks to the high-brightness display.

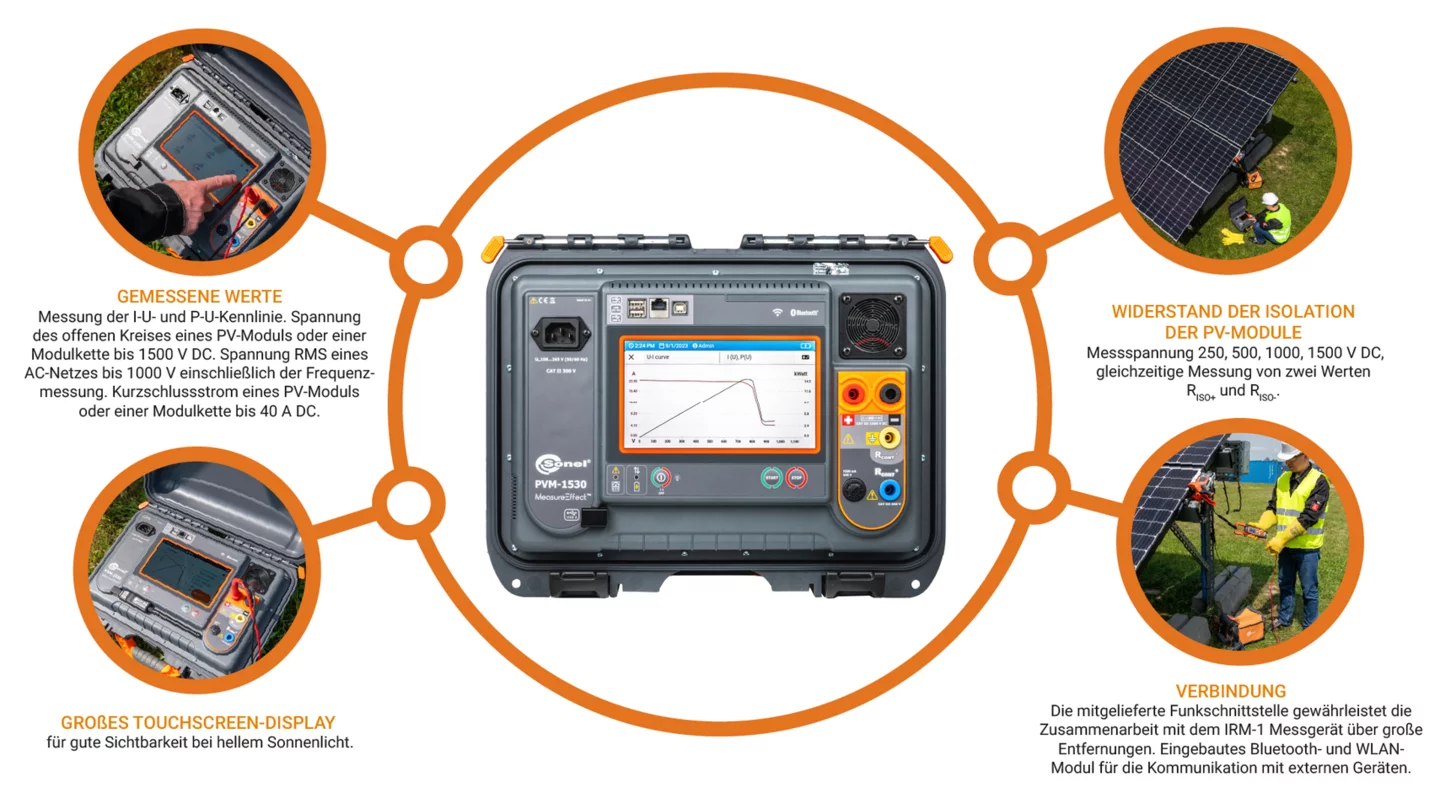

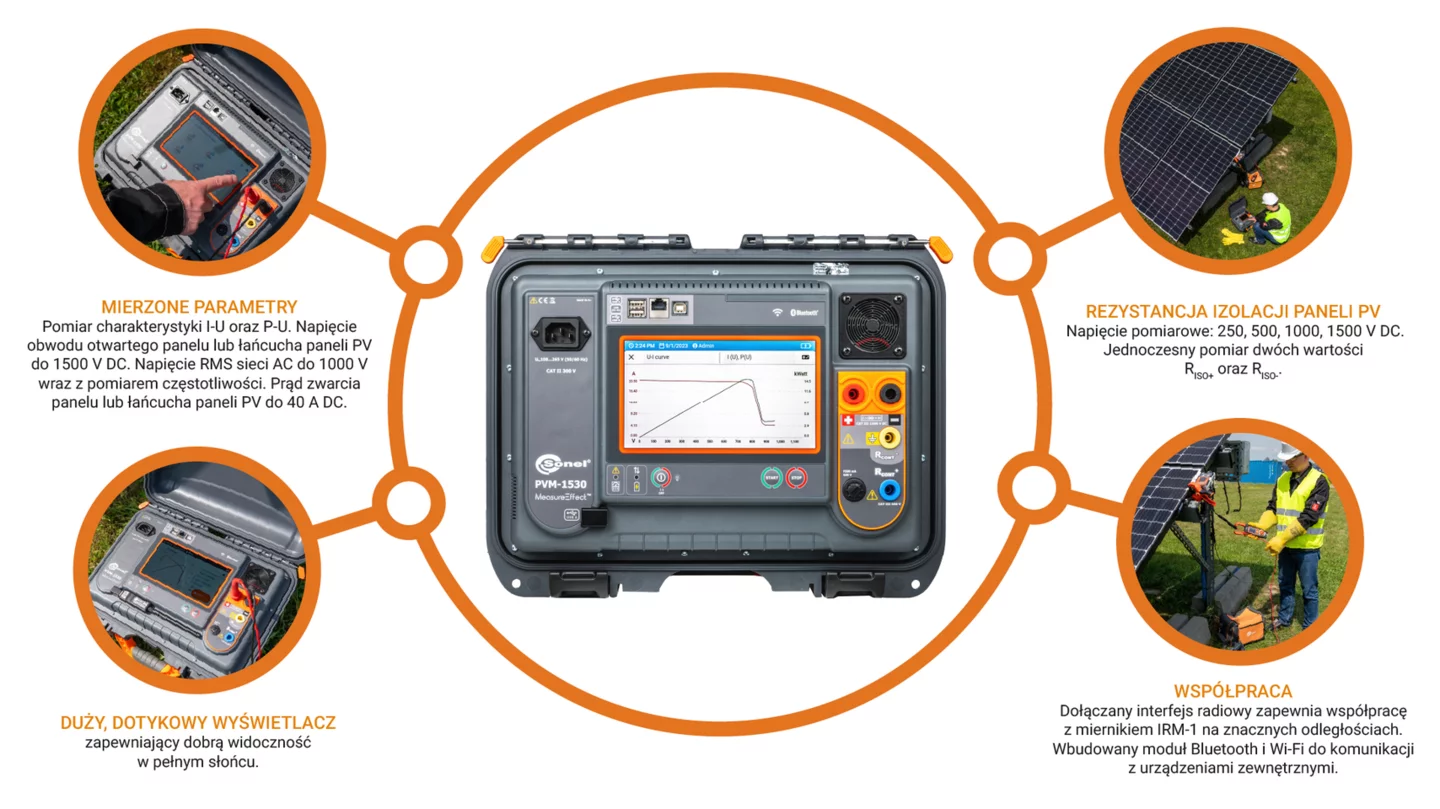

PVM-1530 | Features

  • It can be used for category 1 measurements according to IEC 62446-1.
  • Allows the measurement of the I-U curve for category 2 according to IEC 62446-1.
  • Ability to define measurement procedures.
  • It converts measured parameters into STC conditions according to IEC 60891 by cooperation with the IRM-1 solar radiation and temperature meter.
  • reSYNC function – automatic completion of results with environmental parameters and their conversion to STC conditions after restoring connection with IRM-1.
  • The attachable radio interface ensures cooperation with the IRM-1 meter over long distances.
  • Built-in Bluetooth and Wi-Fi for communication with external devices.
  • Large structured memory of measurements.
  • Large touchscreen for good visibility in bright sunlight.

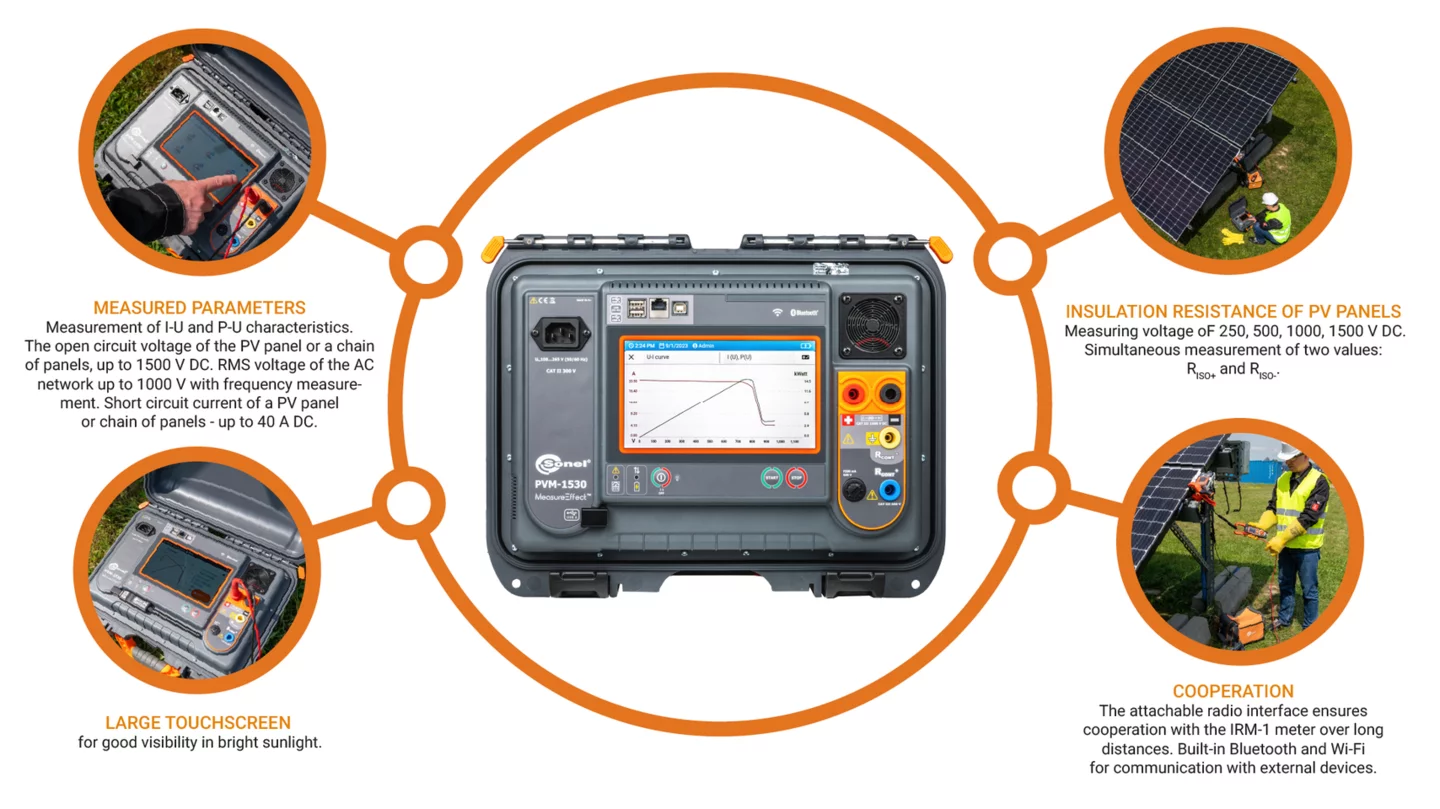

PVM-1530 | Measured parameters

  • Measurement of I-U and P-U characteristics. Conversion to STC conditions.
  • The open circuit voltage of the PV panel or a chain of panels, up to 1500 V DC.
  • RMS voltage of the AC network up to 1000 V with frequency measurement.
  • Short circuit current of a PV panel or chain of panels - up to 40 A DC.
  • Insulation resistance of PV panels - measuring voltage of 250, 500, 1000, 1500 V DC, simultaneous measurement of two values: RISO+ and RISO-.
  • Insulation resistance of AC circuits - measuring voltage 250, 500, 1000 V DC.
  • Resistance of protective conductors and equipotential bonding with ± 200 mA current.
  • Measurement of PV panels operating current and AC current - all with
  • CMP-1015-PV meter.
  • AC/DC power measurement.
  • Test of bypass diodes, automatic polarity detection.
  • Test of blocking diodes with 1000, 1500 V DC voltage.

PVM-1530 | Cat. 1 measurements and I-U characteristics

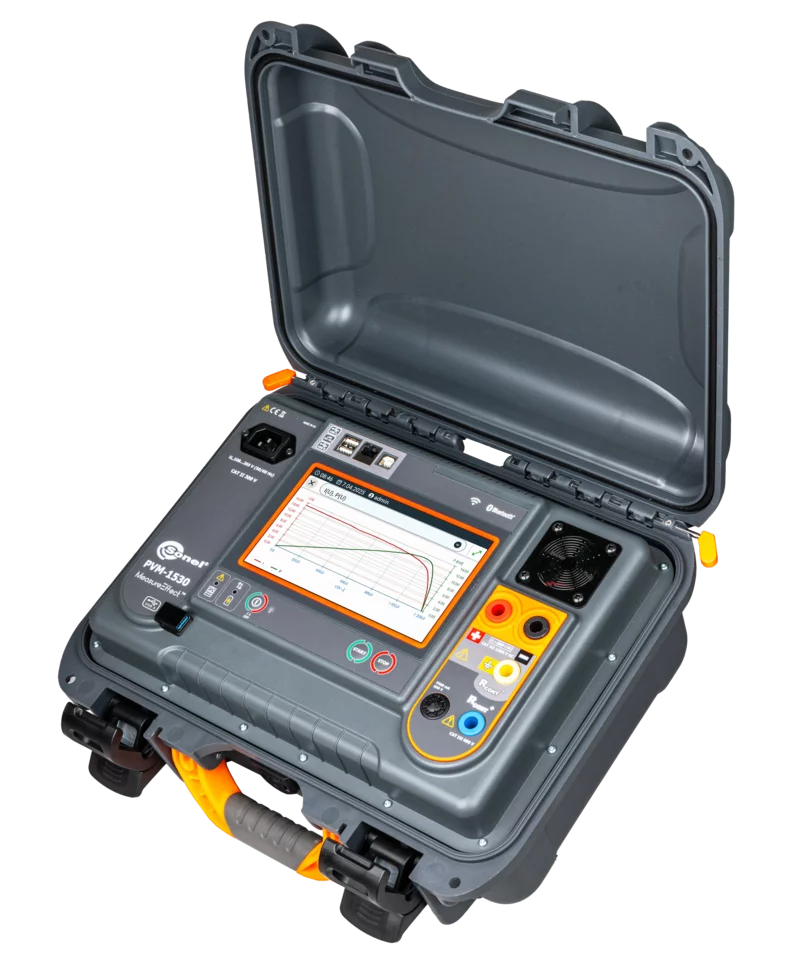

The PVM-1530 is a pioneering meter for photovoltaic installations up to 1500 V with such a substantial number of measurement functions. Their selection is done via a touch screen. The screen is large, colorful and with strong backlight so that operation in full sunlight is not a problem. Extensive structural memory significantly reduces the time for preparing post-measurement documentation.

PVM-1530 | Tightness and durability

Light meters perform well in harsh environmental conditions. The PVM-1530’s housing is rugged and tight when closed to easily ensure that the meter is protected during measurement.

PVM-1530 | Communication and software

Measurement data from the PVM-1530 can be transferred to a computer via cable or wireless communication. Saving the downloaded data to popular formats and printing is ensured by Sonel Reader. In order to generate a report on electric shock protection use the optional software: Sonel Reports Plus.

PVM-1530 | Trouble? reSYNC!

It may happen that in the course of measurements the PVM-1530 moves away from the IRM-1 so far, that communication between them is lost. If the measurements are continued, then after the connection is restored, the results will be automatically supplemented with environmental parameters, which in the meantime were recorded by the IRM-1 in its temporary memory, and converted into STC conditions.

IRM-1 | Features

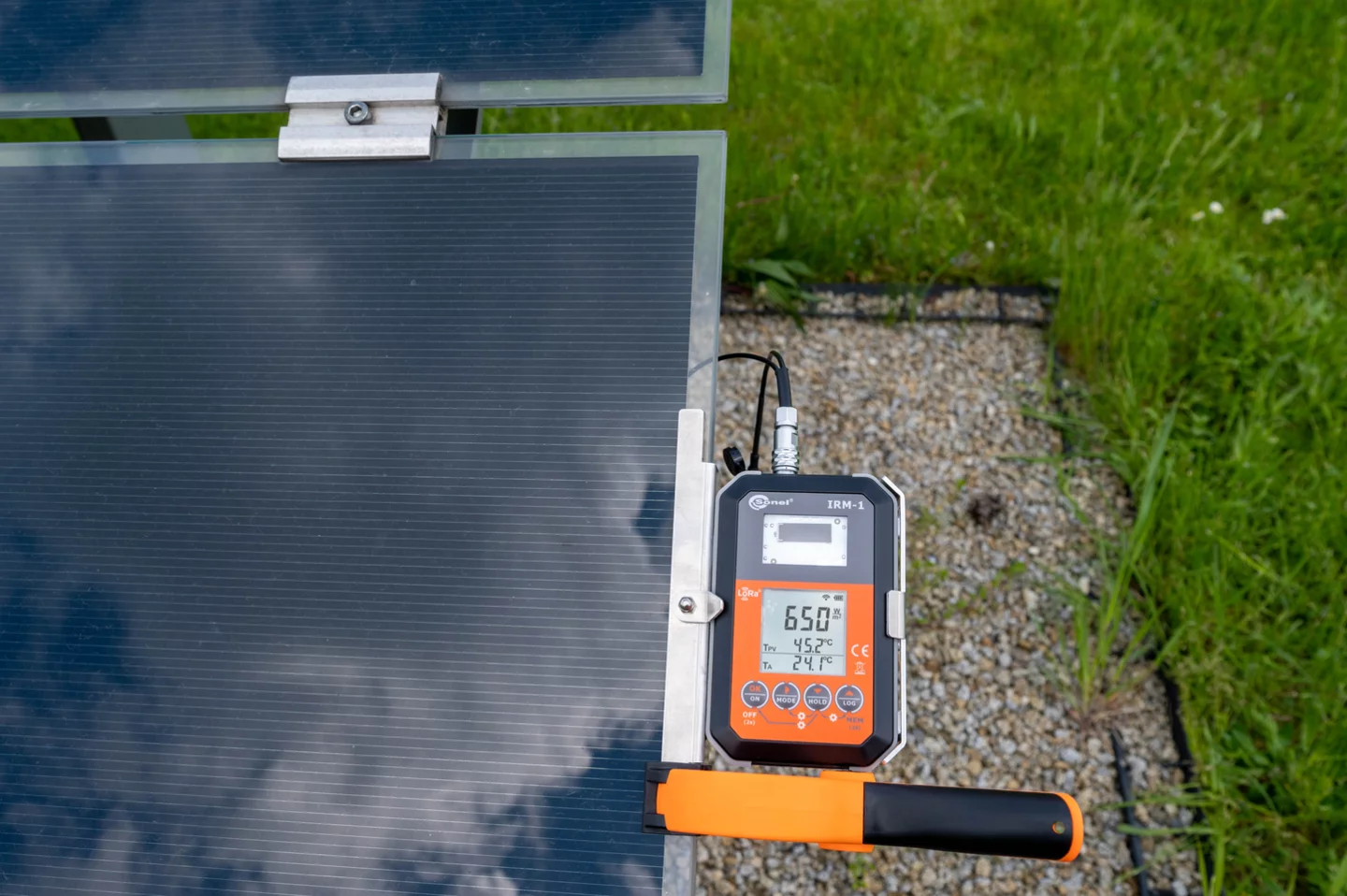

  • Measurement of solar radiation and temperature.
  • The LoRa interface for communication with a master meter – offers a larger range than the Bluetooth technology!
  • Automatic data synchronization with a master meter with reSYNC function.
  • Built-in compass and inclination sensor.
  • Built-in recorder that can be used to record solar radiation before constructing PV systems, as well as to measure the shading of existing systems.
  • Large measurement memory: 999 cache memory cells and 5000 recorder records available (one-time recording) with the option of overwriting them (continuous recording).

IRM-1 | Measured parameters

  • Solar radiation intensity (irradiance) in W/m2 or BTU/ft2 h.
  • PV panel temperature in °C or °F.
  • Ambient temperature in °C or °F.
  • Inclination angle of panels
  • Orientation of the panels with the built-in compass.

IRM-1 | Tightness and durability

The meter performs well in harsh environmental conditions. Protection against the ingress of dust and water is provided by the housing rated at IP65. This is especially important for measurements on photovoltaic systems, which are outdoor installations.

IRM-1 | Communication and software

Measurement data from the IRM-1 can be transferred to a computer via the USB port. In addition, the device has a built-in wireless LoRa interface (Long Range) for automatic data exchange with the master meter – even over long distances.

CMP-1015-PV | Photovoltaics under close control

The device is dedicated to measure DC current and voltage in photovoltaic installations with voltages of 1500 V. The meter also provides precise measurements downstream of frequency converters thanks to the VFD function.
