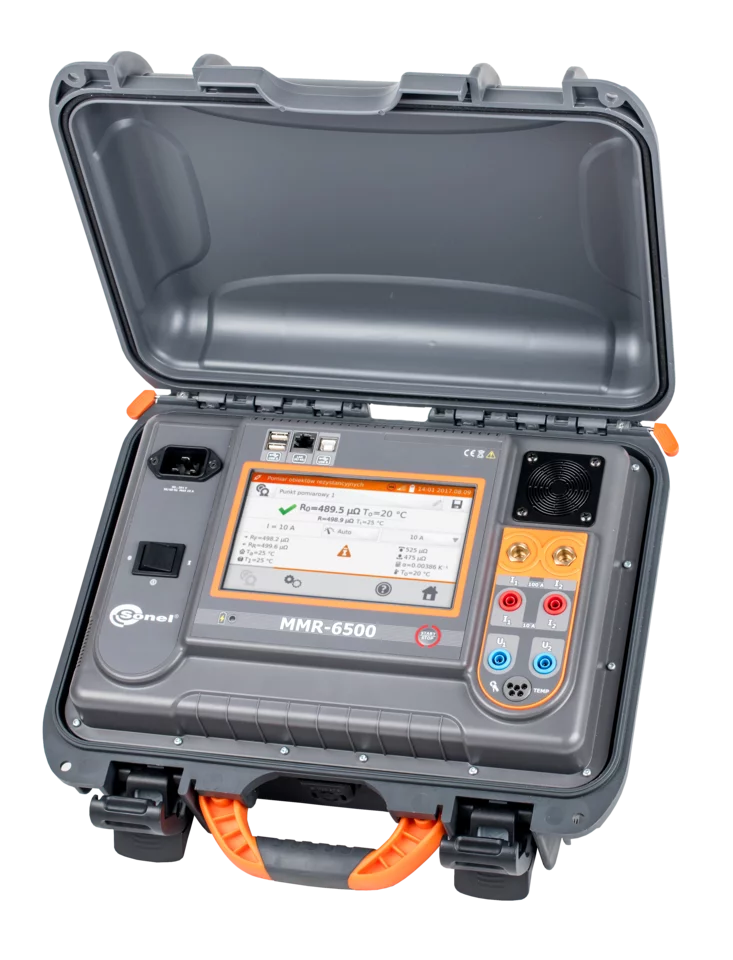

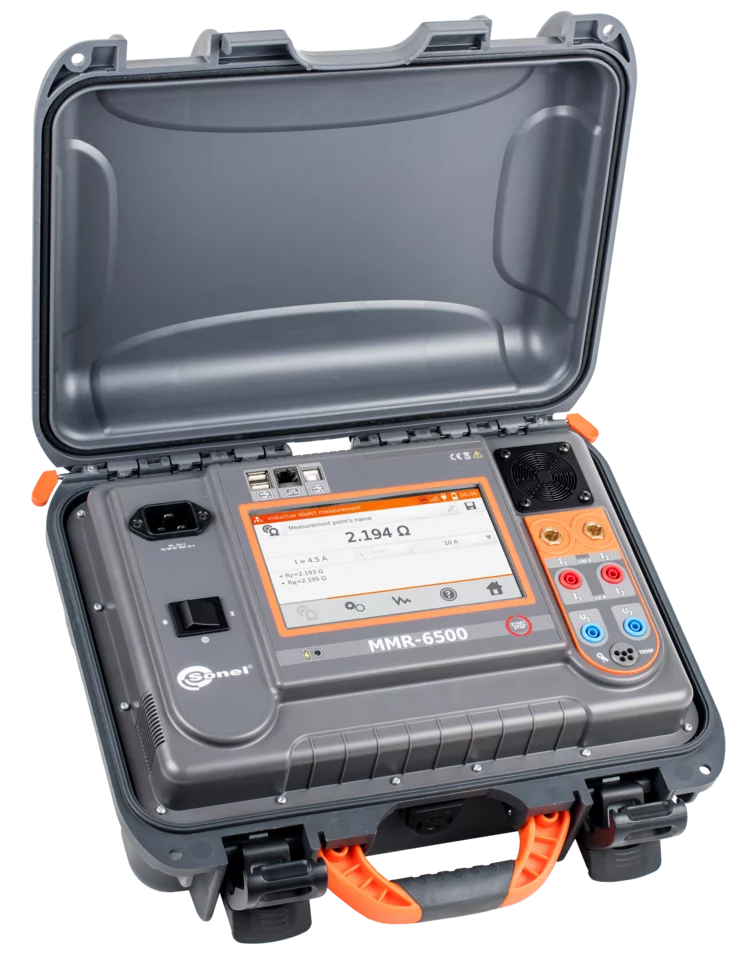

MMR-6500

Microohmmeter

Product features

• measurements of resistive objects with current up to 100 A
• measurements of induction objects up to 10 A
• measurements of objects earthed on both sides (i.e. main joints of HV switches)
• measurement with one- or both-way current flow
• high immunity to outside interference
• measurements temperature of windings
• automatic compensation temperature of objects measured
• a state of art interface with a touch screen and expanded memory

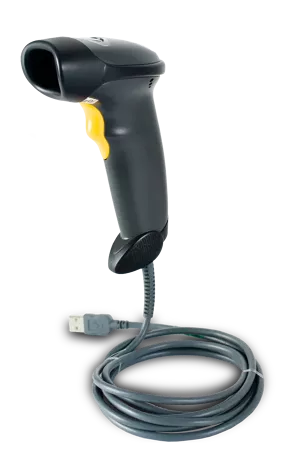

• cooperation with a printer and a 2D barcode reader
• WiFi, USB and LAN communication
• IP67
• it can work in an environment where electromagnetic interferences of 400 kV occur

Application

MMR-6500 micrometer is device with a state of art design with unprecedented  approach to measuring small resistances. The instruments allow to measure resistive objects with a high current and have a unique in his measurement class module for inductive current objects up to 10 A.

Device capabilities

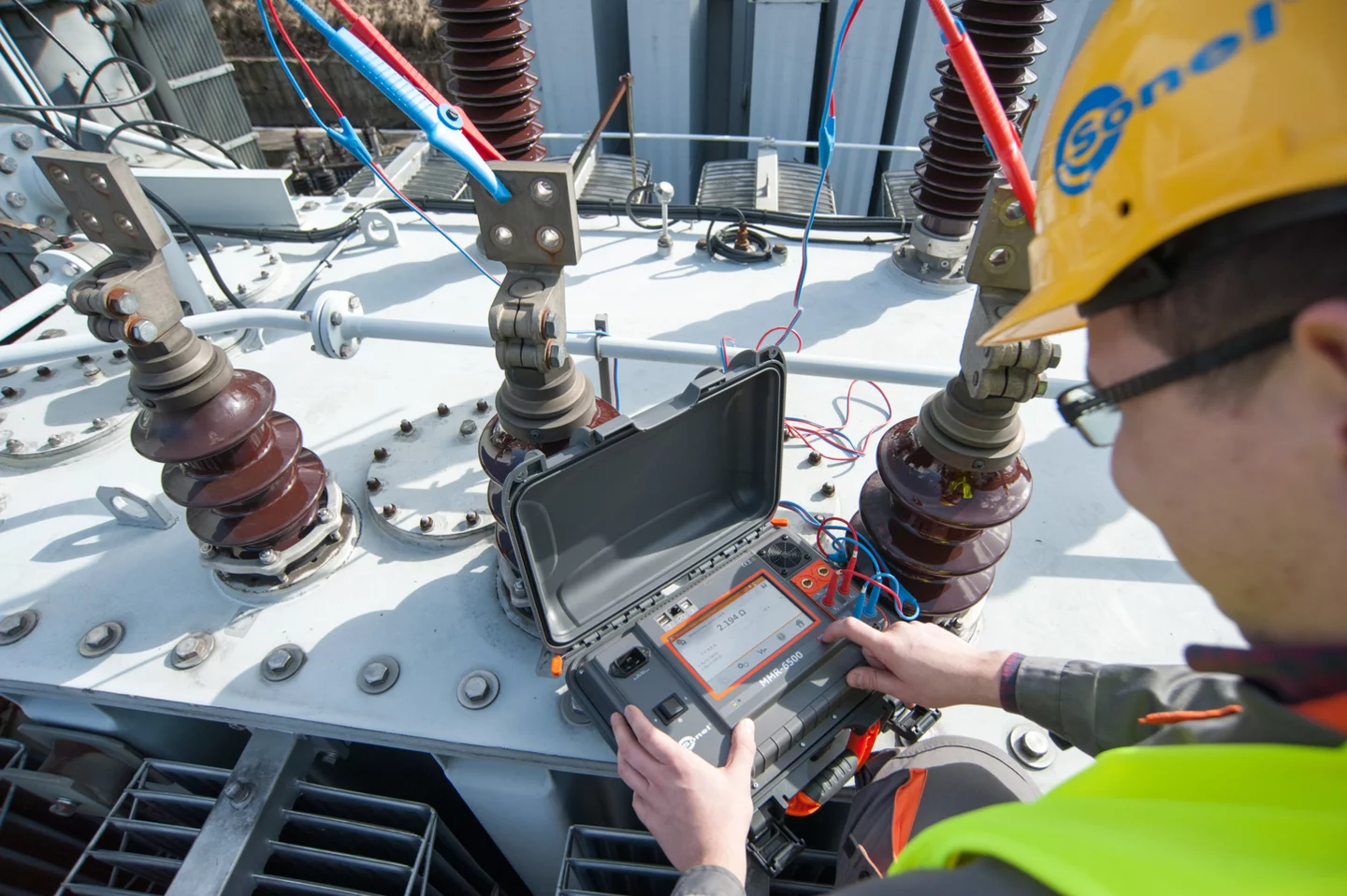

Sonel microhmeter MMR-6500 thanks to the use of special algorithms, measuring functions and a stabilized, non-pulsing measurement current allows user to work in difficult conditions. Possibility of use measurement current up to 100 A and a high power source allows you to measure the contacts of the HV switch with basic uncertainty from 0.25%.

Simplicity of readings

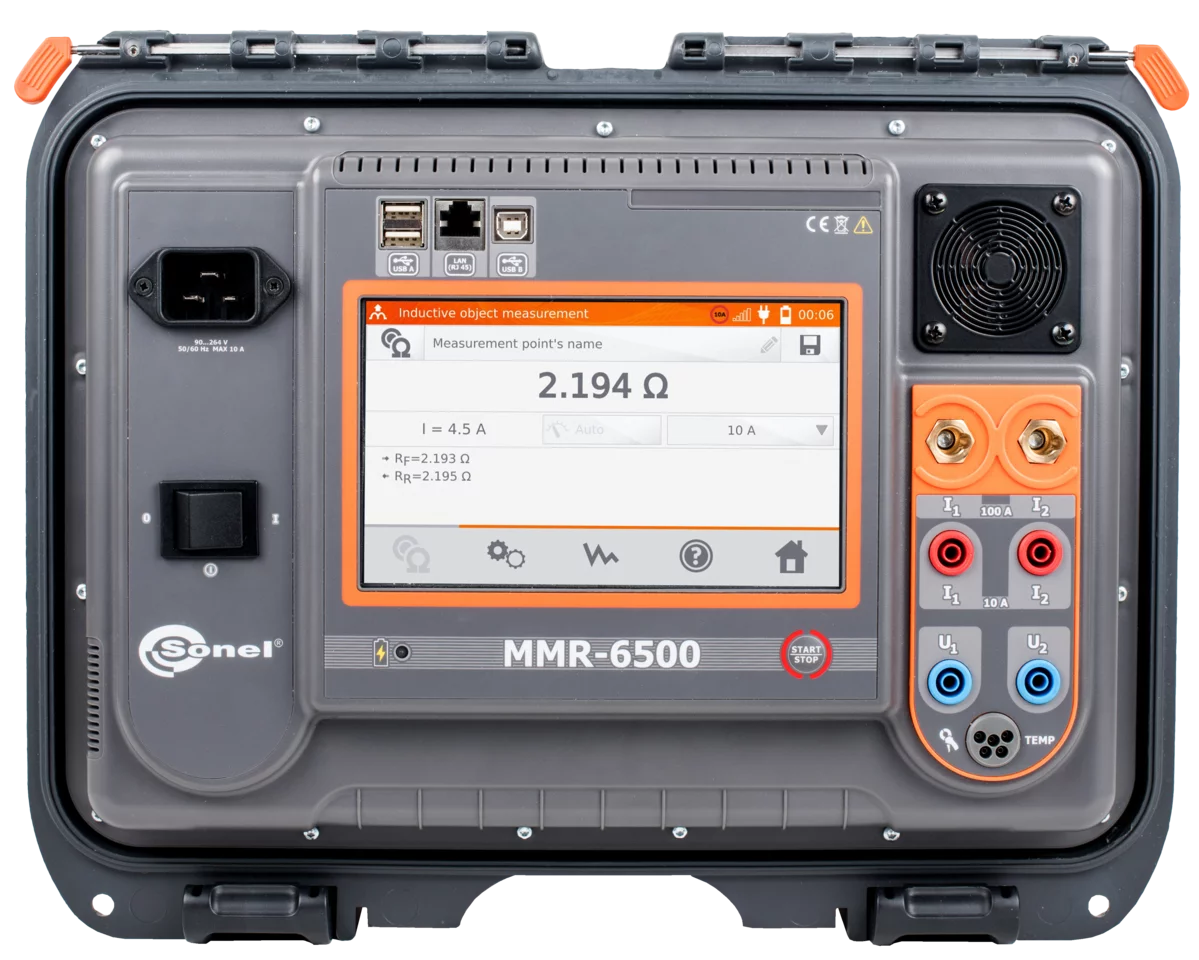

The MMR-6500 microhmeter is equipped with readable, touch screen, 5-inch colored display with a resolution of 800x480 pixels for convenience of readings measurement results.

Help system

The use of a large, readable display allowed for use helpful appetent drawings how to use the meter.
