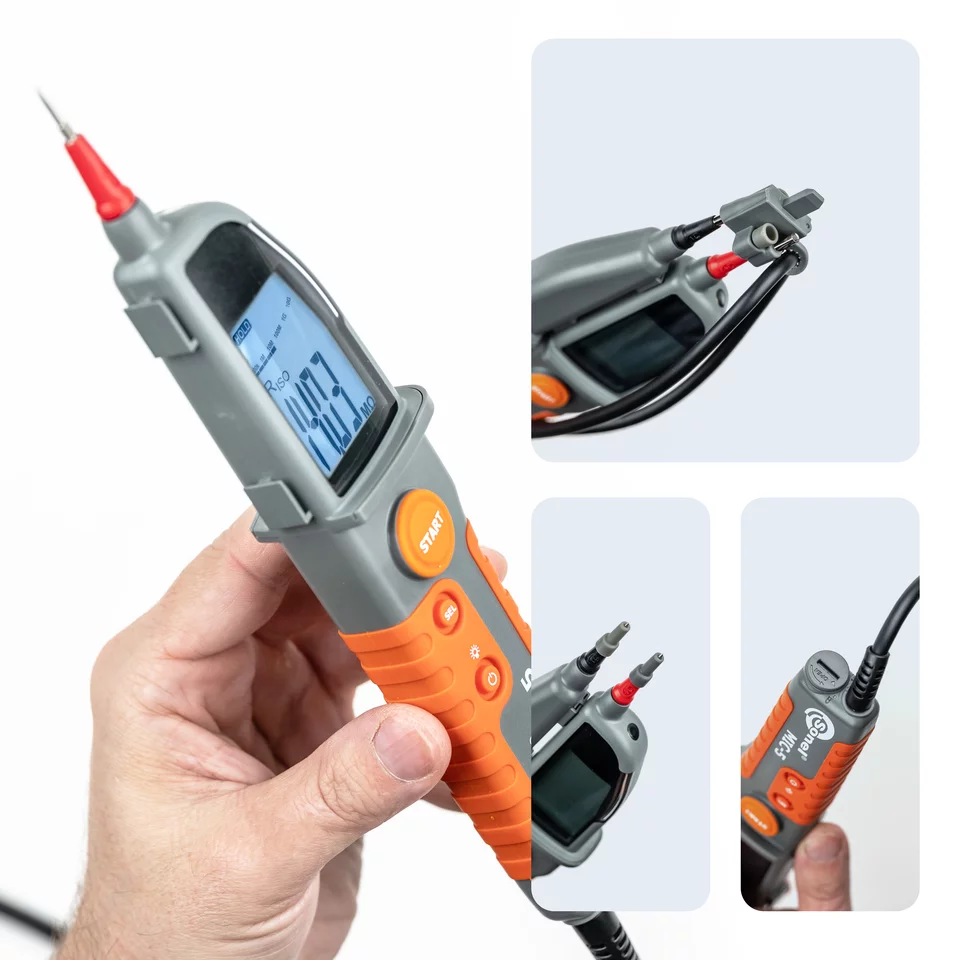

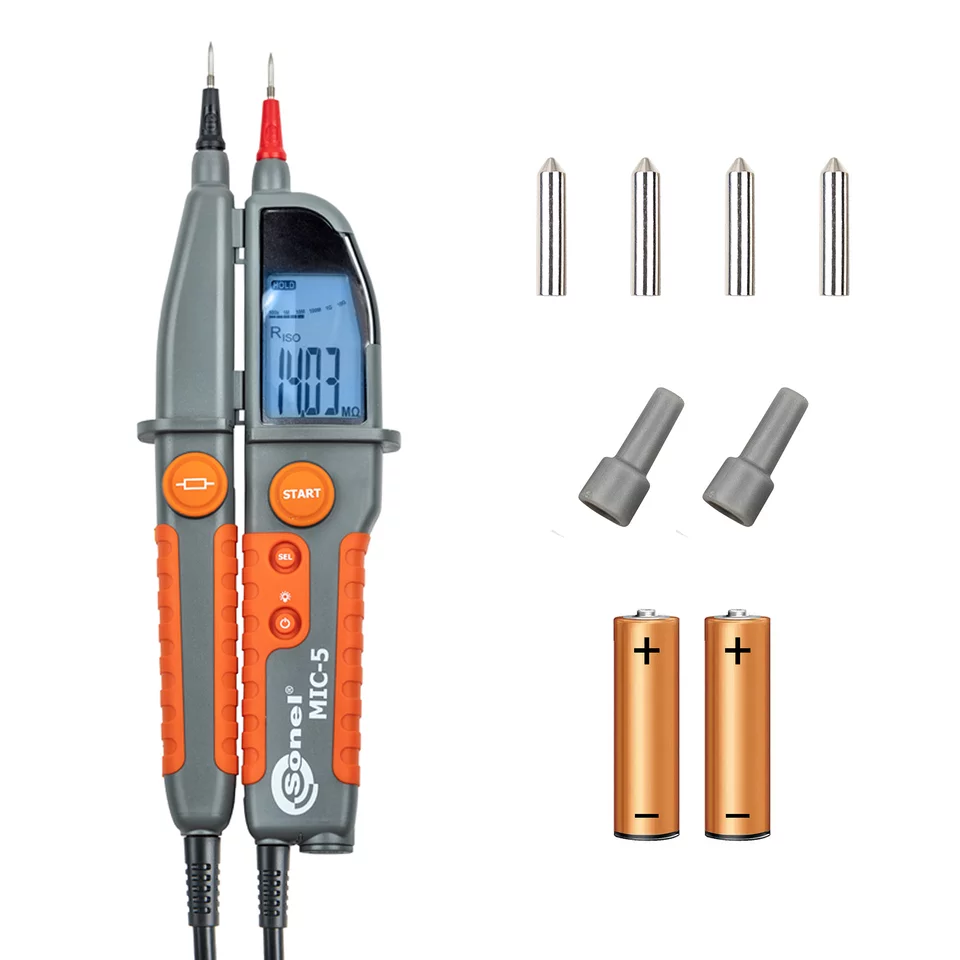

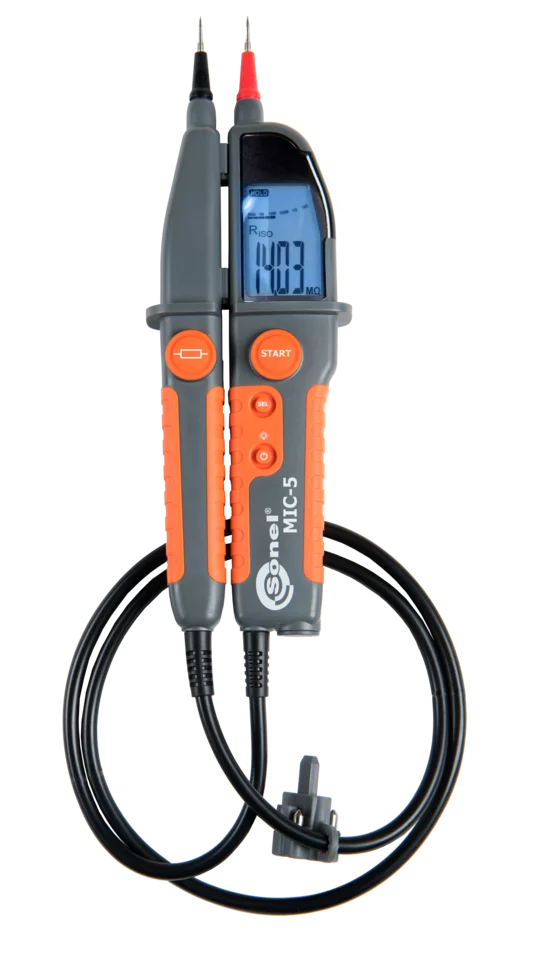

MIC-5
Insulation resistance meter
Index cat. WMGBMIC5
ean 5907624004528
Ingress protection: IP 65
Measurement category: CAT III 1000 V, CAT IV 600 V

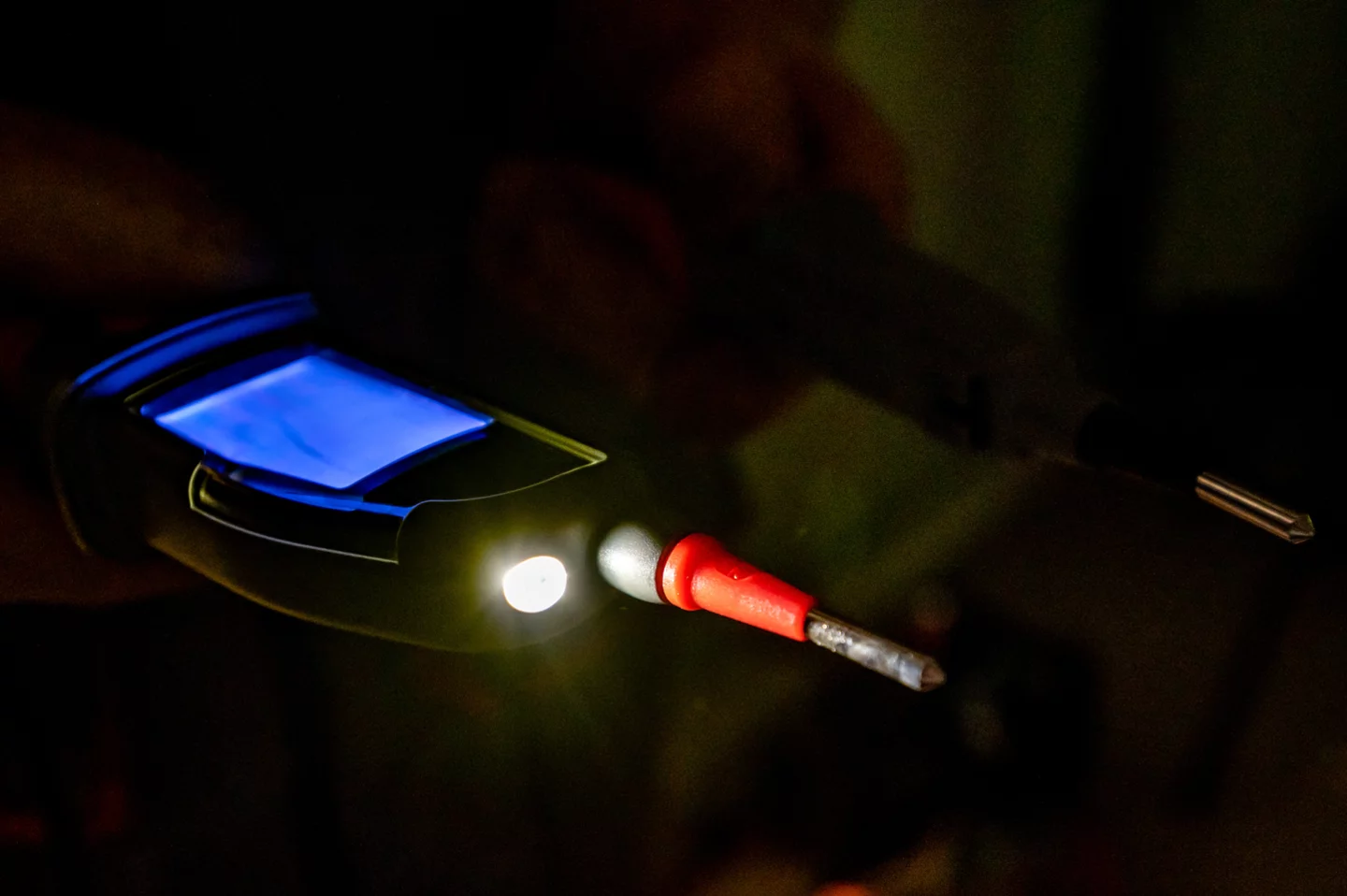

Display: monochrome, backlit, segmented

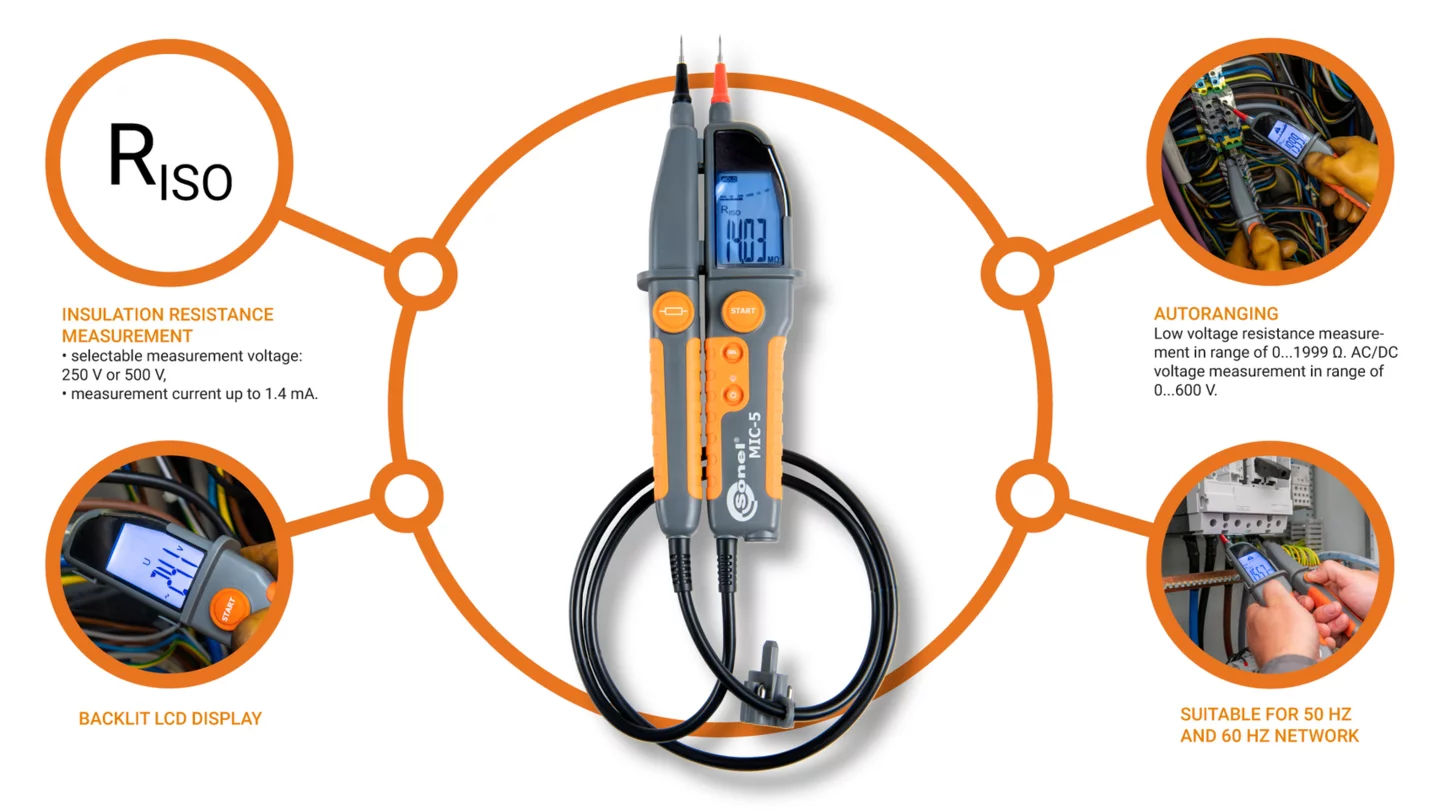

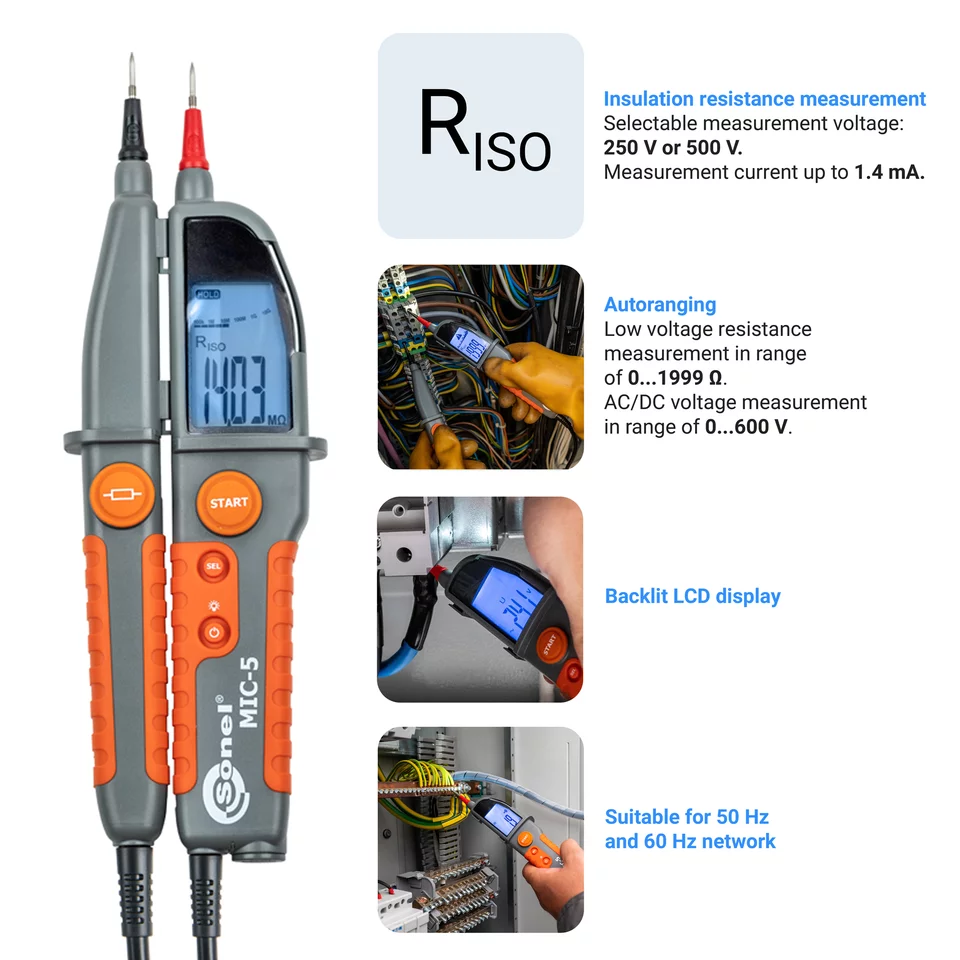

Handy in insulation resistance measurements

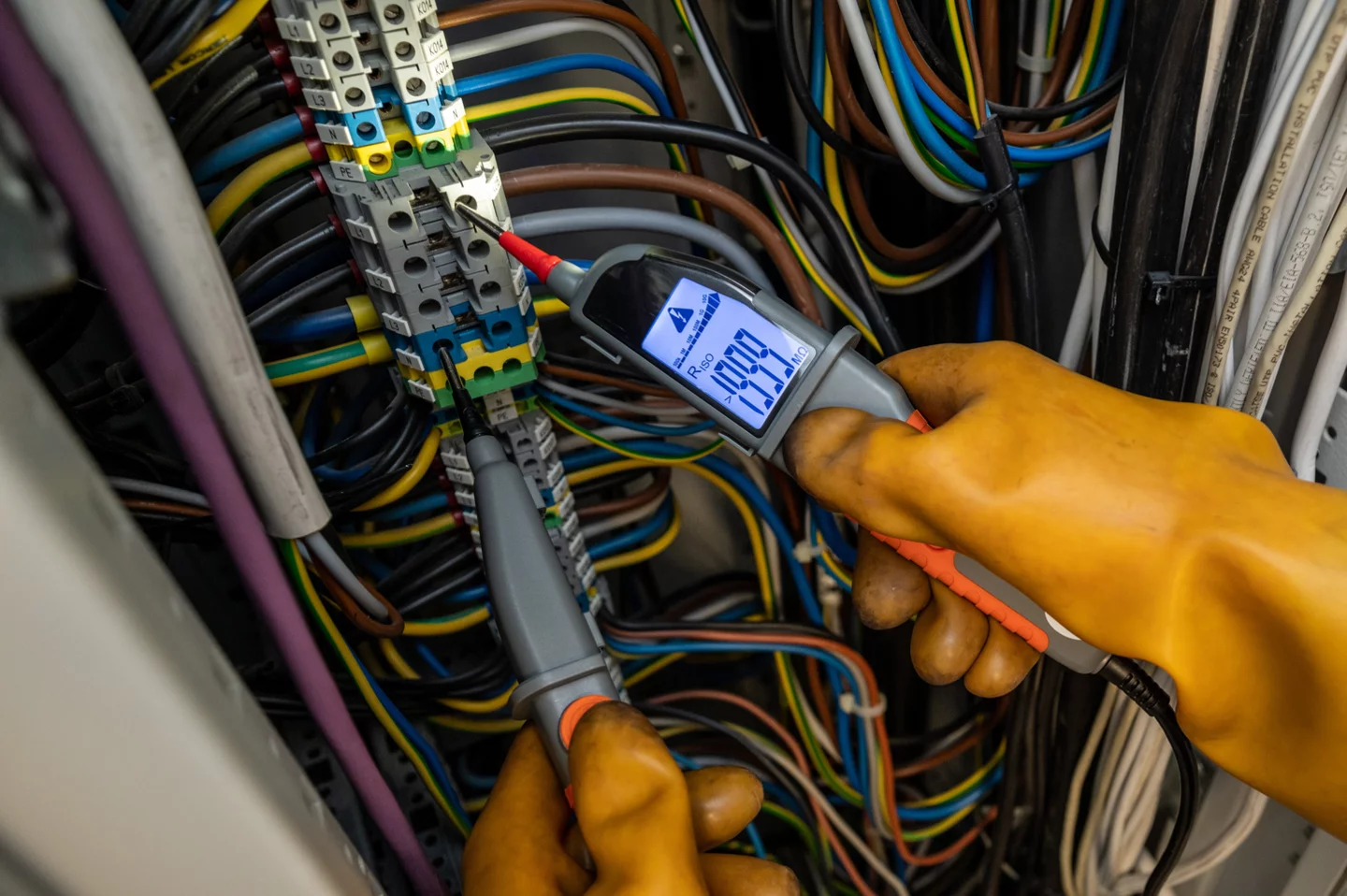

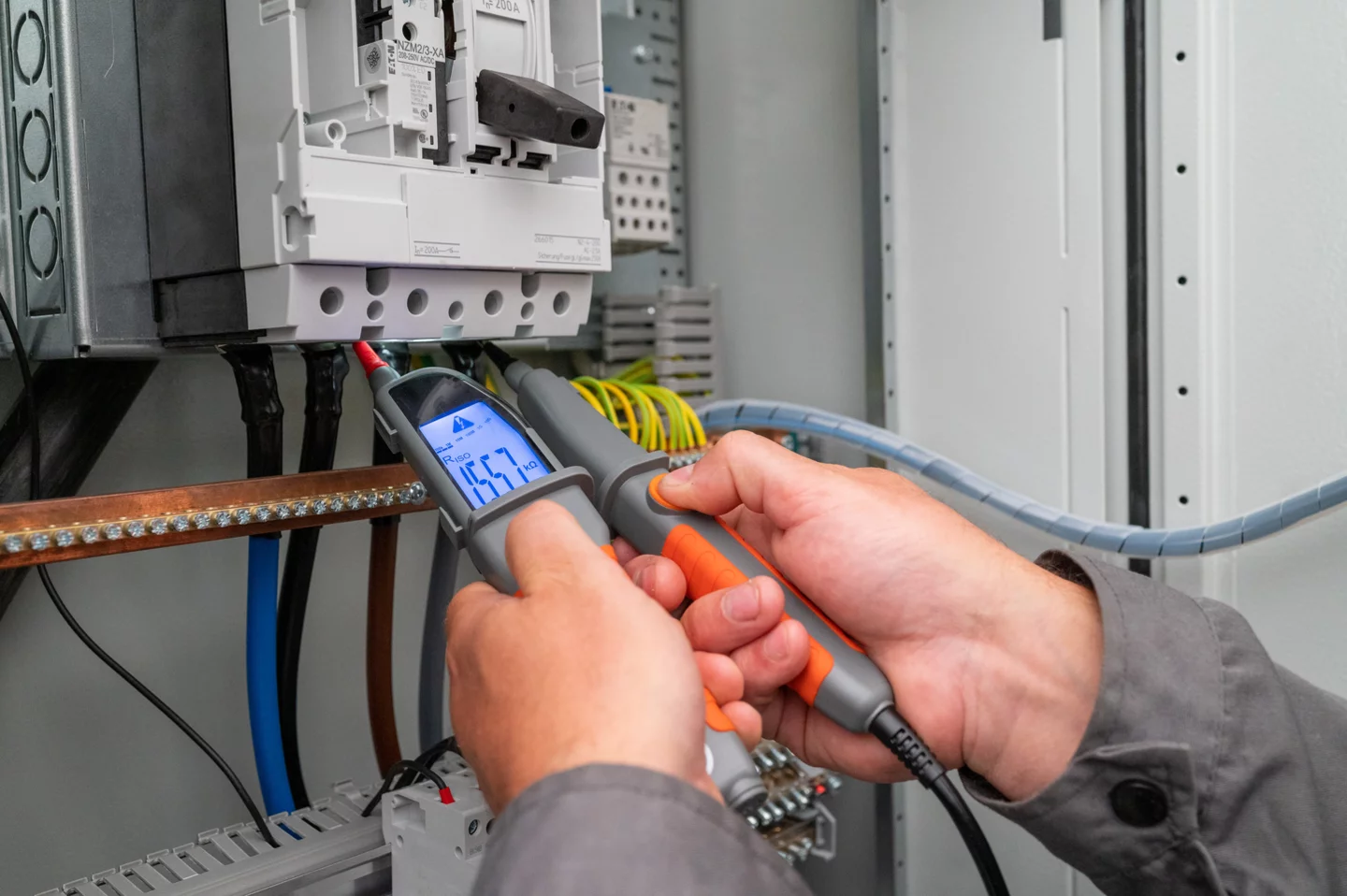

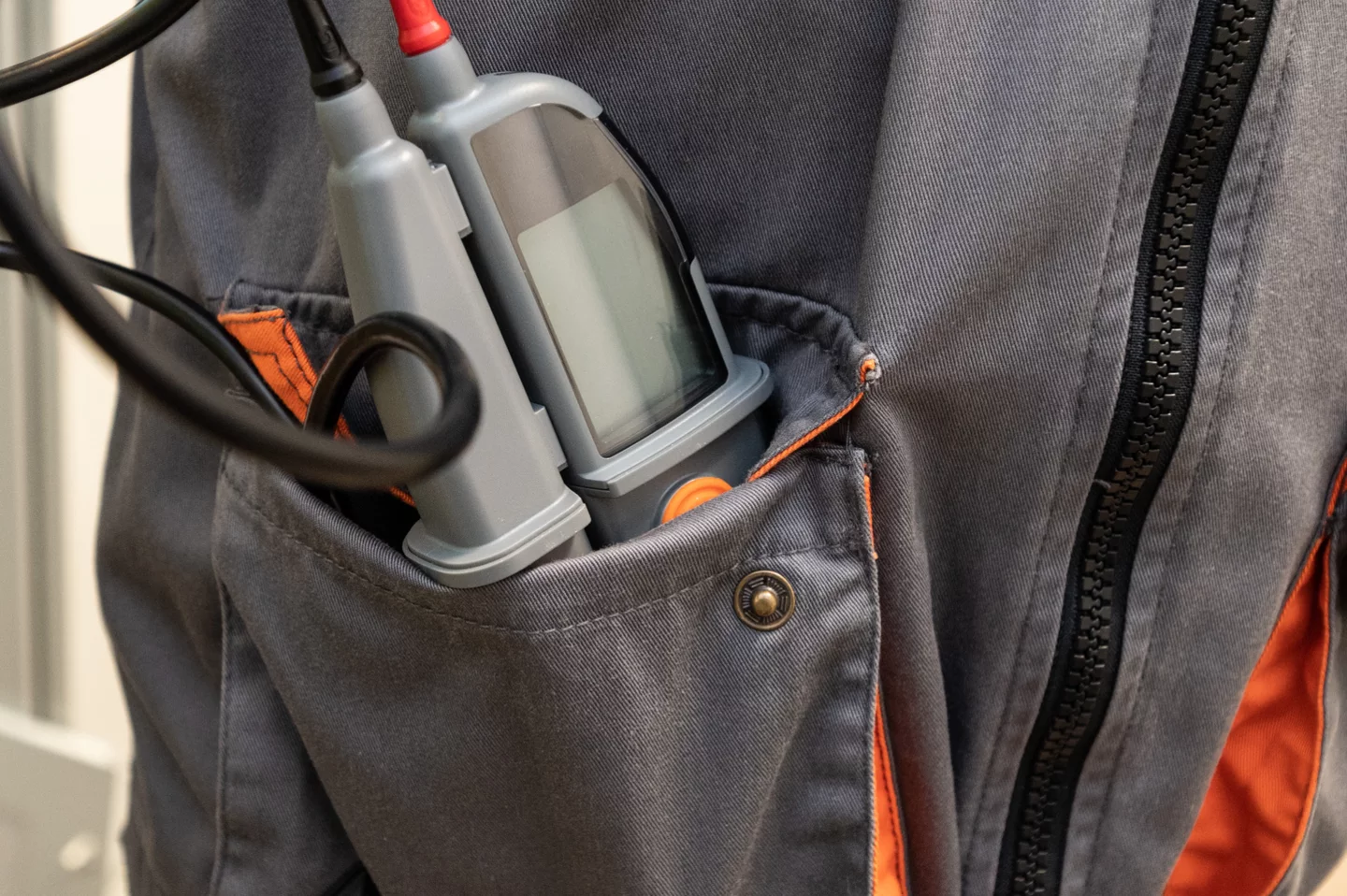

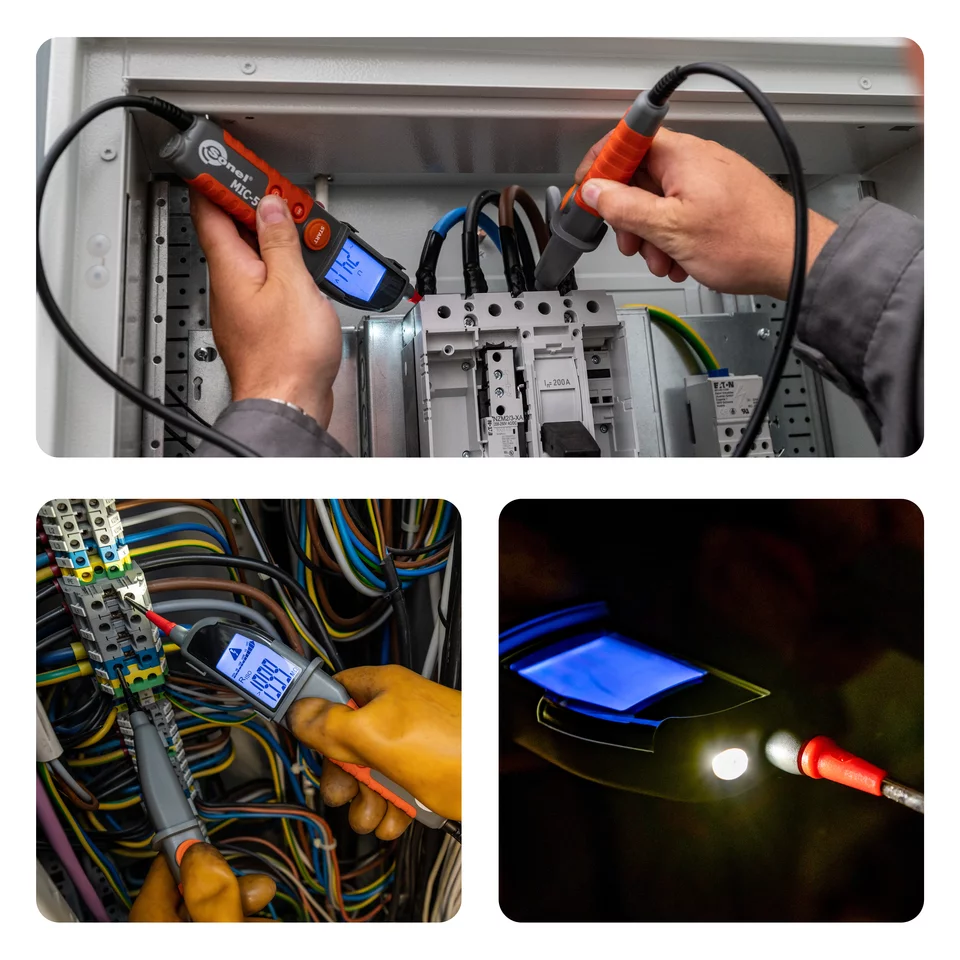

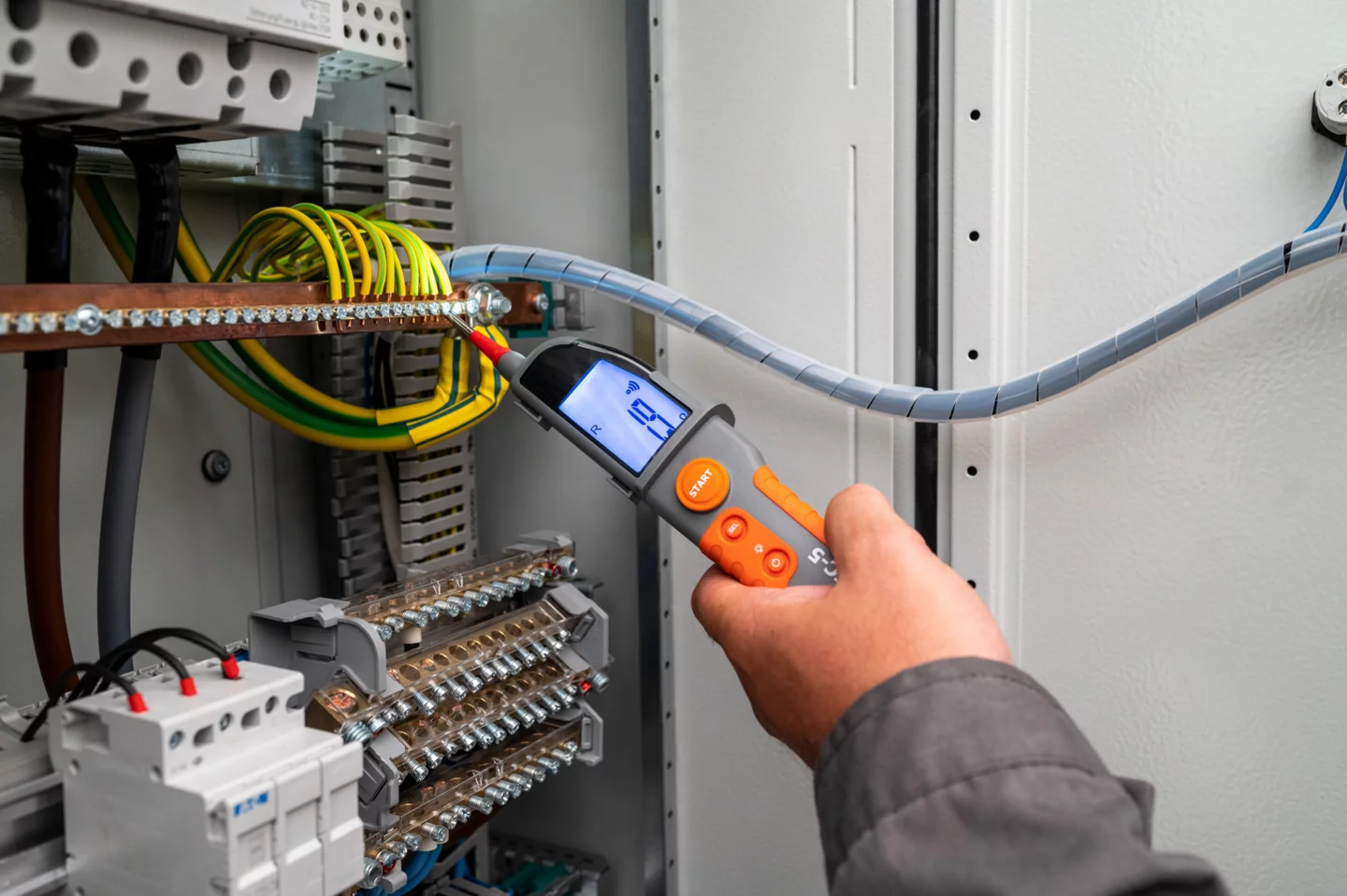

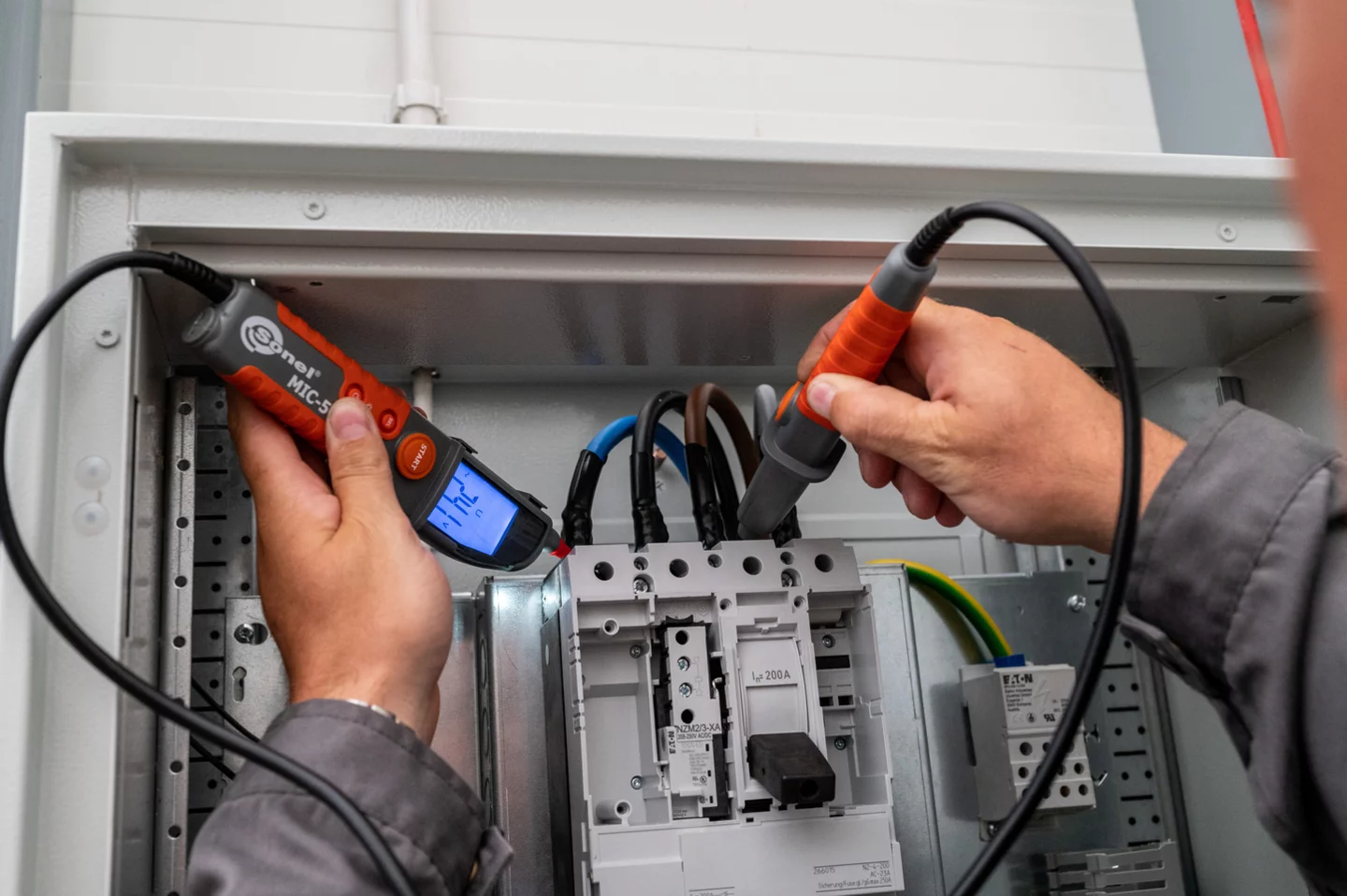

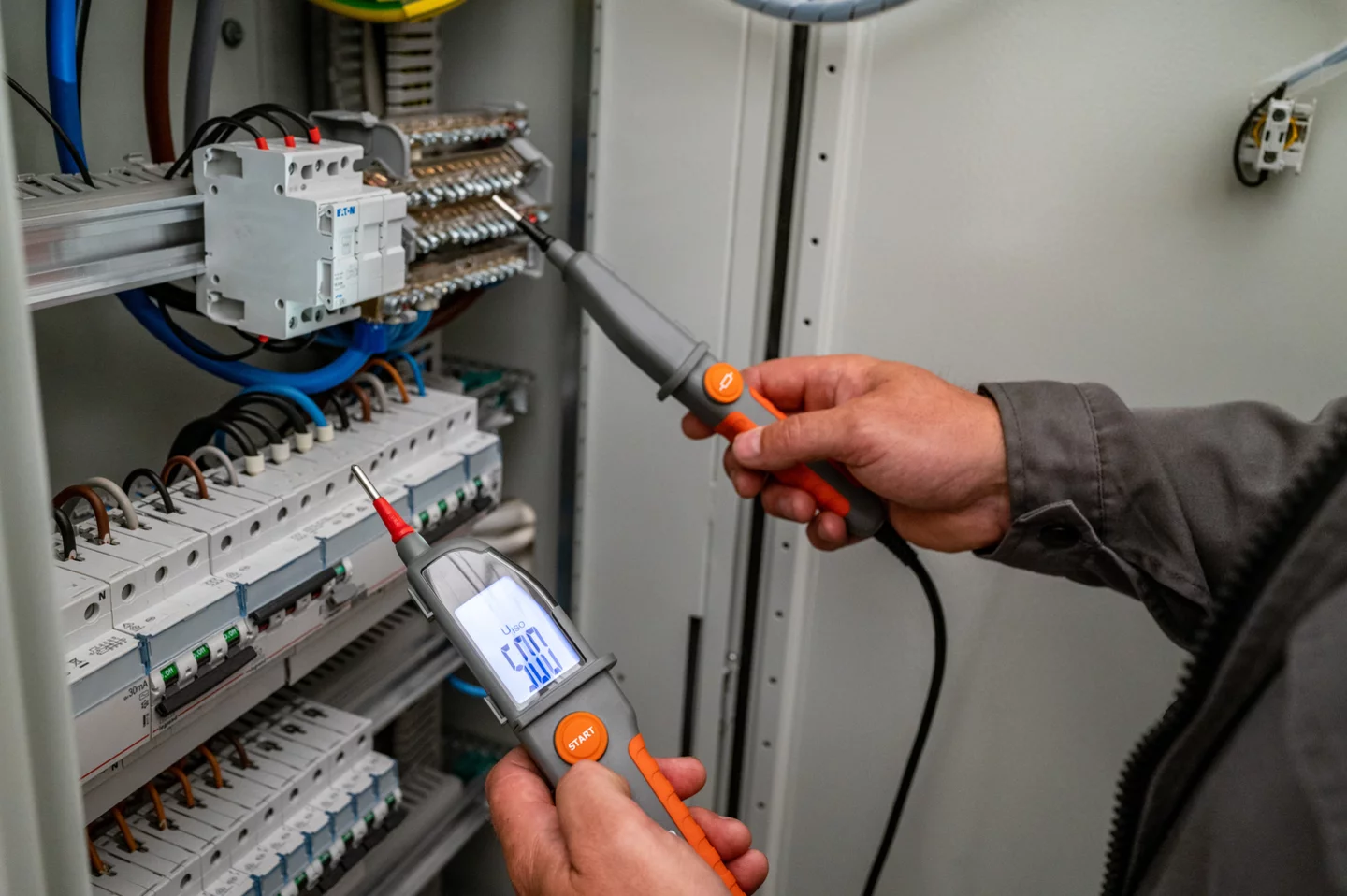

The MIC-5 is a handy insulation resistance meter that any self-respecting electrician can sling around his neck like a doctor's stethoscope in order to always have it at hand. The instrument allows for simple and quick insulation evaluation, checking continuity of connections and measuring voltage on the object.
Features
| Measurement functions | Measurement range | Display range | Resolution | Accuracy |
|---|---|---|---|---|
| AC/DC voltage | 0 V…600 V | 0 V…600 V | 1 V | ±(3% m.v. + 2 digits) |
| Insulation resistance | ||||

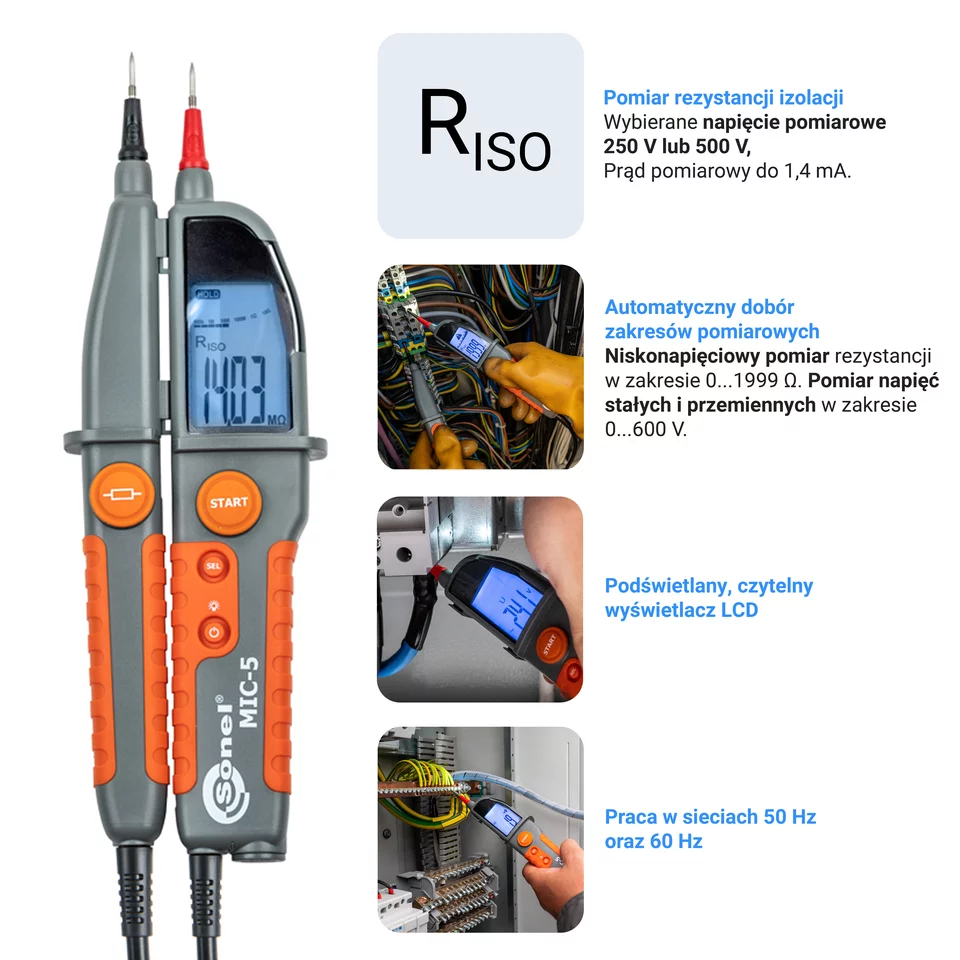

| Measuring voltage 250 V | 250 kΩ…1000 MΩ acc. to IEC 61557-2 | 1 kΩ…1000 MΩ | from 1 kΩ | from ±(3% m.v. + 8 digits) |
| Measuring voltage 500 V | 500 kΩ…1999 MΩ acc. to IEC 61557-2 | 1 kΩ…1999 MΩ | from 1 kΩ | from ±(3% m.v. + 8 digits) |
| Connection resistance measurement | 0,0 Ω…1999 Ω | 0,0 Ω…1999 Ω | from 0,1 Ω | ±(4% m.v. + 3 digits) |
“m.v.” - measured value
Safety and work conditions
Other information
| Parameter | Value |
|---|---|
| Net weight (kg) | 0.2 |
| Package weight (kg) | 0.3 |
| Package width (cm) | 9.2 |
| Package height (cm) | 33 |
| Package length (cm) | 5.5 |
