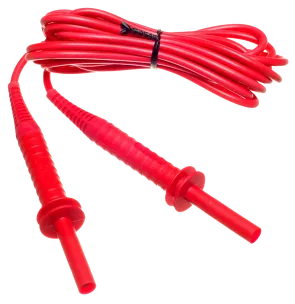

Test lead 10 m 5 kV (banana plugs) red

14 455,00 ₹

Available

Test lead 10 m 5 kV (banana plugs) blue

14 455,00 ₹

Available

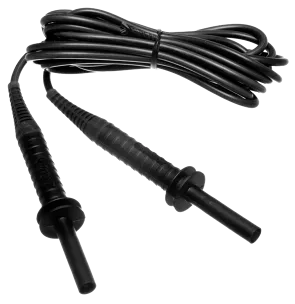

Test lead 5 m 5 kV (banana plugs, shielded)...

14 455,00 ₹

Available

Test lead 5 m 5 kV (banana plugs) red

10 325,00 ₹

Available

Test lead 5 m 5 kV (banana plugs) blue

10 325,00 ₹

Available

AutoISO-2511

Adapter for multi-core cables

Inquire

Measure insulation resistance up to 2 TΩ

The functional insulation resistance meter Sonel MIC-2511 may be used to measure the insulation resistance using test voltage up to 2500 V. It surprises with numerous functions hidden in a neat and handy form. Due to its parameters, its robust casing with IP65 protection level, its low battery power consumption and the possibility of recharging during measurements, the meter is a reliable tool that can be used in many areas. It is ideal for checking industrial installations and catenary networks, and is also successfully used in residential buildings. The advantages of this equipment are especially appreciated by electricians working in maintenance, testing motors, cables and street lighting. The Sonel MIC-2511 meter is also useful for measurements during construction and maintenance of photovoltaic installations. It is a reliable solution created for the needs of telecommunications network installers and heating network operators, facilitating the control of the alarm system of pre-insulated pipes.

The product was developed to fully or partially meet the standards:

IEC 61340-2-3 Electrostatics - Part 2-3: Methods of test for determining the resistance and resistivity of solid planar materials used to avoid electrostatic charge accumulation
IEC 61340-4-1 Electrostatics - Part 4-1: Standard test methods for specific applications - Electrical resistance of floor coverings and installed floors
IEC 61340-4-3 Electrostatics - Part 4-3: Standard test methods for specific applications - Footwear
IEC 61340-4-5 Electrostatics - Part 4-5: Standard test methods for specific applications - Methods for characterizing the electrostatic protection of footwear and flooring in combination with a person
IEC 61340-4-6 Electrostatics - Part 4-6: Standard test methods for specific applications - Wrist straps
IEC 61340-4-7 Electrostatics - Part 4-7: Standard test methods for specific applications - Ionization
IEC 61340-4-9 Electrostatics - Part 4-9: Standard test methods for specific applications - Garments
IEC 61340-5-1 Electrostatics - Part 5-1: Protection of electronic devices from electrostatic phenomena - General requirements
IEC TR 61340-5-2 Electrostatics - Part 5-2: Protection of electronic devices from electrostatic phenomena - User guide
IEC 61340-5-3 Electrostatics - Part 5-3: Protection of electronic devices from electrostatic phenomena - Properties and requirements classification for packaging intended for electrostatic discharge sensitive devices
IEC 62631-3-1 Dielectric and resistive properties of solid insulating materials - Part 3-1: Determination of resistive properties (DC methods) - Volume resistance and volume resistivity - General method
HD 60364-6 Low-voltage electrical installations - Part 6: Verification
IEC 1081 Pneumatic instruments driven by associated process gas - Safe installation and operating procedures - Guidelines

Sonel MeasureEffect™

The meter is a part of the Sonel MeasureEffect™ platform. It is a comprehensive system that enables you to take measurements, store and manage data, and provides multi-level control of your instruments.

Features

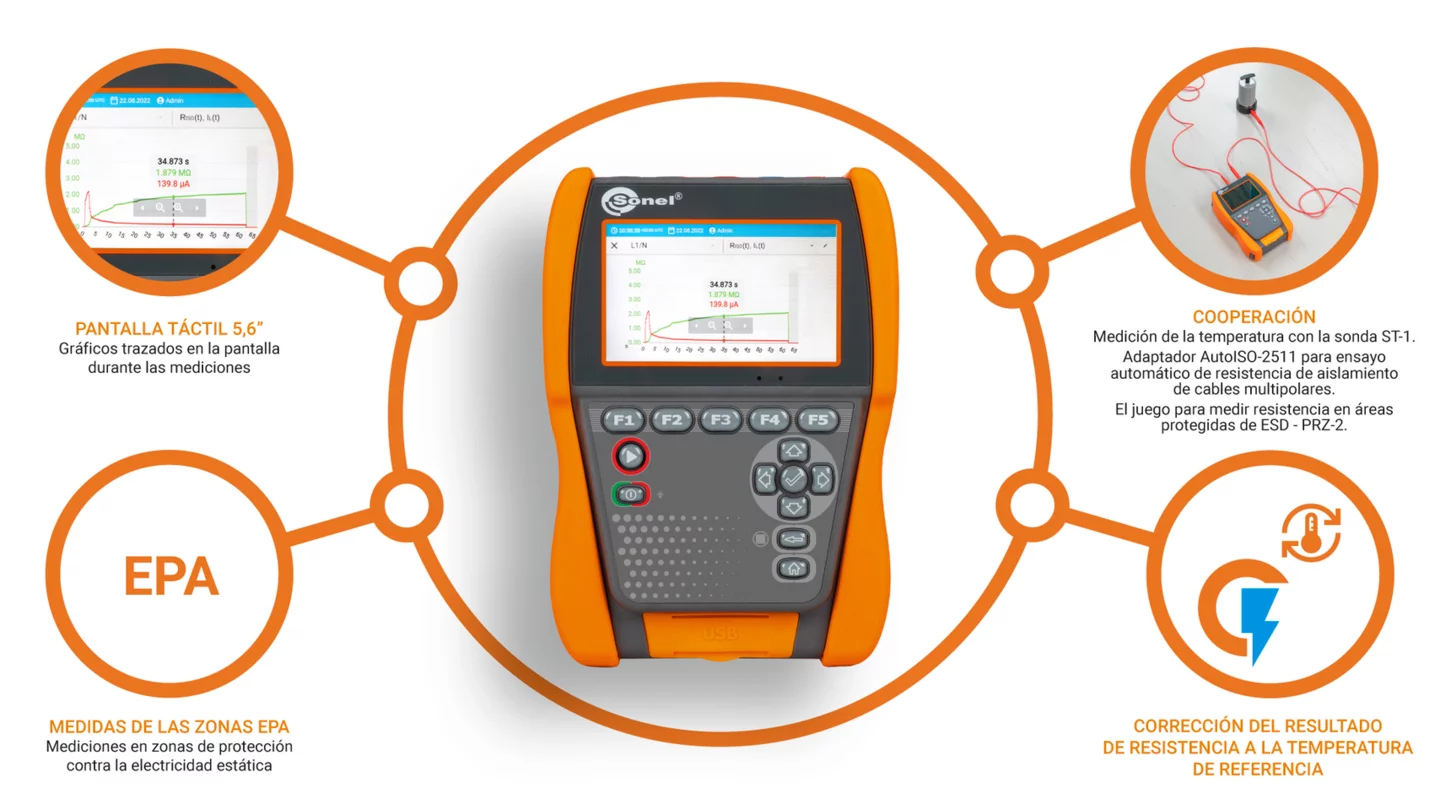

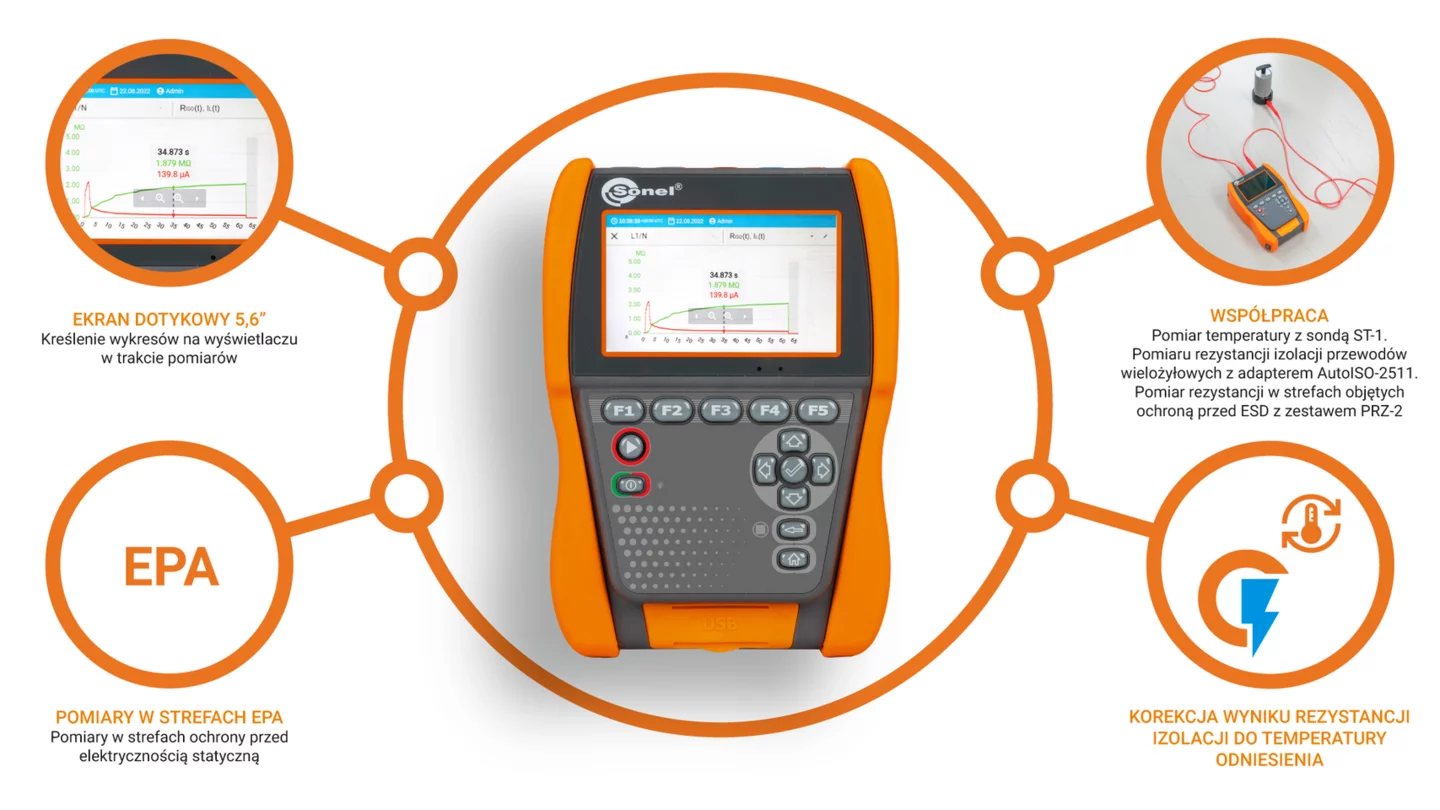

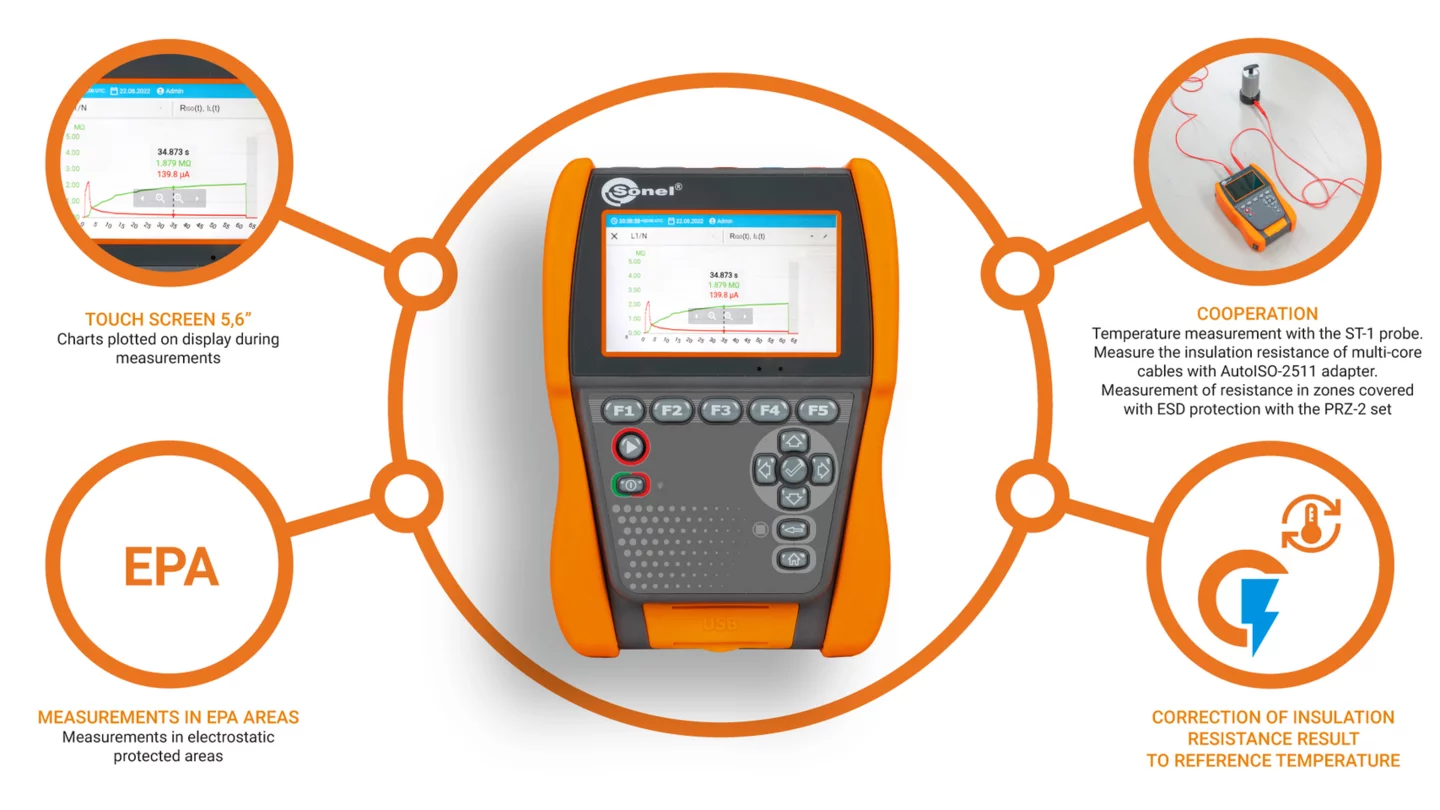

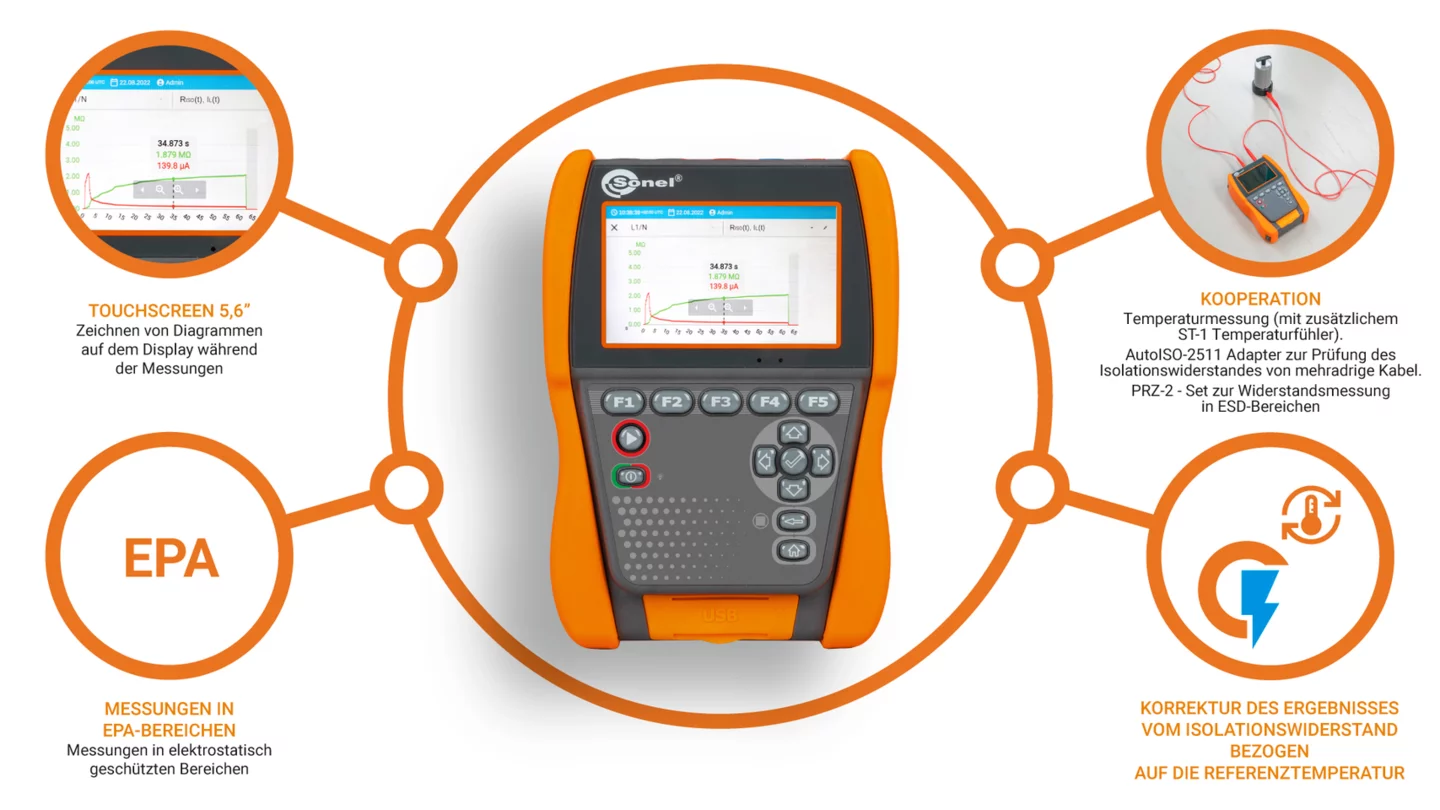

Measurement voltage within the range of 10…2500 V: selected from 10 V, 25 V, 100 V, 250 V, 500 V, 1000 V, 2500 V or 10…2500 V selected in steps of 10 V
Insulation resistance measurements with a voltage of 10 V of the supervisory loop of fire alarm systems
Testing surge protecting devices (SPD)
Charts plotted on display during measurements

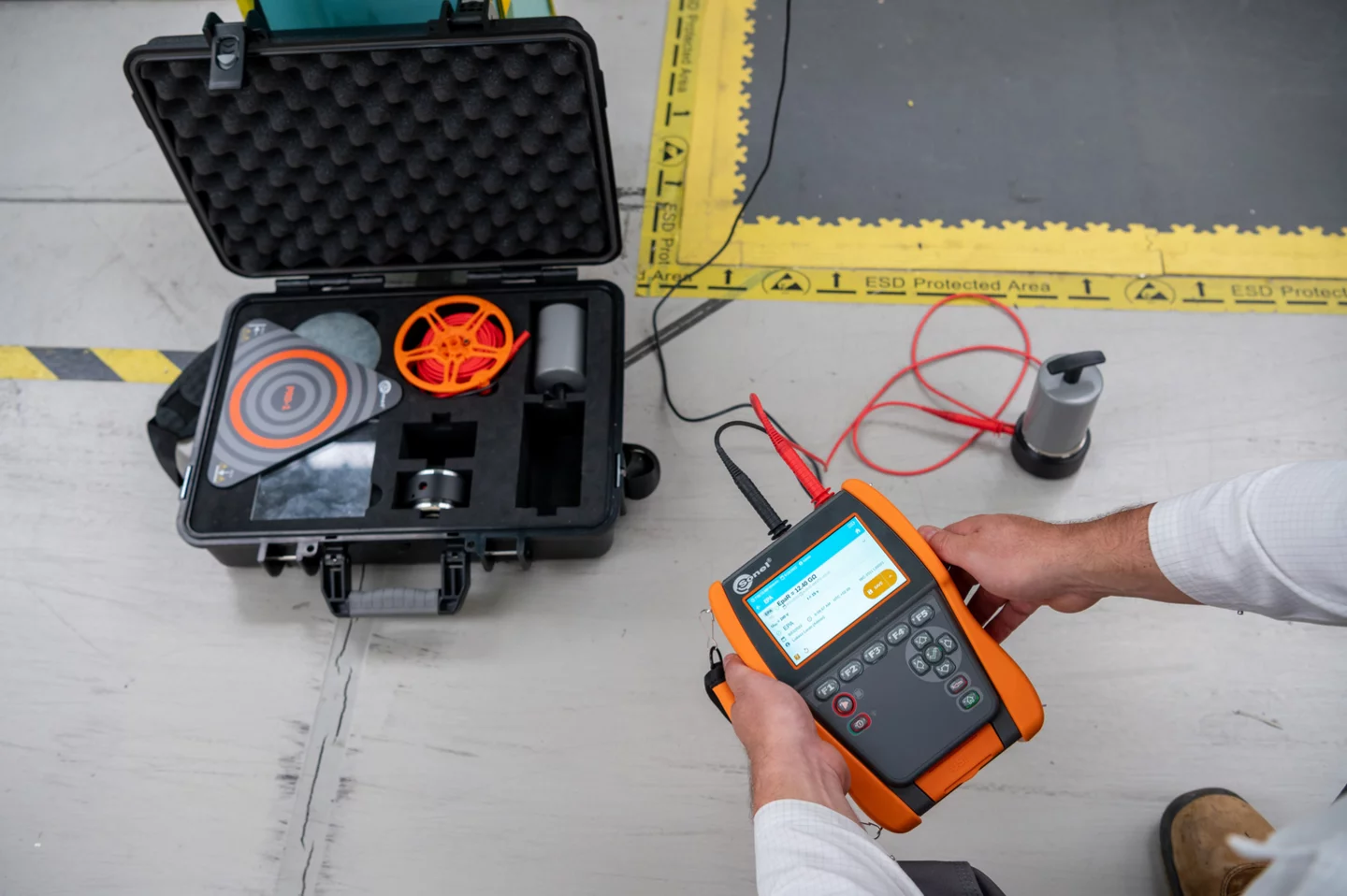

Measurements in electrostatic protected areas (EPA)
Correction of insulation resistance result to reference temperature
Continuous reading of measured insulation resistance or leakage current
Automatic discharge of the measured object’s capacitance upon completion of insulation resistance measurement
Sound signaling of five-second time intervals, facilitating capture of time characteristics
Timing of measurement times T₁, T₂ and T₃ for measurement of one or two absorption coefficients (Ab1, Ab2 or DAR, PI) within the range of 1… 600 s
Automatic measurement of all resistance combinations of 3-, 4- and 5-core cords and power cords by means of the optional AutoISO-2511 adapter
Reading of actual measurement voltage during measurement
Measurement current <2 mA
Protection against measurement of live objects
Two- or three-lead method of insulation resistance measurement

Additional features

Measurement of leakage current during measurement of R_ISO
Capacitance measurement during measurement of R_ISO
Low-voltage measurement of circuit continuity and resistance

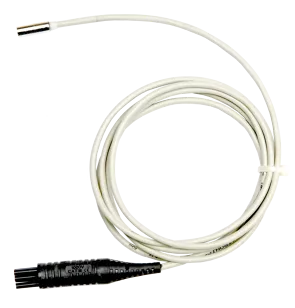

Temperature measurement (with the use of the optional ST-1 temperature probe)
Measurement of direct and alternating voltages within the range of 0...1500 V
9999-entry memory, data transmission to PC via USB cable
Power supplied by rechargeable battery
Backlit keyboard
The instrument meets the requirements laid down by standard EN IEC 61557

Application

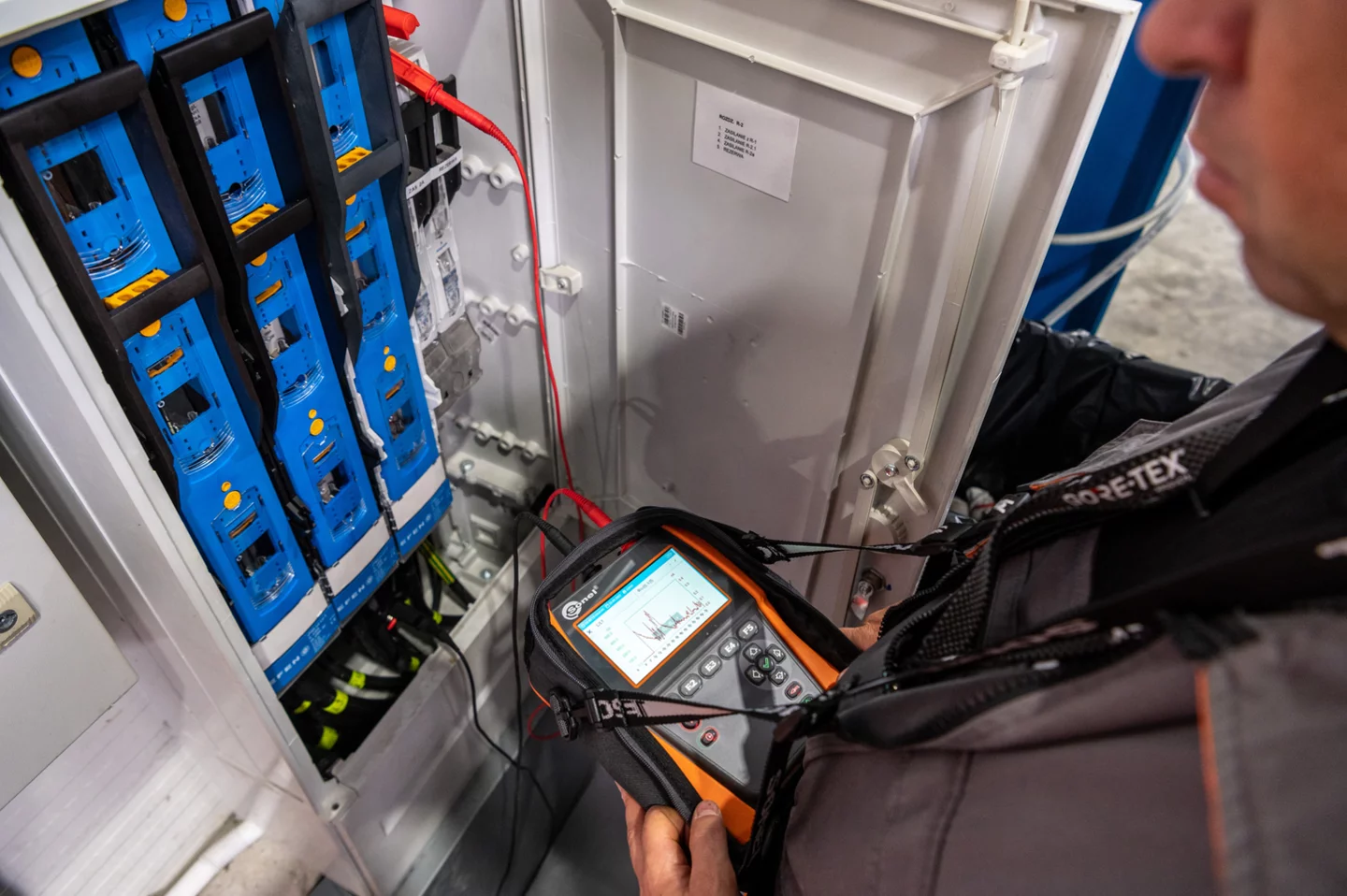

This insulation resistance meter is a device with a wide range of applications. It may be successfully operated both in residential construction industry and for inspecting industrial systems or traction networks. Due to its characteristics – excellent performance, low power consumption from batteries, the option of charging during measurements, convenience of use and a high ingress protection level – it is often used by electricians working in maintenance teams, testing motors, cables, street lighting or at the construction and maintenance of photovoltaic systems. The device perfectly matches the needs of installers of telecommunications networks and operators of district heating networks, where the inspection of alarm system on insulated pipes is necessary.

Features

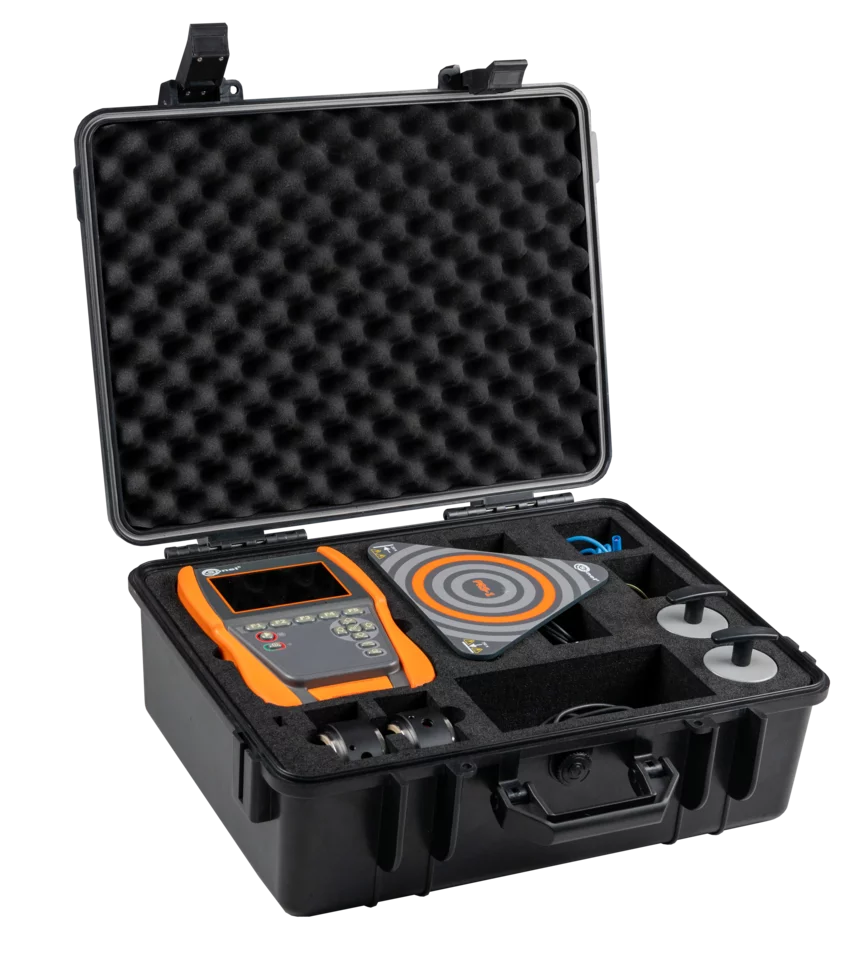

The meter may be used to measure the insulation resistance using test voltage up to 2500 V. When testing cables, it automatically discharges their load at the moment of completing the measurement. Together with the PRZ-2 (kit for measuring resistance in zones with ESD protection), it is a comprehensive tool for technicians dealing with the protection of plants against static electricity.

The device allows safety control of residential, commercial and industrial electrical installations. Measurements can be easily automated with

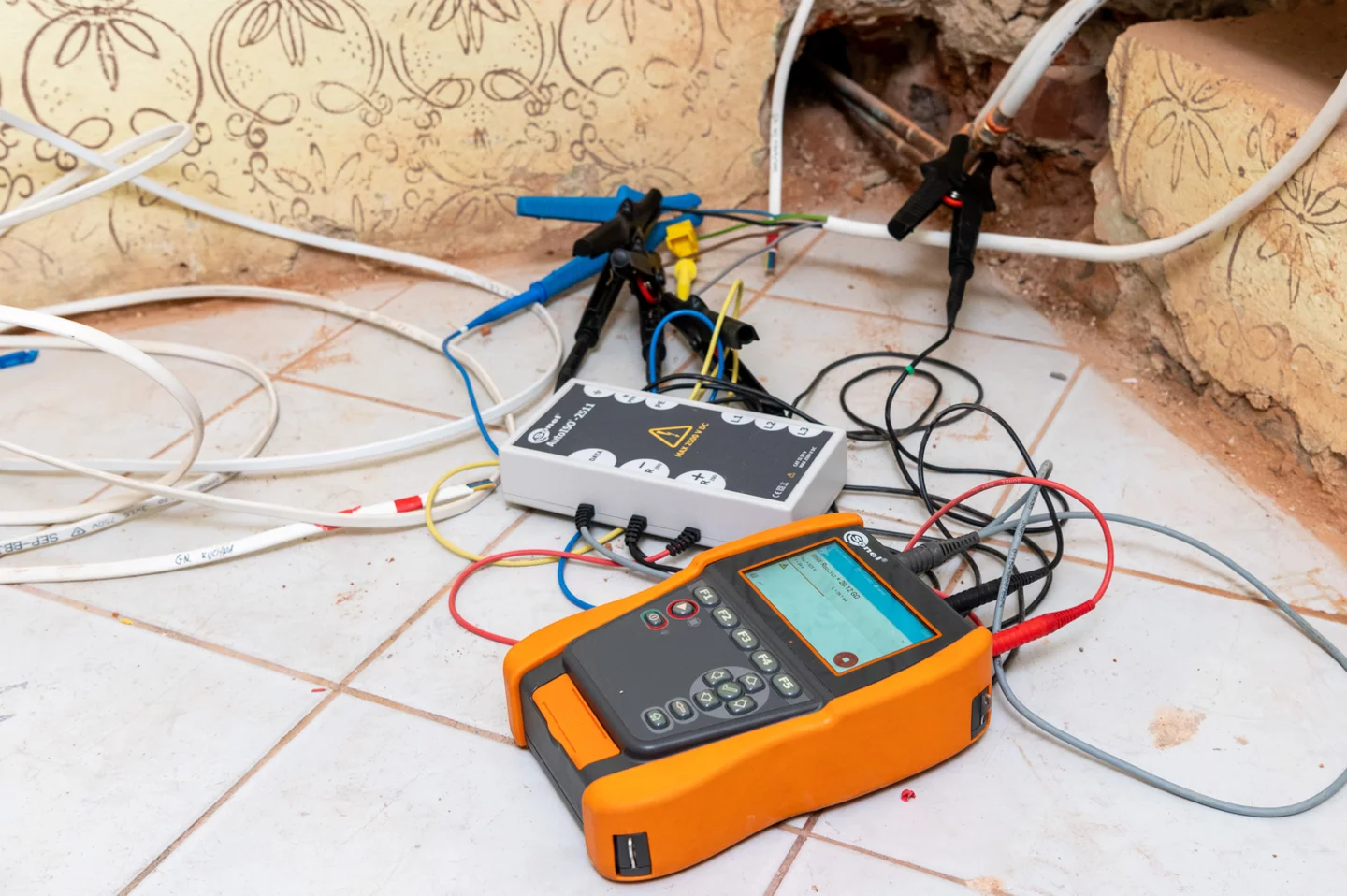

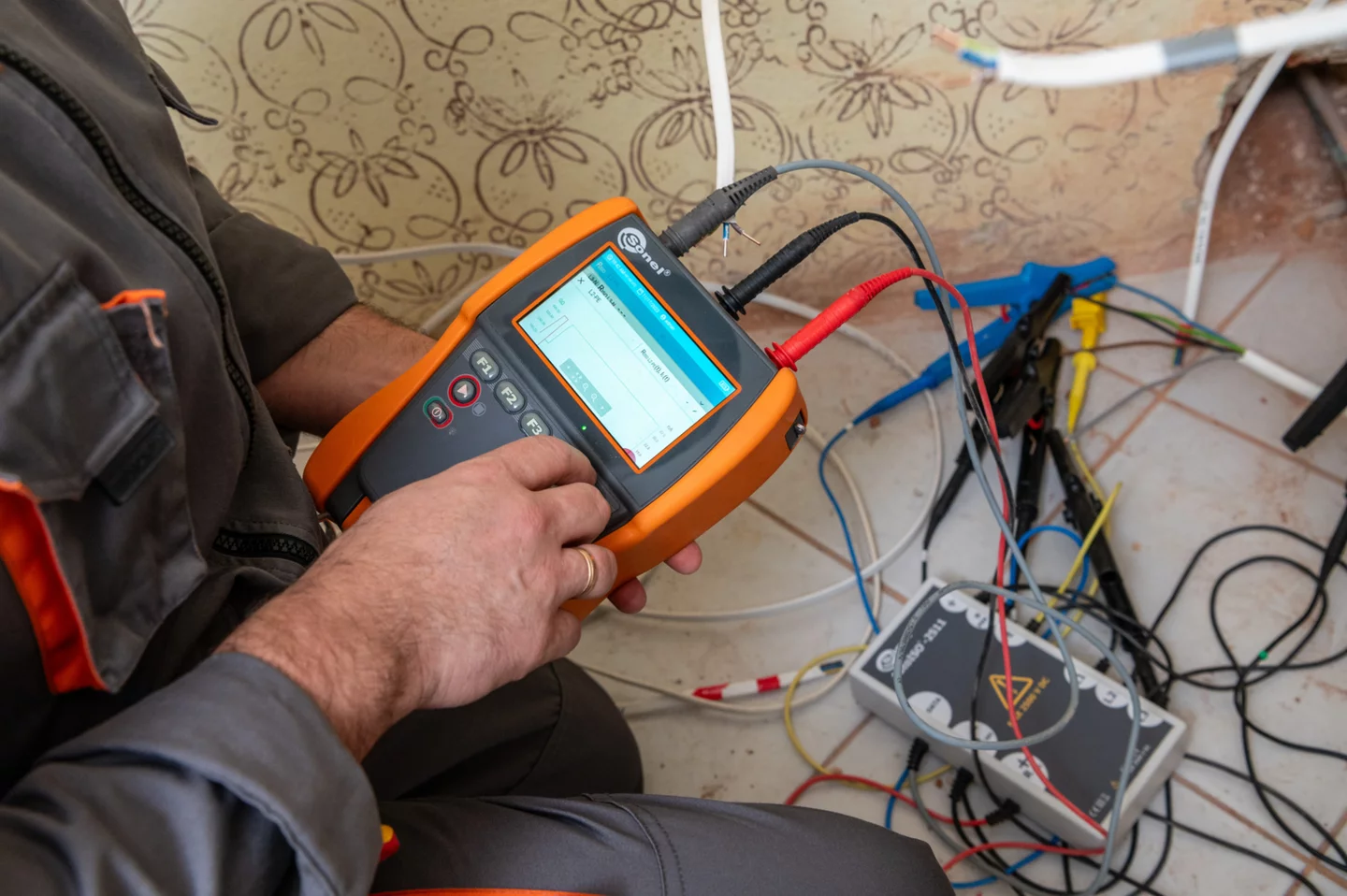

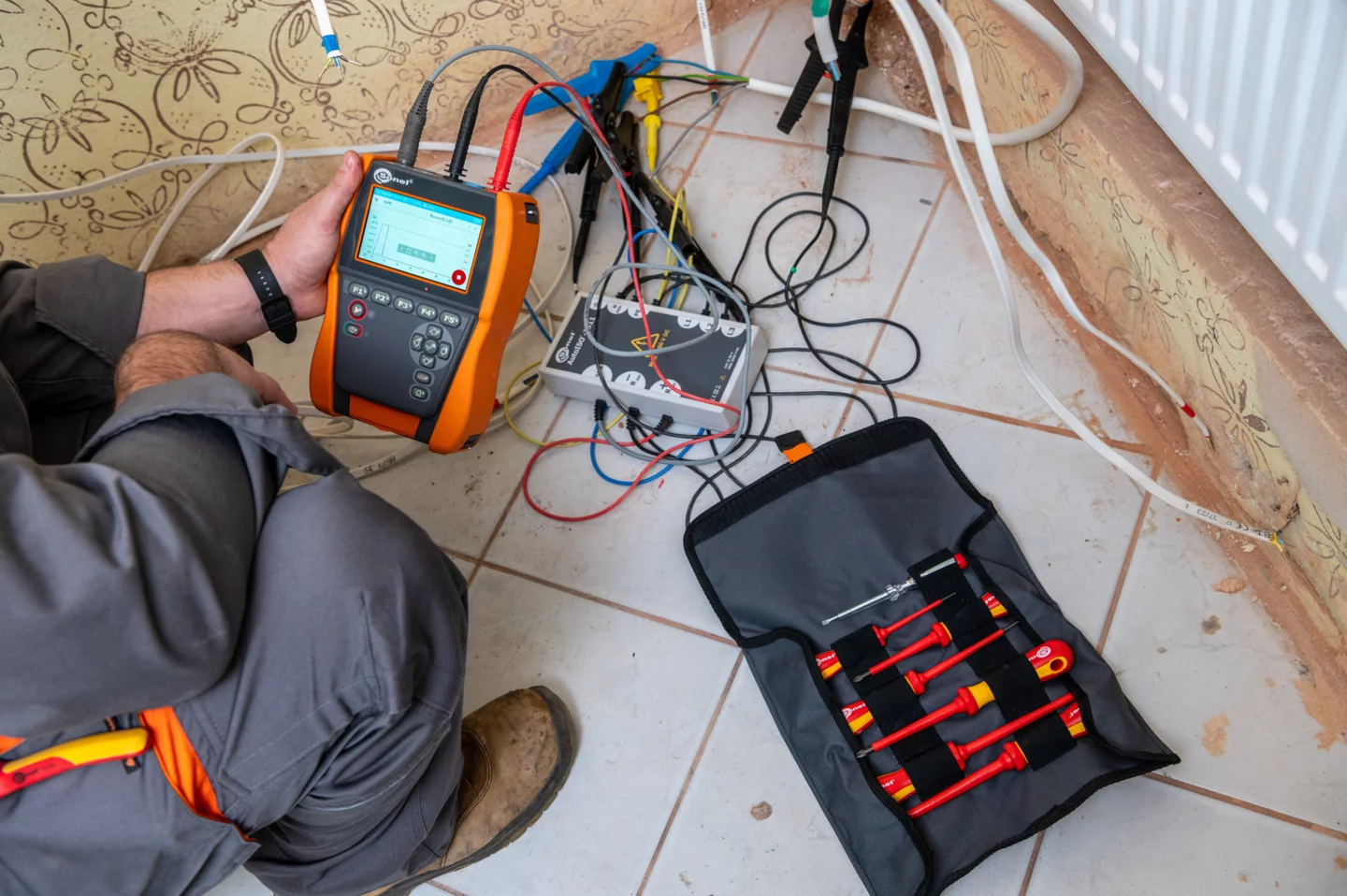

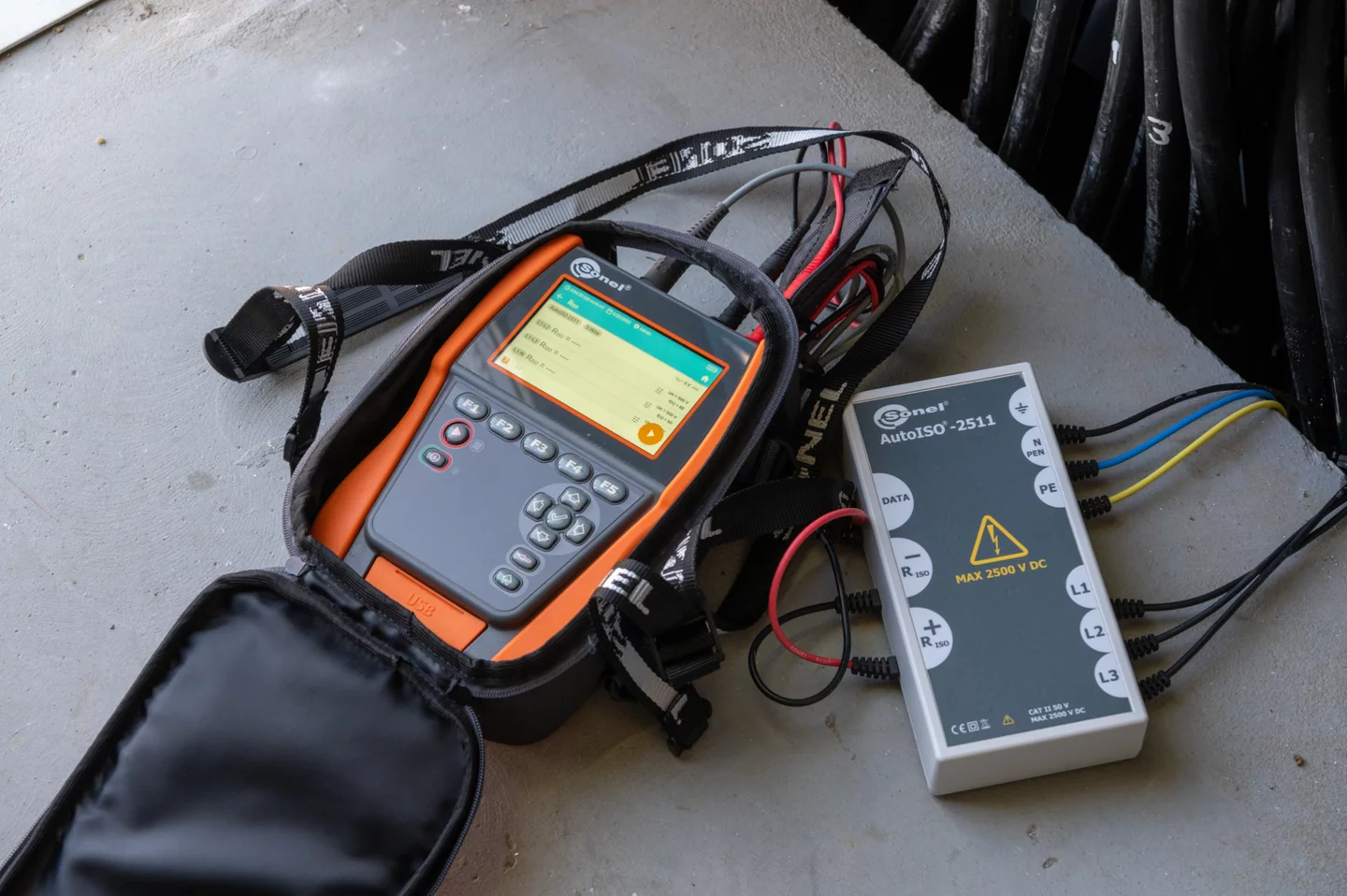

AutoISO-2511 adapter for automatic insulation resistance test of 3-, 4- and 5-conductor cables, without switching.

MIC-2511 allows user to measure the continuity of protective conductors and equipotential bondings with current exceeding 200 mA in both directions. The meter has a built-in voltmeter of AC and DC voltages in the range of up to 1500 V.

Extensive memory allows the device to record and send to a computer nearly 10,000 measurement results.

Built-in help system

The device has built-in help screens with measurement diagrams. Thanks to this you can easily and quickly check and make sure how to connect to a given system depending on the type of performed measurement.

Communication and software

You can easily transfer measurement data to your computer via USB port. In order to generate a report on measurements for electric shock protection, use Sonel Reports PLUS software. Saving the downloaded data to the simplest formats and printing is provided by free Sonel Reader software.

Insulation resistance measurement

Measurement range acc. to EN IEC 61557-2 for_ISOmin=U_ISOnom/I_ISOnom…≤ 2 TΩ (I_ISO=1.6 mA)

Range	Resolution	Accuracy
0.0...999.9 kΩ	0.1 kΩ	±(3% m.v. + 20 digits)
1.000...9.999 MΩ	0.001 MΩ	±(3% m.v. + 20 digits)
10.00...99.99 MΩ	0.01 MΩ	±(3% m.v. + 20 digits)
100.0...999.9 MΩ	0.1 MΩ	±(3% m.v. + 20 digits)
1.000...9.999 GΩ	0.001 GΩ	±(3% m.v. + 20 digits)
10.00...99.99 GΩ	0.01 GΩ	±(3% m.v. + 20 digits)
100.0...999.9 GΩ	0.1 GΩ	±(3% m.v. + 20 digits)
1.000...2.000 TΩ	0.001 TΩ	±(3% m.v. + 20 digits)

„m.v.” - measured value

Values of measured resistance depending on measurement voltage

Voltage U_n	Measurement range
10 V	10 GΩ
25 V	20 GΩ
50 V	50 GΩ
100 V	100 GΩ
250 V	250 GΩ
500 V	500 GΩ
1000 V	1.00 TΩ
2500 V	2.00 TΩ

DC and AC voltage measurement

Range	Resolution	Accuracy
0…1500 V	1 V	±(3% m.v. + 2 digits)

frequency range: 45…65 Hz

Capacitance measurement

Range	Resolution	Accuracy
0...999 nF	1 nF	±(5% m.v. + 5 digits)
1.00...9.99 μF	0.01 μF	±(5% m.v. + 5 digits)

Continuity test with current 200 mA

Measurement range acc. to EN IEC 61557-2: 0.10...999 Ω

Range	Resolution	Accuracy
0.00…19.99 Ω	0.01 Ω	±(2% m.v. + 3 digits)
20.0…199.9 Ω	0.1 Ω	±(2% m.v. + 3 digits)
200…999 Ω	1 Ω	±(4% m.v. + 3 digits)

Temperature measurement

Range	Resolution	Accuracy
-40.0…99.9°C	0.1°C	±(3% m.v. + 8 digits)
-40.0…211.8°F	0.1°F	±(3% m.v. + 16 digits)

Insulation resistance measurement in EPA areas

Range	Resolution	Accuracy
for U_n = 10 V
0.0…999.9 kΩ	0.1 kΩ	±(8% m.v. + 20 digits)
1.0…9.999 MΩ	0.001 MΩ	±(8% m.v. + 20 digits)
10.00…99.99 MΩ	0.01 MΩ	±(8% m.v. + 20 digits)
100.0…999.9 MΩ	0.1 MΩ	±(8% m.v. + 20 digits)
1.0…10.0 GΩ	0.1 GΩ	±(8% m.v. + 20 digits)
for U_n = 100 V
0.0…999.9 kΩ	0.1 kΩ	±(3% m.v. + 20 digits)
1.000…9.999 MΩ	0.001 MΩ	±(3% m.v. + 20 digits)
10.00…99.99 MΩ	0.01 MΩ	±(3% m.v. + 20 digits)
100.0…999.9 MΩ	0.1 MΩ	±(3% m.v. + 20 digits)
1.000…9.999 GΩ	0.001 GΩ	±(3% m.v. + 20 digits)
10.00…99.99 GΩ	0.01 GΩ	±(3% m.v. + 20 digits)
100.0…200.0 GΩ	0.1 GΩ	±(8% m.v. + 20 digits)
for U_n = 500 V
0.0…999.9 kΩ	0.1 kΩ	±(3% m.v. + 20 digits)
1.000…9.999 MΩ	0.001 MΩ	±(3% m.v. + 20 digits)
10.00…99.99 MΩ	0.01 MΩ	±(3% m.v. + 20 digits)
100.0…999.9 MΩ	0.1 MΩ	±(3% m.v. + 20 digits)
1.000…9.999 GΩ	0.001 GΩ	±(3% m.v. + 20 digits)
10.00…9999 GΩ	0.01 GΩ	±(3% m.v. + 20 digits)
100.0…999.9 GΩ	0.1 GΩ	±(8% m.v. + 20 digits)
1000 GΩ	1 GΩ	±(8% m.v. + 20 digits)
