Parameter | Value |
---|---|
Net weight (kg) | 0.4 |
Package weight (kg) | 2.3 |
Package width (cm) | 34 |
Package height (cm) | 17.5 |
Package length (cm) | 28 |

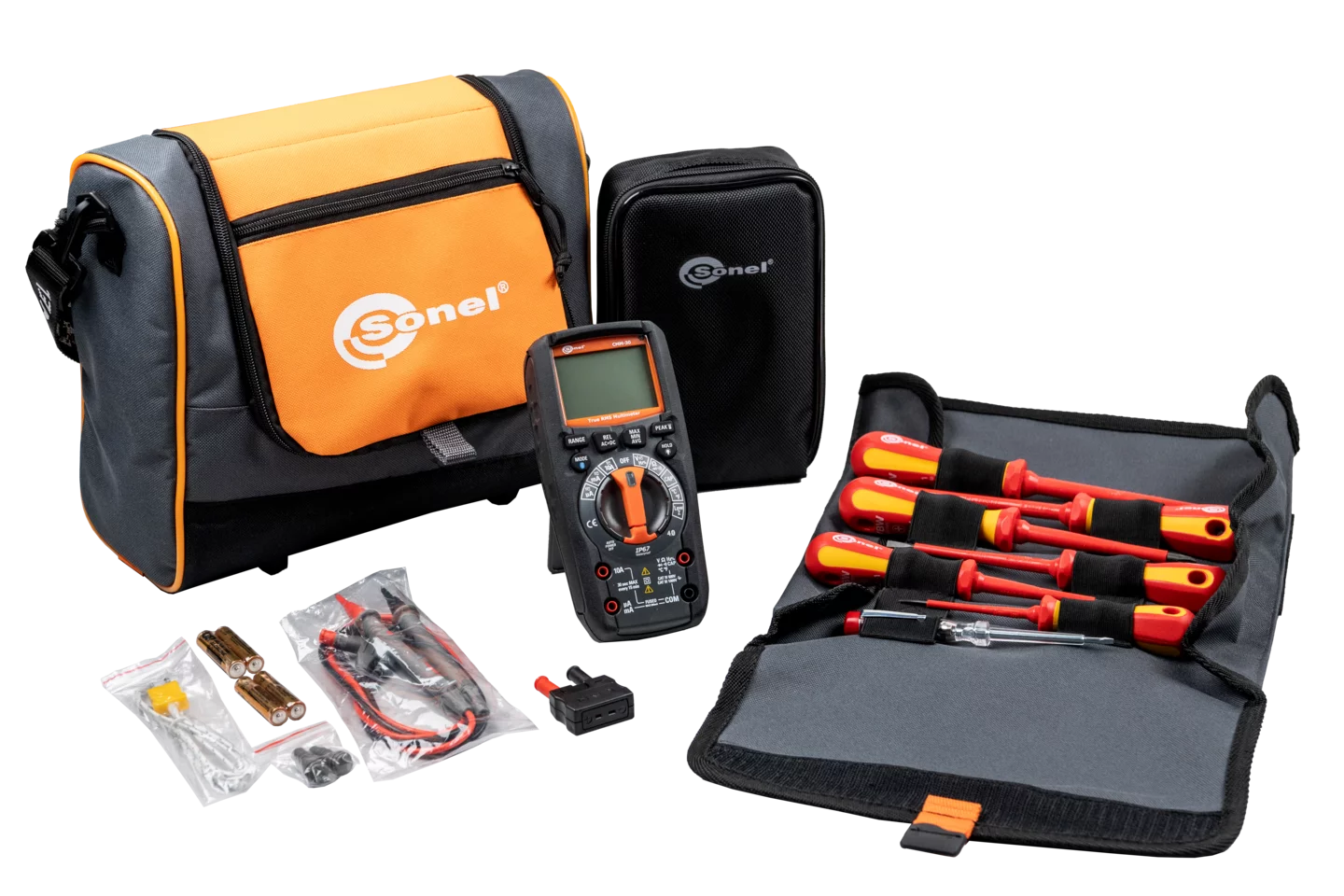

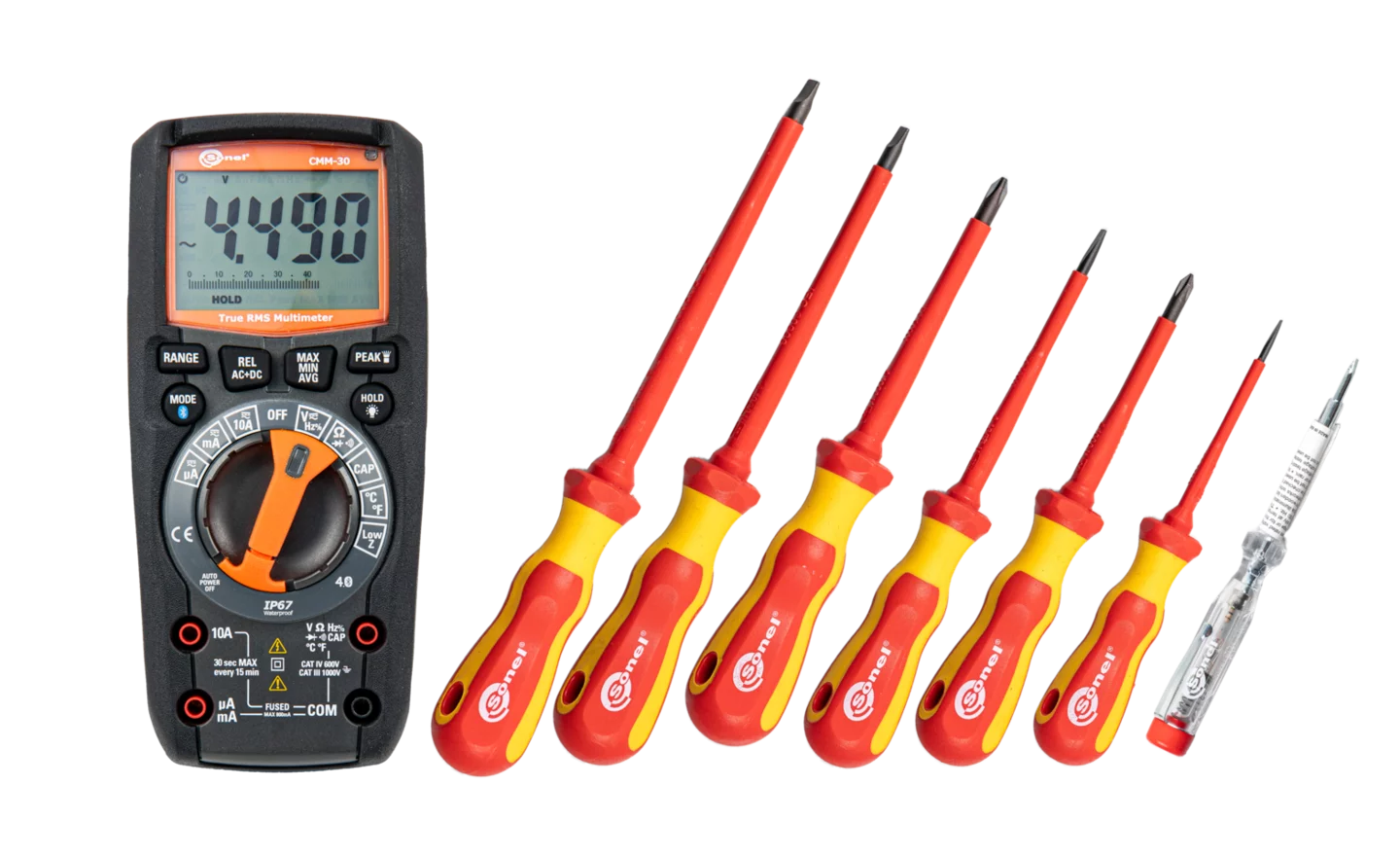

Essential kit for measurement technician
A set of measuring instruments with accessories. The set includes:
- Sonel CMM-30 industrial multimeter,
- Sonel NZ-2 screwdriver set, 6-pieces + voltage tester.
Capabilities
- CMM-30 | Measurement of voltage, current, resistance, Low Z, frequency, capacitance, duty cycle, temperature, continuity, diode test.
- NZ-2 | Assembly and disassembly of screw connections.
- NZ-2 | Detection of voltage presence.

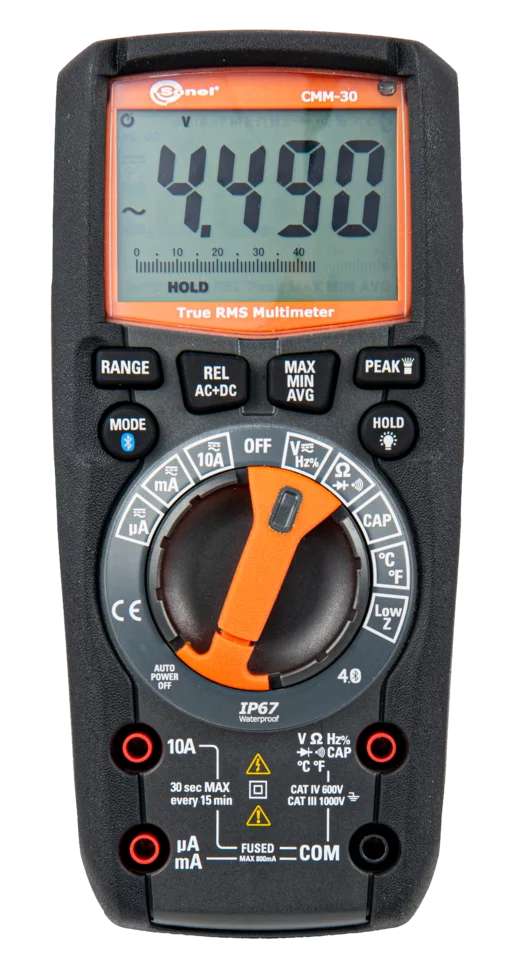

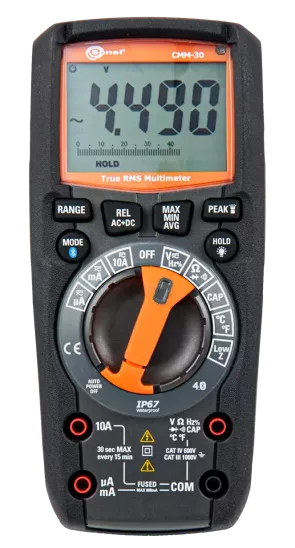

CMM-30
Industrial multimeter
Measurements
- AC & DC voltage.
- AC & DC current.
- Resistance.
- Capacitance.
- Duty cycle.
- Frequency.
- Diode and continuity test.
- Low Z.
Additional functions
- The AC + DC function allows you to simultaneously display the value of the constant and variable component or the sum of both components during voltage measurement
- True RMS for AC voltage and current allows to measure the effective value of distorted waveforms
- Function MAX MIN for displaying extreme values
- Function AVG for displaying average value
- The relative REL measurement
- Automatic and manual range selection
- HOLD function
- Built-in Bluetooth module for sending data to mobile devices with Android system
- Automatic backlight of the display, buttons and rotary switch
- Built-in flashlight for illuminating dark measurement places
- Auto-OFF function
- Hermetic (IP67) and reinforced housing resistant to shocks, covered with elastomer.

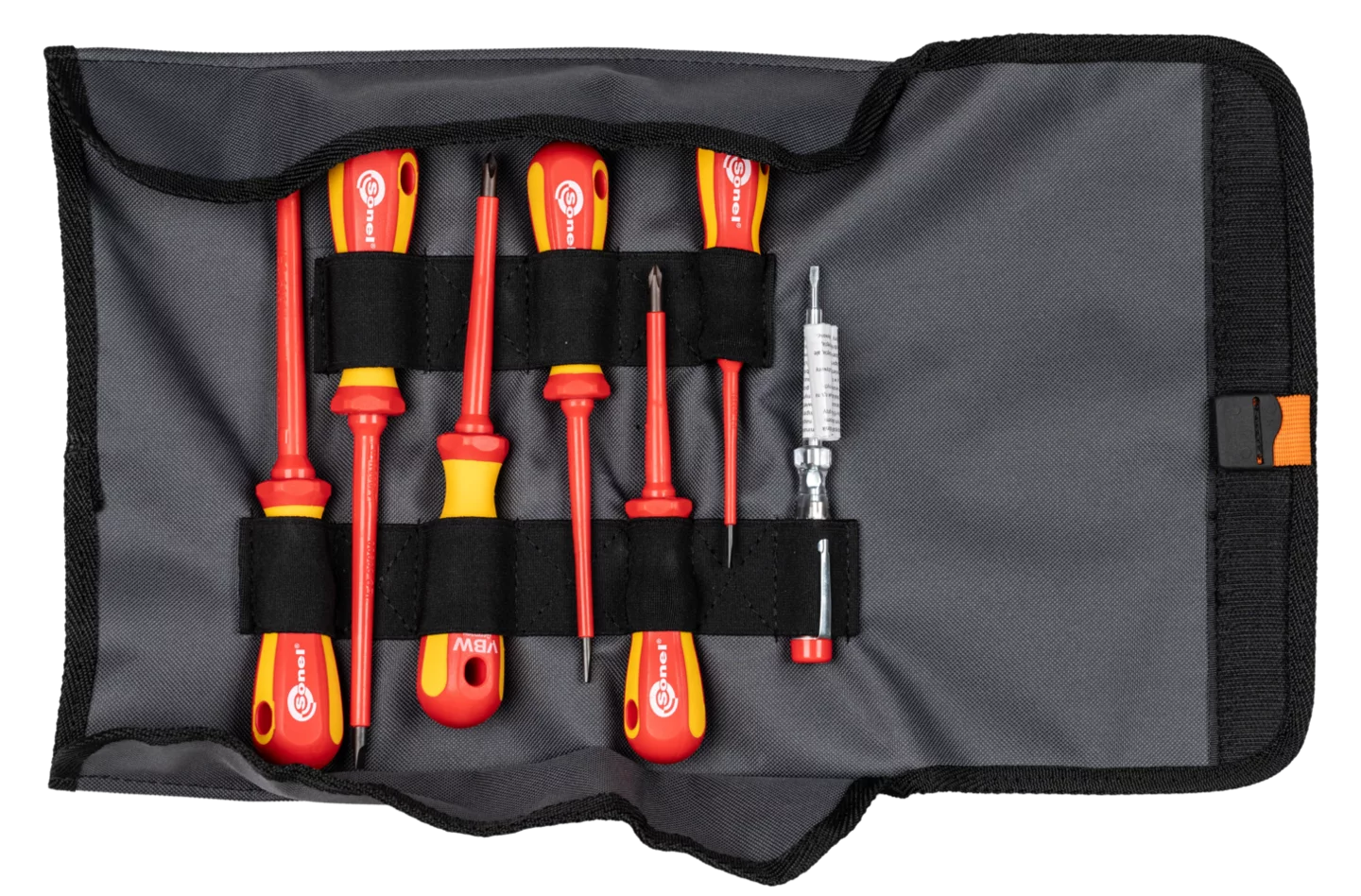

NZ-2
Screwdriver set, 6-pieces + voltage tester
Sonel screwdriver has a rugged shaft and handle connection. Ergonomically designed handle means powerful fatigue-free use and optimum torque transfer. Specially selected materials ensure excellent shock resistance of the handle. High-precision tips compatible with DIN EN ISO guarantee perfect screw fit.
The set consists of:
- 4x Flat-Head 223-1:
- 0.4x2.5x75
- 0.8x4.0x100
- 1.0x5.5x125
- 1.2x6.5x150
- 2x Phillips-Head 224-1:
- PH 1x80
- PH 2x100
- Voltage tester 120-250 V~
Accessories included with the meter
