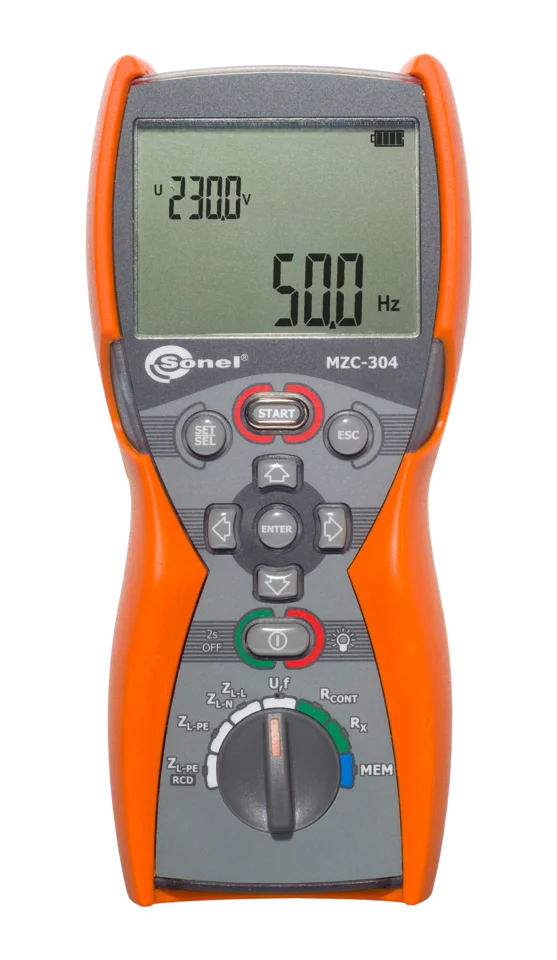

MZC-304
Fault Loop Impedance Meter

Name: Fault Loop Impedance Meter
Brand: Sonel
SKU: S49-WMGBMZC304
Price: 231232.8 INR
Availability: InStock

Index cat. WMGBMZC304

ean 5907624020221

Ingress protection: IP 67

Measurement category: CAT III 600 V, CAT IV 300 V

Data transmission: Bluetooth

Display: monochrome, backlit, segmented

231 232,80 ₹

Available

Delivery: up to 13 days

Inquiry for an offer

WS-01

Adapter with START button with UNI-SCHUKO p...

26 788,36 ₹

Available

AGT-16P

Three-phase socket adapter 16 A (5P)

25 511,60 ₹

Available

AGT-32P

Three-phase socket adapter 32 A (5P)

28 062,76 ₹

Available

Sonel Reports Plus

Software supports creation of documentation

572 300,00 ₹

Available

Test lead 10 m 1 kV (banana plugs) red

13 393,00 ₹

Available

Test lead 20 m CAT III/1000V CAT IV/600V (b...

14 669,76 ₹

Available

WS-07

Adapter for measuring Z(L-N)

12 118,60 ₹

Available

AGT-16C

Three-phase socket adapter 16 A (4P)

30 613,92 ₹

Available

AGT-16T

Industrial socket adapter 16 A

30 613,92 ₹

Available

AGT-32C

Three-phase socket adapter 32 A (4P)

34 441,84 ₹

Available

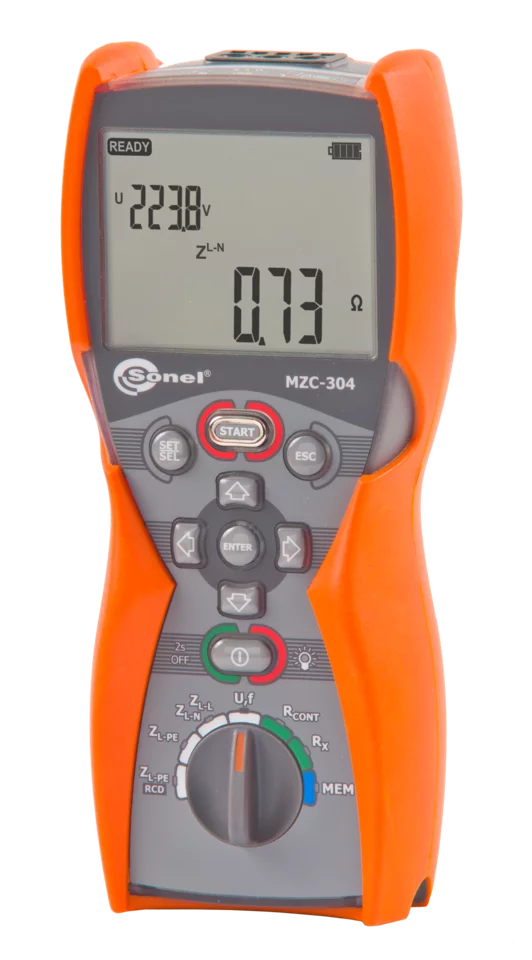

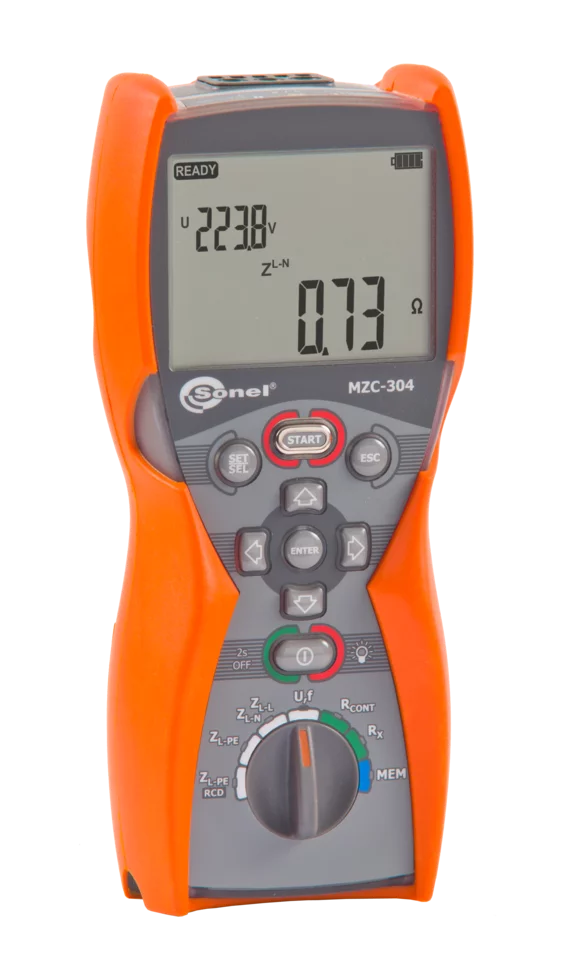

Measurement of fault loop and more

Get to know the Sonel MZC-304 compact short circuit loop impedance meter with many measurement functions.

The presented model is one of the smallest instruments available on the market intended for short circuit loop impedance measurements in 230/400 V networks and continuity of protective and equipotential connections measurements. The MZC-304 meter performs short circuit loop measurements with a resolution of 0.01 Ω, also in the case of measurements in networks protected with RCD switches. With a backlit keyboard and display, the device can be used even in low light. The device has a sealed casing with IP67 protection, which is characterised by excellent resistance and ensures smooth operation even under adverse environmental conditions.

The device meets the requirements set out in standard EN 61557.

Capabilities

Fault loop impedance measurement with 0.01 Ω resolution.
Low-current impedance measurement in circuits protected by RCD ≥ 30mA with 0.01 Ω resolution (range of 180...270 V)
Operates in networks with voltages 220/380 V, 230 V/400 V, 240/415 V (operating range 180...460 V)
Operating voltage range: 180…270 V (for Z_L-PE and Z_L-N) and 180…460 V (for Z_L-L).
Maximum measuring current: 7.6 A for 230 V (3x10 ms), 13.3 A for 400 V (3x10 ms).
Operating frequency 45…65 Hz
Calculation of I_k fault current.
Measurement with swapped L and N conductors.
Measurement of resistance (R_S) and reactance (X_S) components.
Low-voltage measurement of continuity of circuit and resistance.

Additional features

Contact electrode - quick testing of proper connection of PE conductor.
Voltage measurement 0...500 V.
Frequency measurement 45.0...65.0 Hz.
Memory of 990 measurement results, ability to transfer the data to a PC via Bluetooth.
Power supply: batteries (4 x LR14) or rechargeable batteries (4 x NiMH).

Application

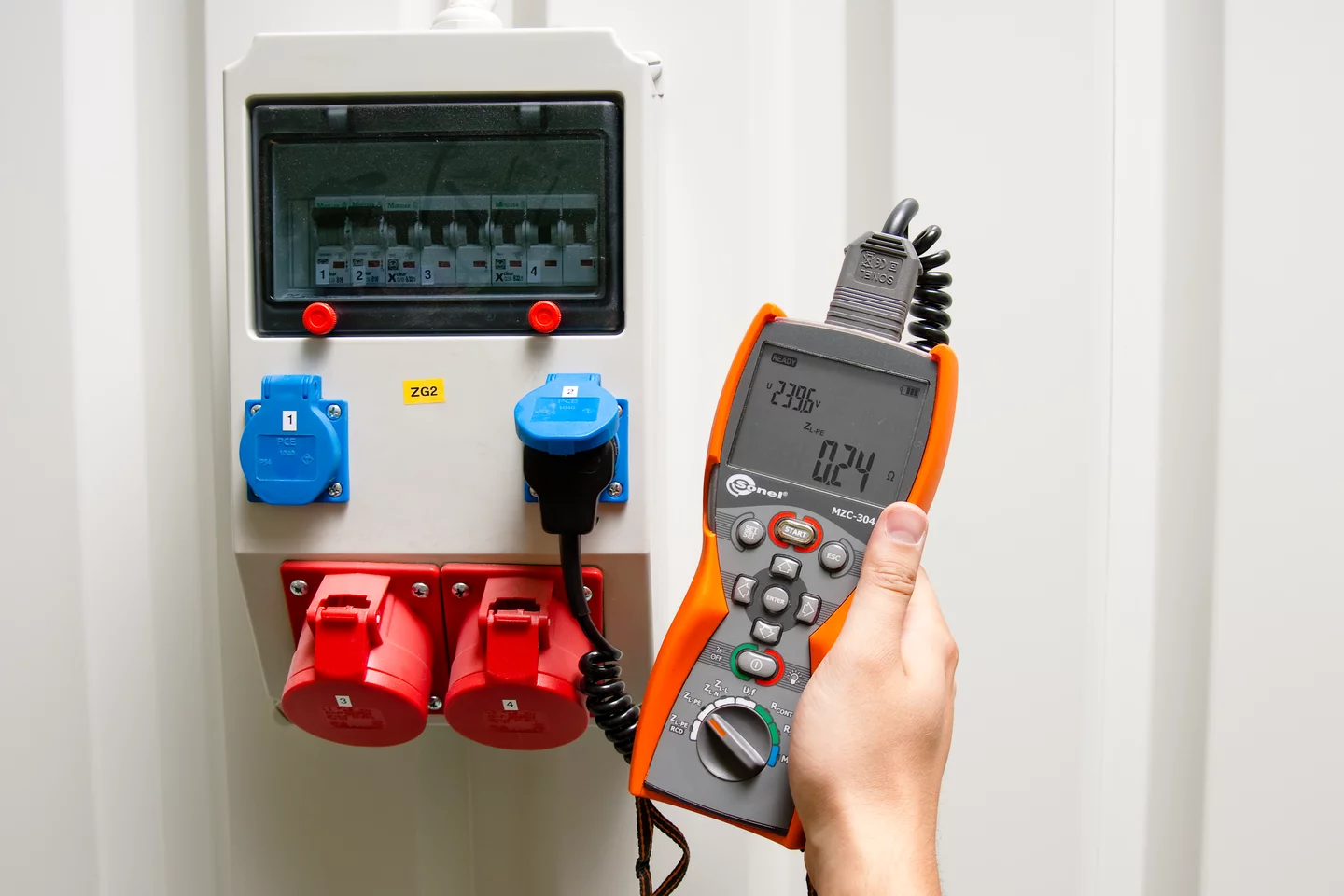

The instrument is dedicated to personnel performing measurements in single and multi-family buildings, office buildings, industrial plants and any other places equipped with low voltage electrical systems. In addition, the meter is intended for maintenance personnel working on objects, where fault currents reach 4.4 kA (measured according to EN 61557). MZC-304 is also a great tool for checking circuits additionally protected by residual current devices.

Measurement functions	Measurement range	Display range	Resolution	Accuracy
Voltage	0 V…500 V	0 V…500 V	from 0.1 V	from ±(2% m.v. + 2 digits)
Frequency	45.0 Hz…65.0 Hz	45.0 Hz…65.0 Hz	0.1 Hz	±(0.1% m.v. + 1 digit)
Short-circuit loop parameters
2p method - standard current measurement maximum current 13.3 A	from 0.13 Ω…1999 Ω acc. to EN 61557	0.00 Ω…1999 Ω	from 0.01 Ω	±(5% m.v. + 3 digits)
2p method - measurements without tripping RCDs	from 0.5 Ω…1999 Ω acc. to EN 61557	0.00 Ω…1999 Ω	from 0.01 Ω	from ±(6% m.v. + 5 digits)
Short-circuit current readings
2p method - standard current measurement	Calculated on the basis of test Z_S ranges and rated voltages	1.110 A…40.0 kA	from 0.001 A	Calculated on the basis of error for fault loop
2p method - measurements without tripping RCDs	Calculated on the basis of test Z_S ranges and rated voltages	1.110 A…24.0 kA	from 0.001 A	Calculated on the basis of error for fault loop
Measurement of continuity of protective conductors and equipotential bonding
Low-voltage measurement of continuity of circuit and resistance with ±200 mA current	0.12 Ω…400 Ω acc. to EN 61557-4	0,00 Ω…400 Ω	from 0.01 Ω	±(2% w.m. + 3 cyfry)
Measurement of resistance with low current	0.0 Ω…1999 Ω	0.0 Ω…1999 Ω	from 0.1 Ω	±(3% w.m. + 3 cyfry)
