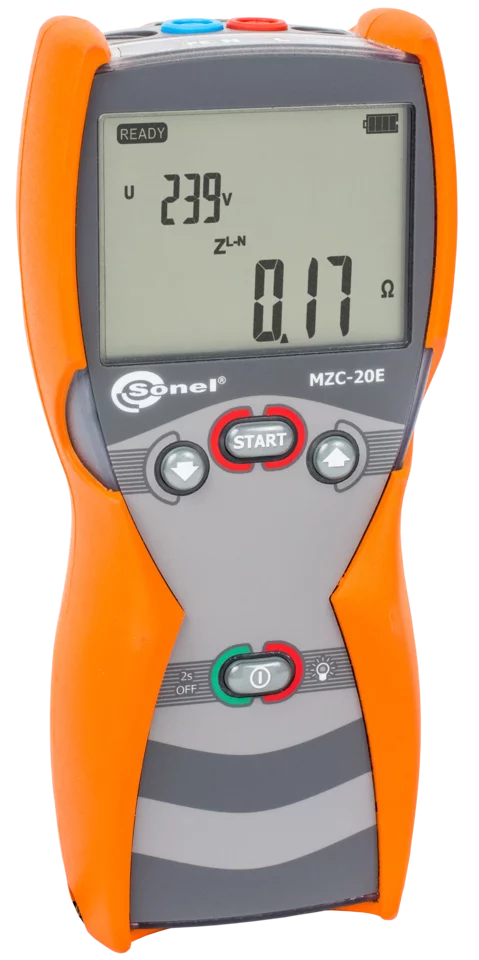

MZC-20E
Fault Loop Impedance Meter

Name: Fault Loop Impedance Meter
Brand: Sonel
SKU: S49-WMGBMZC20E
Price: 98327 INR
Availability: InStock

Index cat. WMGBMZC20E

ean 5907624024564

Ingress protection: IP 67

Measurement category: CAT III 300 V

Display: monochrome, backlit, segmented

98 327,00 ₹

Available

Delivery: up to 6 days

Inquiry for an offer

AGT-16P

Three-phase socket adapter 16 A (5P)

18 473,00 ₹

Available

AGT-32P

Three-phase socket adapter 32 A (5P)

20 444,00 ₹

Available

Test lead 10 m 1 kV (banana plugs) red

10 325,00 ₹

Available

Test lead 20 m CAT III/1000V CAT IV/600V (b...

12 390,00 ₹

Available

Test lead 5 m 1 kV (banana plugs) red

8 260,00 ₹

Available

AGT-16C

Three-phase socket adapter 16 A (4P)

21 683,00 ₹

Available

AGT-16T

Industrial socket adapter 16 A

22 302,00 ₹

Available

AGT-32C

Three-phase socket adapter 32 A (4P)

24 367,00 ₹

Available

AGT-32T

Industrial socket adapter 32 A

24 574,00 ₹

Available

AGT-63P

Three-phase socket adapter 63 A (5P)

45 637,00 ₹

Available

Pocket measurements

Simple and ergonomic short circuit loop impedance meter Sonel MZC-20E.

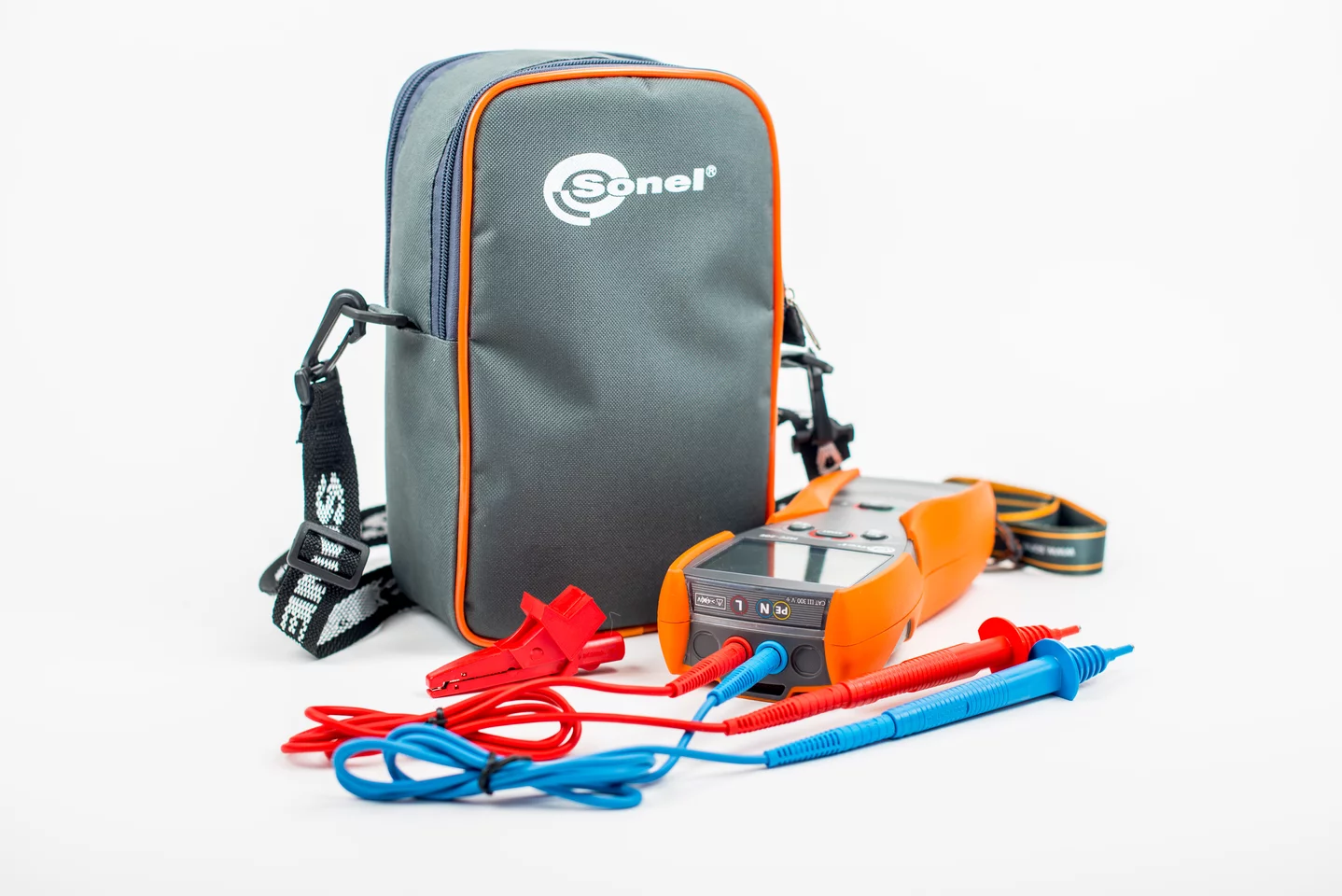

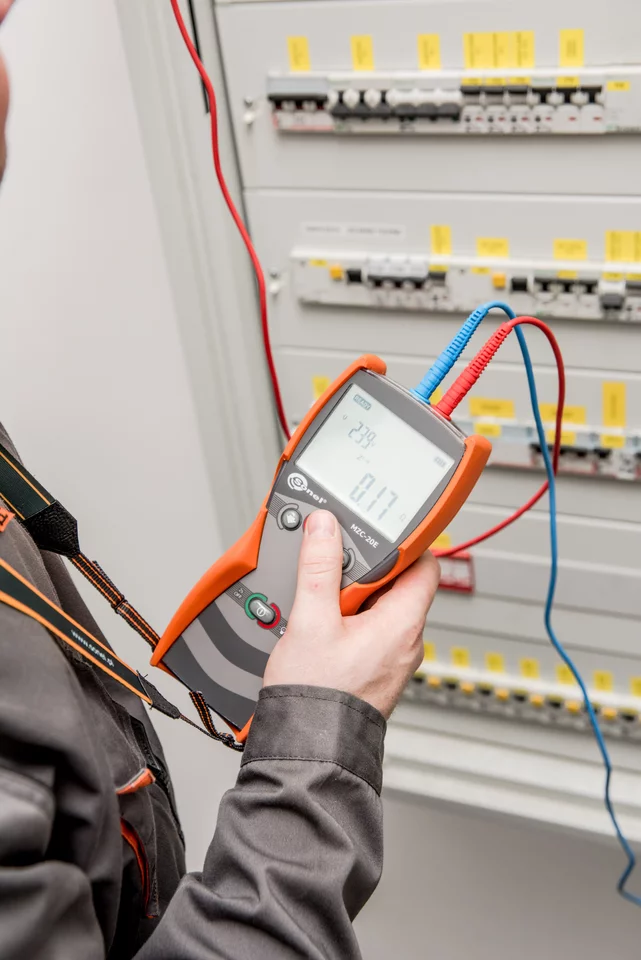

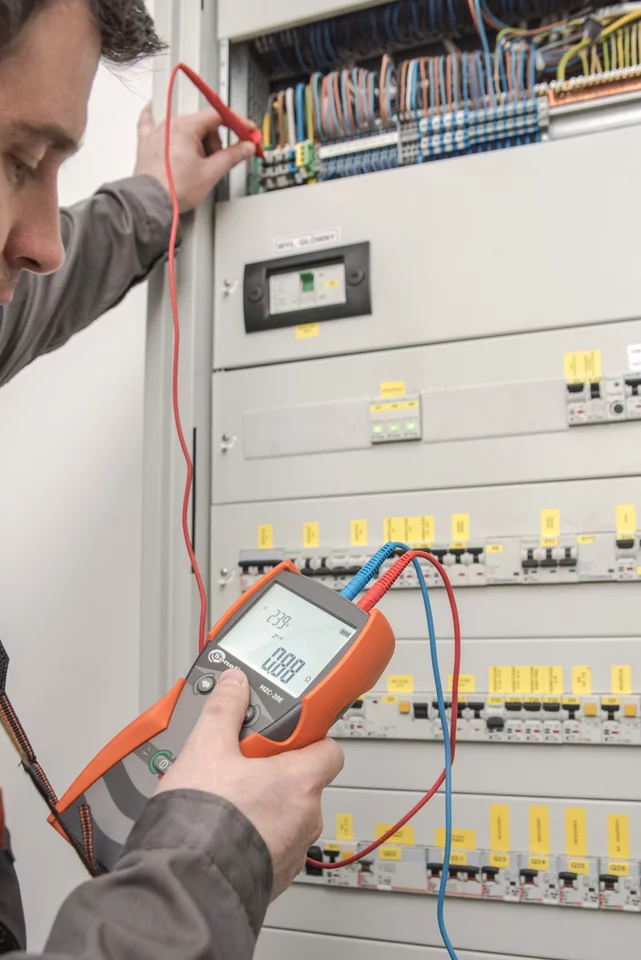

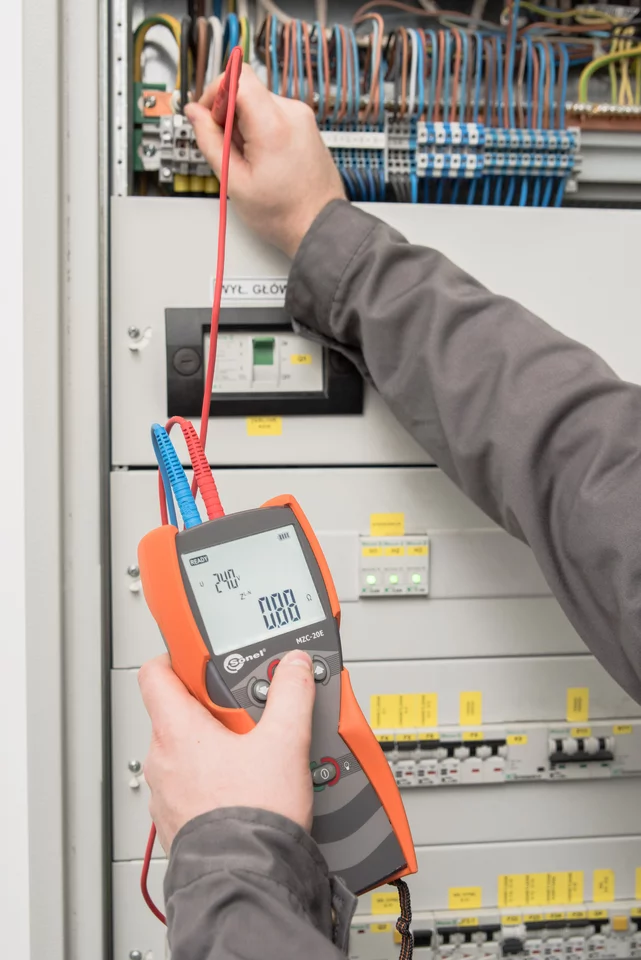

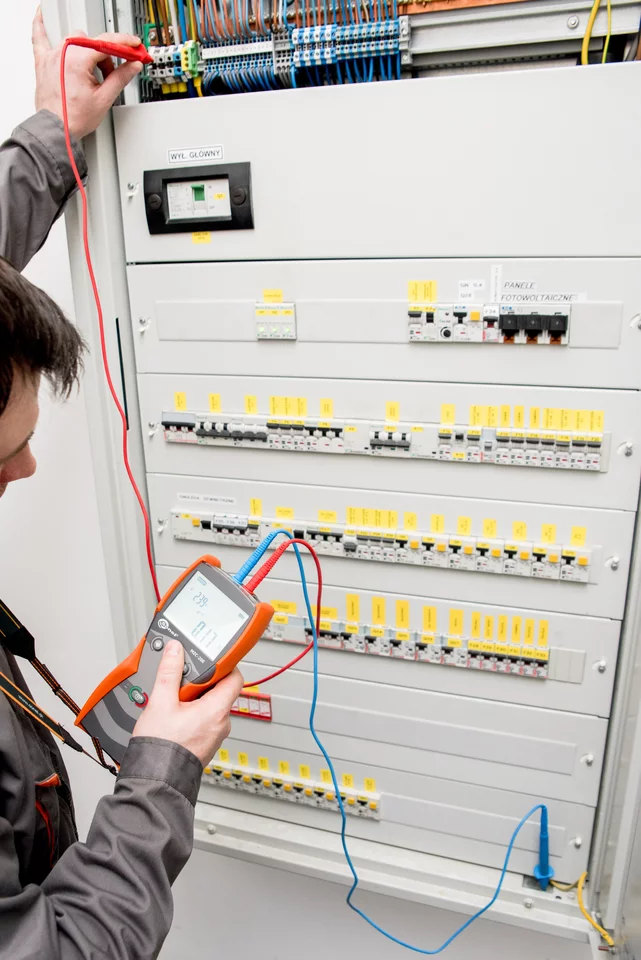

The small MZC-20E meter allows for precise measurement of short circuit loop impedance in networks of different voltage ratings. With the use of this instrument, it is possible to test network voltage up to 440 V. The device is especially useful for installers and measuring engineers providing services in single- and multi-family buildings, office buildings, industrial plants and other buildings and facilities equipped with low-voltage electrical installations. The MZC-20E meter is also perfect for electrical maintenance services. Regardless of the area of application, in each case it guarantees smooth operation and high accuracy of the results obtained. A further advantage of this tool is its ability to operate in adverse environmental conditions, which is made possible by its very robust casing. Despite its compact dimensions, the meter performs its role flawlessly and serves well wherever precise and instant measurements are required.

Capabilities

Fault loop impedance measurement with 0.01 Ω resolution.
Operates in networks with voltages 220/380 V, 230/400 V, 240/415 V (operating range 180…440 V).
Operating frequency 45…65 Hz
Calculation of I_k fault current.
Automatic differentiation between phase and phase-to-phase voltage.
Possibility of applying test leads: 1.2 m, 5 m and longer.
Measurement with swapped L and N conductors.
Measurement of resistance (R_S) and reactance (X_S) components.

Additional features

Voltage measurement 0...440 V AC.
Power supply: batteries (4 x LR6) or rechargeable batteries (4 x NiMH).

Application

This meter is designed for measurements on objects protected by circuit breakers with rating up to 63 A, where fault currents reach 1 kA, i.e. in housing industry, single and multi-family houses, office buildings, small factories and all other facilities that are equipped with low-voltage electrical systems. In addition, the meter is a useful tool for maintenance services.

Measurement functions	Measurement range	Display range	Resolution	Accuracy
Voltage	0 V…440 V	0 V…440 V	1 V	±(2% m.v. + 2 digits)
Short-circuit loop parameters
2p method - standard current measurement maximum current 26.7 A	from 0.24 Ω…200 Ω acc. to EN 61557	0.00 Ω…200 Ω	from 0.01 Ω	from ±(2.5% m.v. + 3 digits)
Short-circuit current readings
2p method - standard current measurement	Calculated on the basis of test Z_S ranges and rated voltages	1.15 A…40 kA	from 0.01 A	Calculated on the basis of error for fault loop
