| Parameter | Description |
|---|---|
| Acoustic parameters | |
| Number of microphones | 136 |
| Bandwidth | 2 kHz…100 kHz |
| Distance | 0.3 m…150 m | 1.0 ft…492 ft |
| Camera FOV | 50.2° x 35.4° |
| Sound intensity display | Peak Point, Center Point |
| Acoustic image frame rate | 25 fps |
| Signal noise ratio | 70 dB |
| Acoustic image resolution | 800 x 480 |
| Acoustic image palettes | 8 |
| Leak rate | >0.0047 l/min @ 6 bar from 0.5 m | 1.64 ft >0.0073 l/min @ 5 bar from 1 m | 3.28 ft |
| Image display | |
| Display | 800 x 480 px, 4.3” LCD, touchscreen |
| Digital zoom | 1.0x…8.0x |
| Screen brightness | Manual / Auto |
| Memory | |
| Storage media | Removable 64 GB SD card |
| Image storage capacity | 18 000 images |
| Video storage capacity | 60 hours |
| Video file format | MP4 |
| Annotations | Voice note: max. 60 seconds Text note: max. 200 characters |
| Power supply system | |
| Power supply | 5 V DC/ 2 A (charging via USB) |
| Battery type | Dismountable and rechargeable Li-Ion battery |
| Battery operating time | Approx. 3.5 hours |
| Battery charging time | 5 hours to full charge |
| Communication | |
| Wi-Fi | 802.11 b/g/n (2.4 GHz and 5 GHz) |
| USB interface | USB Type-C |
| HDMI interface | HDMI-D |
| Environmental conditions | |
| Protection level | IP40 |
| Operating temperature | -20°C…50°C | -4°F…122°F |
| Storage temperature | -20°C…60°C | -4°F…140°F |
| Relative humidity | <95% without condensation |
| Drop test height | 1.2 m | 3.94 ft |
| Safety | IEC 61010-1 |
| EMC | EN 55032, EN 50130-4, EN IEC 61000-3-2, EN 61000-3-3 |
| Weight | Approx. 940 g | 2.07 lb |
| Dimensions | 292 x 127 x 111 mm | 11.5” x 5.0” x 4.4” |
| Tripod mounting | UNC ¼”-20 |
0
Login
See the sound and save money

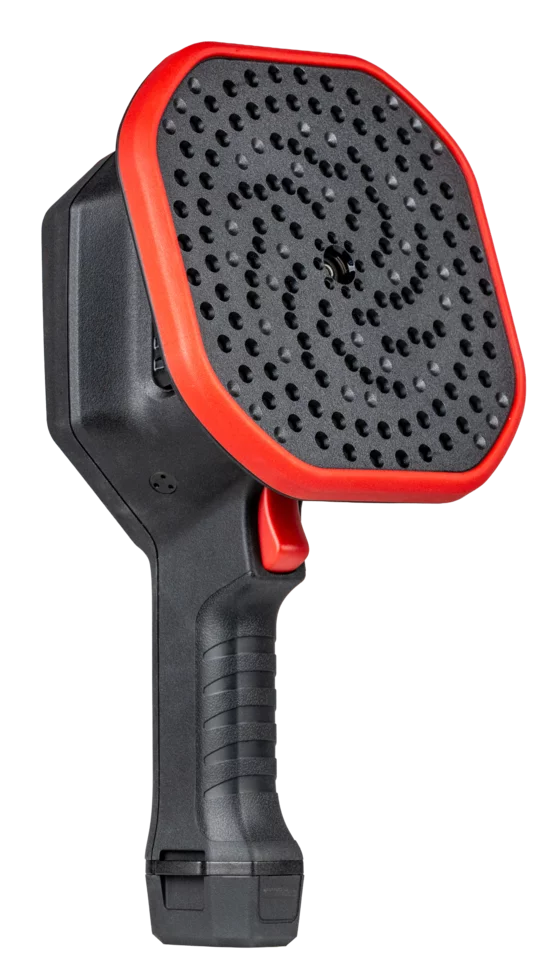

Sonel KUS-200 acoustic imager is a vital diagnostic tool, allowing significant savings by reducing energy losses.

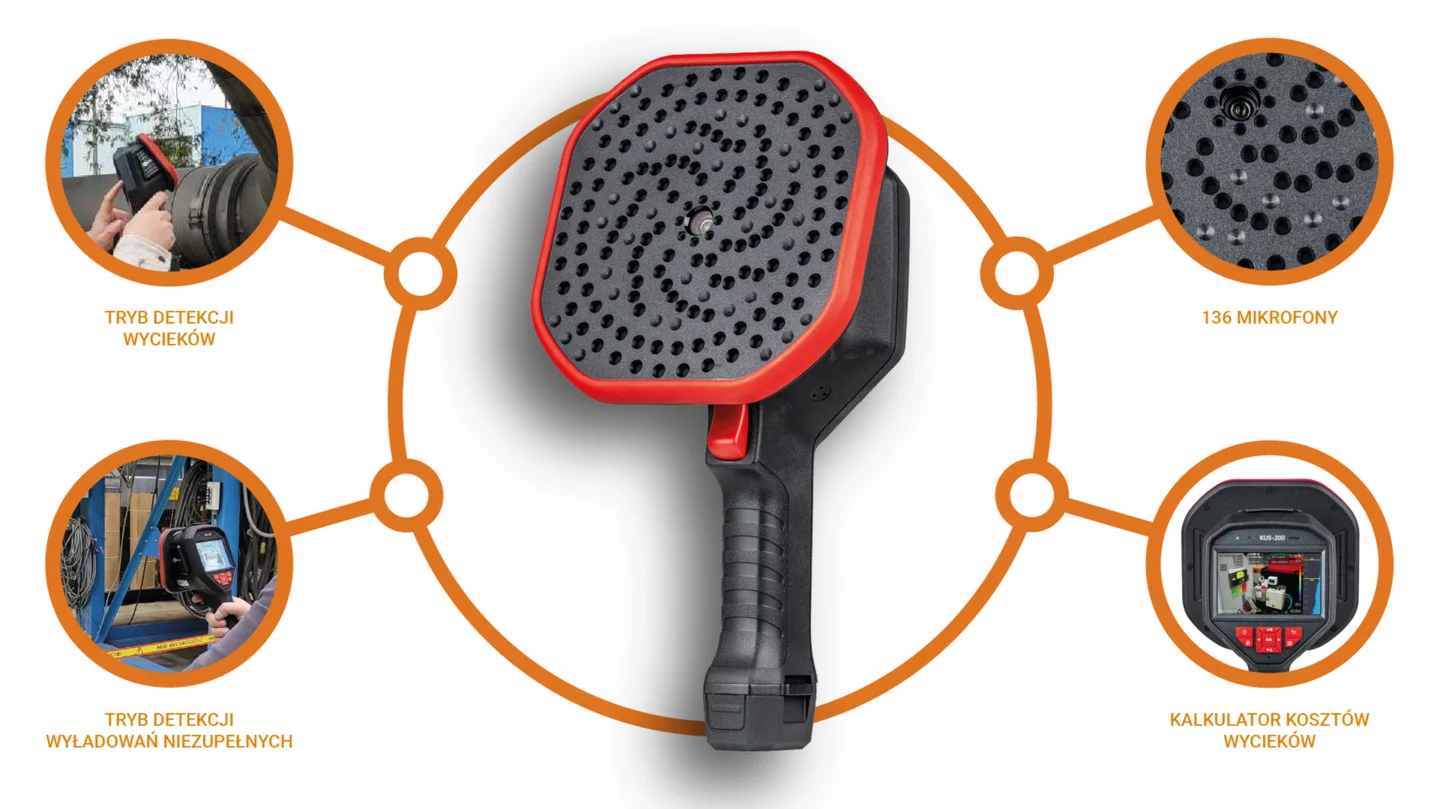

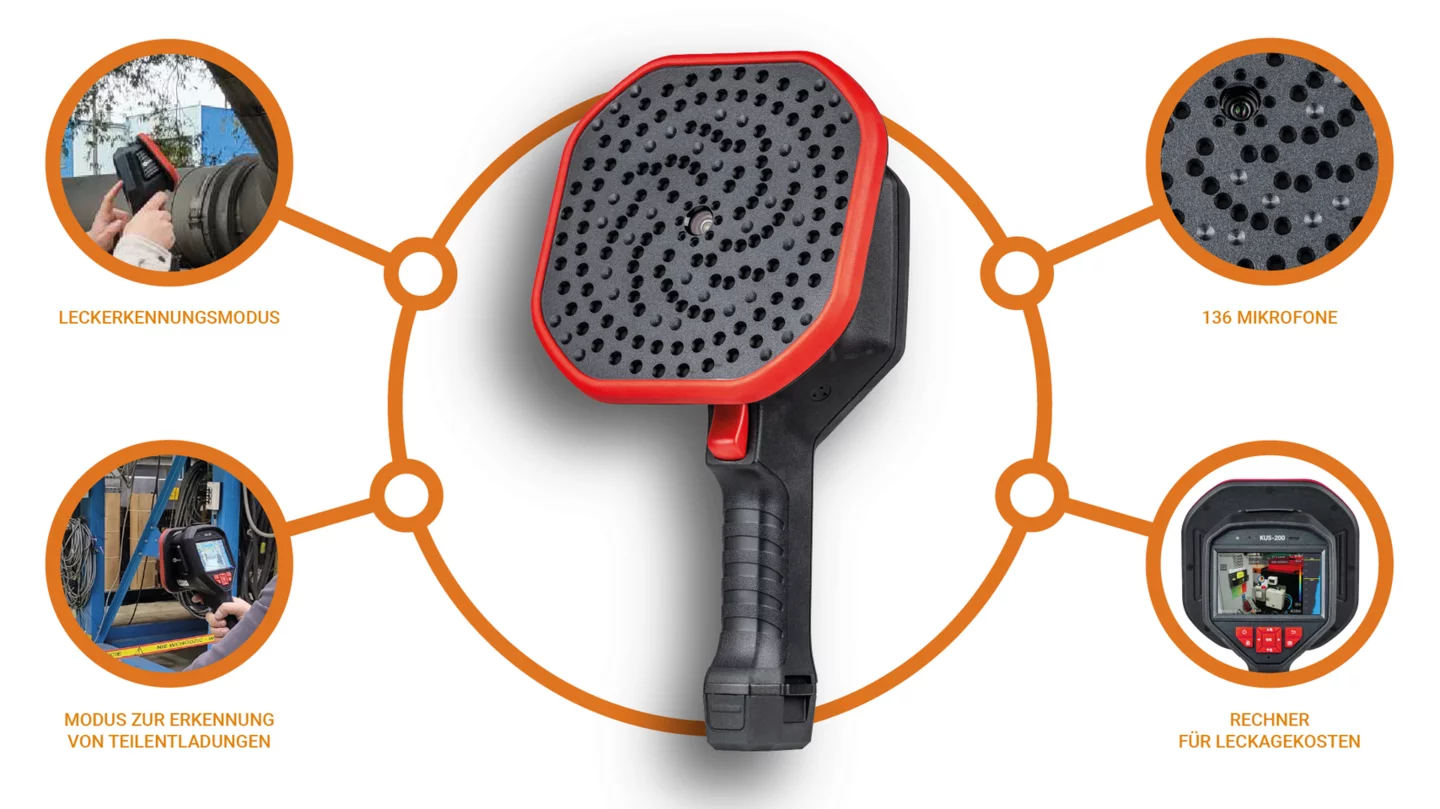

The imager operates in two detection modes: leakage and partial discharge. It has the ability to manually tune the detected frequencies and change the sensitivity level to avoid unwanted reflections and interference.

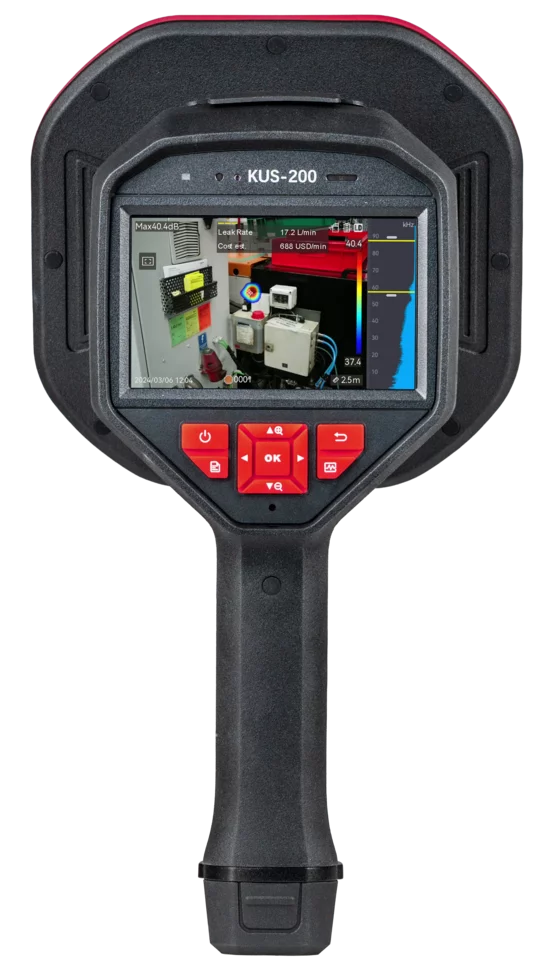

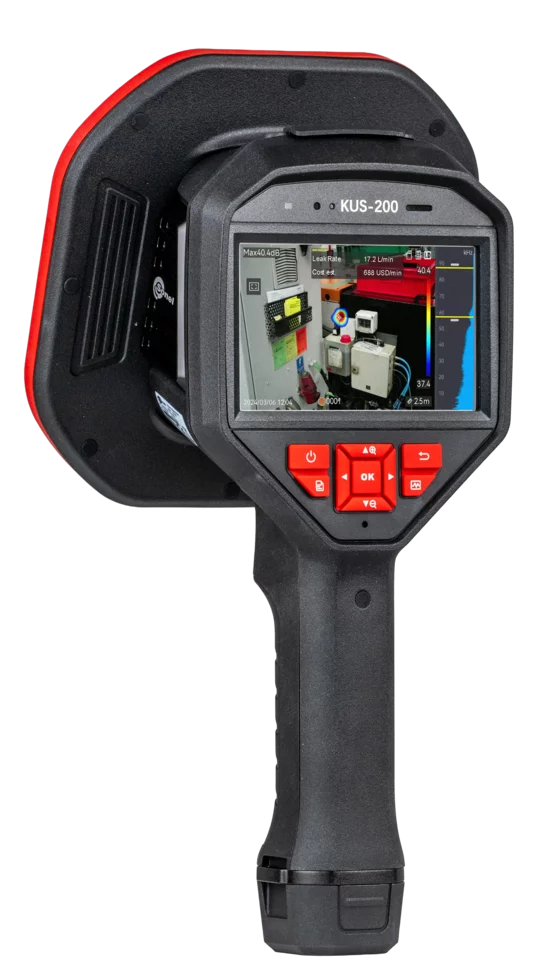

Comfort of use is improved by a touch screen and a convenient strap mounted to the housing. Thanks to Bluetooth communication, the camera's sounds can be output to an external audio device (speaker or wireless headphones).
Applications

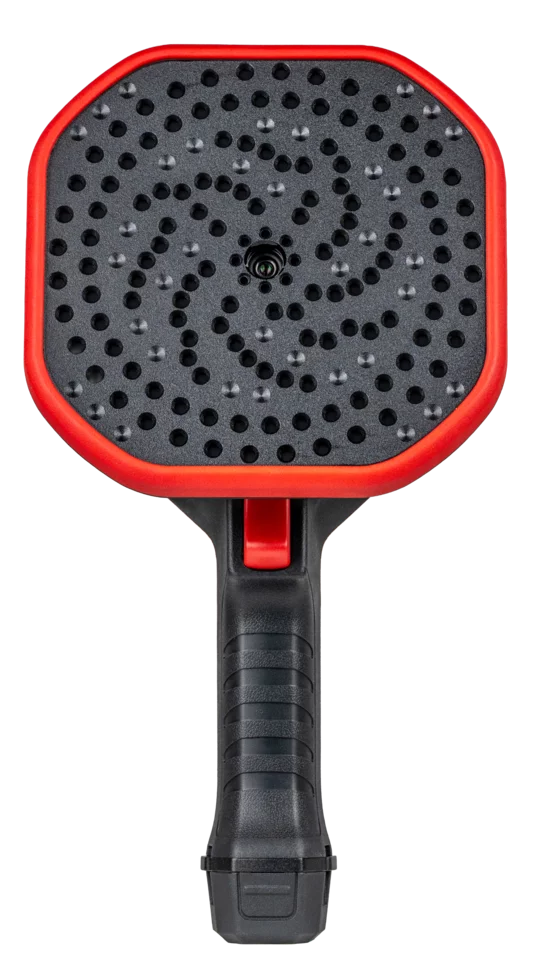

With the help of a built-in microphone array (136 microphones) the imager effectively detects sources of acoustic emission such as leaks of compressed agents in industrial installations or partial discharges in the power utility industry. It is suitable for use in the following areas:
- diagnostics of high-voltage devices,
- leak detection in gas installations,
- inspection of compressed air systems.
The device estimates and displays leak rate, level and possible cost for reference according to the set time unit, unit price, and currency.
| Parameter | Value |
|---|---|
| Package weight (kg) | 6 |
| Package width (cm) | 50.5 |
| Package height (cm) | 41 |
| Package length (cm) | 25.5 |
